B. Vent Components Diagrams (continued)

DVP-HRC-SS

DVP-HRC-ZC-SS

HORIZONTAL TERMINATION CAP

13 in.

(330 mm)

15 in.

(381 mm)

8-1/8 in.

(206 mm)

10-7/8 in.

276 mm

10-1/2 in.

267 mm

87°

Effective Length

5-3/4 to 8-3/8 in.

146 to 213 mm

5-1/2 in.

140 mm

8-3/8 in.

213 mm

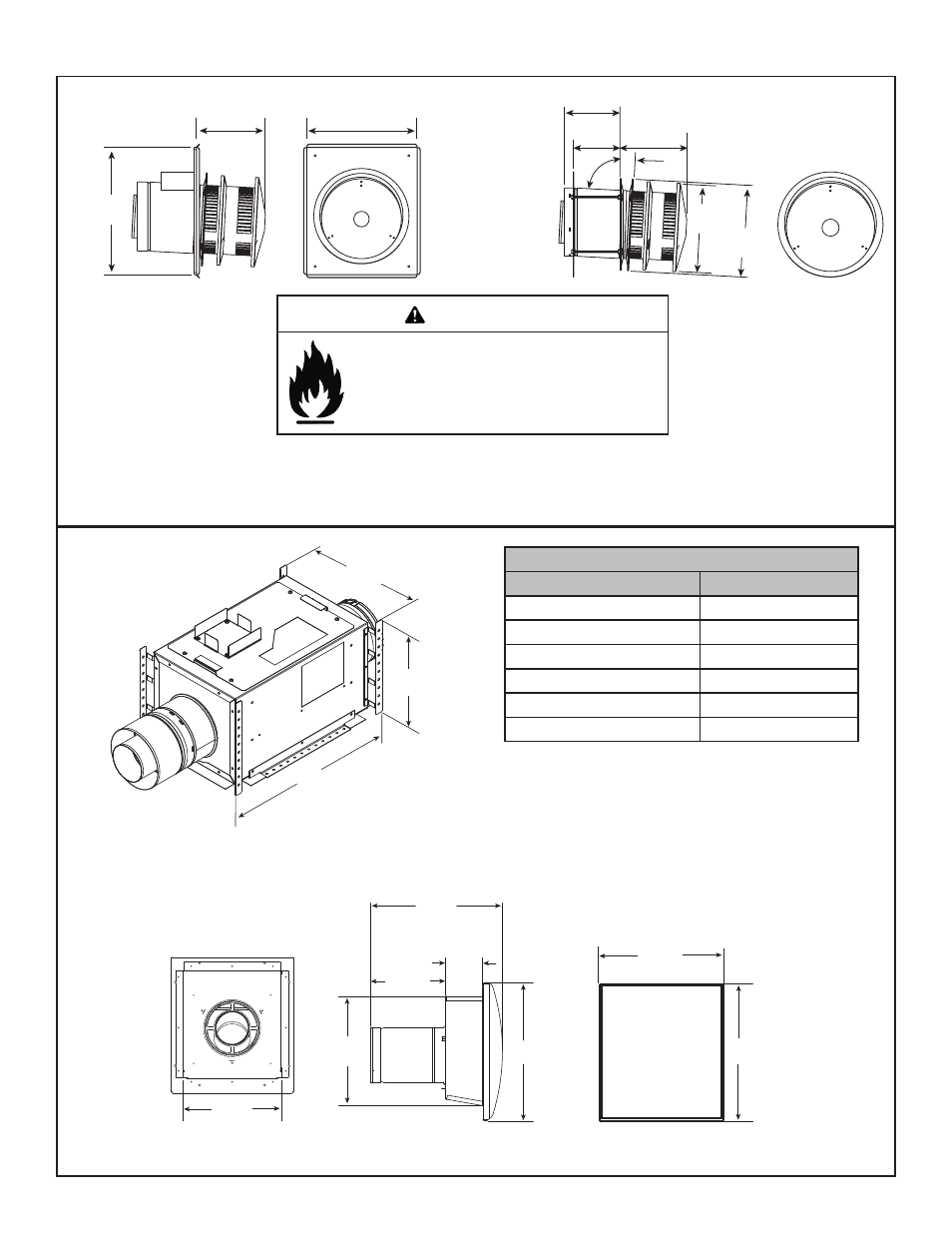

Figure 16.7 Vent Components

Fire Risk.
• When using DVP-HRC-SS and DVP-HRC-ZC-

SS termination caps on top vented fireplaces, a
6 inch minimum vertical vent section is required
before installing first elbow.

WARNING

Optional Wire Harness

DESCRIPTION

PART NUMBER

10 ft. PV Wire Harness

PVI-WH10

20 ft. PV Wire Harness

PVI-WH20

40 ft. PV Wire Harness

PVI-WH40

60 ft. PV Wire Harness

PVI-WH60

80 ft. PV Wire Harness

PVI-WH80

100 ft. PV Wire Harness

PVI-WH100

PVI-SLP

Power Vent Inline

SLP-LPC

SLP Low Profile Cap

Note: Wire harnesses required to power the PVI-SLP

connect to the appliance and are ordered separately

from PVI-SLP. Contact your dealer to order.

16 in.

406 mm

15 in.

(381 mm)

16-11/16 in.

(424 mm)

9-3/16 in.

(233 mm)

4-1/2 in.

114 mm

16-11/16 in.

424 mm

13-5/8 in.

(346 mm)

12-1/2 in.

(318 mm)

12-1/2 in.

318 mm

20-3/4 in.

527 mm

13-5/8 in.

346 mm
