7 598-1233-03
AdJuSTmENTS
TImE
There are 6 preset selections for the amount of
time the lights stay on: Test (5 seconds), 1, 5, 10,
15, and 25 minutes. Use a small, phillips screw
driver to adjust the TIME control (see Figure 7).
Turn the TIME control until it “snaps” into the
desired time position.
COmpLETINg
INSTALLATION
1. Replace control panel cover and attach the deco-
rative wall plate (see Figure 4). In installations
where the Heath
® /Zenith motion sensor switch
is combined with other switches or outlets on
an expanded box, you will need to purchase a
combination wall plate. Various combination
wall plates are available at home centers and
electrical supply stores.
2. Push the ON/OFF button. Verify the switch turns
on the lights and the top LED is on.
3. Push the ON/OFF button again and verify the
lights turn off and the top LED is off.
4. Push the ON/OFF button again to turn lights and
sensor on. Leave the room or stay completely
still for the amount of time you selected for
the lights to stay on. Verify the lights turn off
at the desired time.

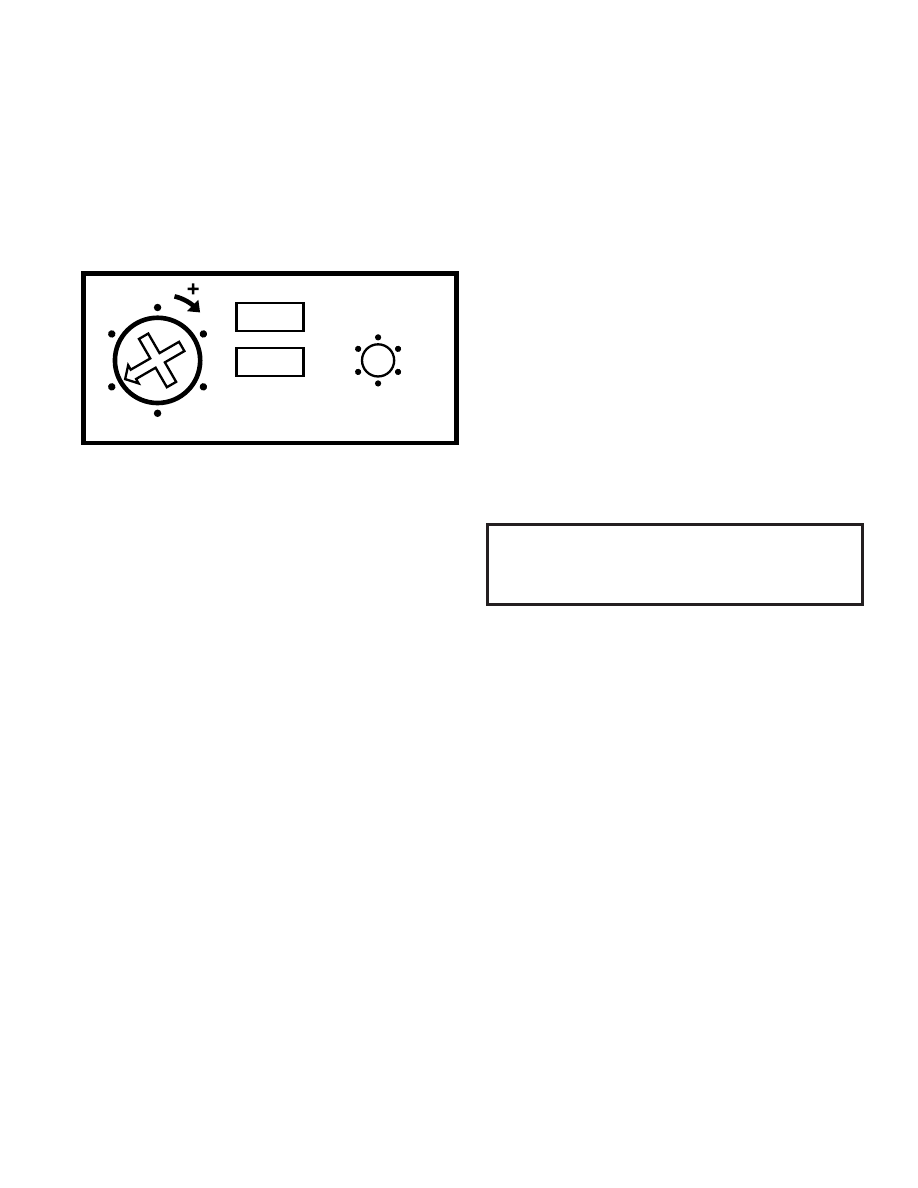

Figure 7 - Control Panel
T I M E
5
25
10
15
1
Test
SpECIFICATIONS
Electrical Input ................................................................................................................120V, 60 Hz.
Fluorescent* Load .....................................................30 Watts minimum, Up to 400 Watts Maximum
Motor Load ....................................................................................................Up to 1/8 HP Maximum
Incandescent .......................................................................... Up to 500 Watts Maximum at 120VAC
On-Time ............................................................. Selectable, approximately 5 seconds to 25 minutes
Coverage ................................. up to 15 ft. (4.6 m) at 180°, up to 30 ft. (9.1 m) in front of the sensor
*Designed for use with standard 3 ft./30 watt and 4 ft./40 watt rapid-start fluorescent tubes.
Note: The motion sensor requires a 2
second delay when switching off and
on using the ON/OFF button.
