Heath Zenith Motion Sensor 3-Way Wall Switch 6108 - Manual (Page 4)

4 598-1233-03
replace Other Switch
Remove and disconnect the old switch. Note: If you
can not tell which wire is common, etc., connect
the wires in the following steps as best you can,
then follow the test on the next page. The following
steps are in the same order as the numbers in the
wiring diagram (see Figure 3).
1. Connect the green motion sensor wire to the
house ground wire.
2. Connect the brown motion sensor wire to
the jumpered wire coming from the remote
switch.
3. Connect the red motion sensor wire to the
non-jumpered wire coming from the remote
switch.
4. Connect the black motion sensor wire to the
common wire removed from the replaced
switch.
IMPORTANT: Before installing sensor into
junction box, make sure there is no wire exposed
at each connection.
5. Mount sensor into junction box using two large
mounting screws provided (see Figure 4).
6. Turn the circuit breaker on.

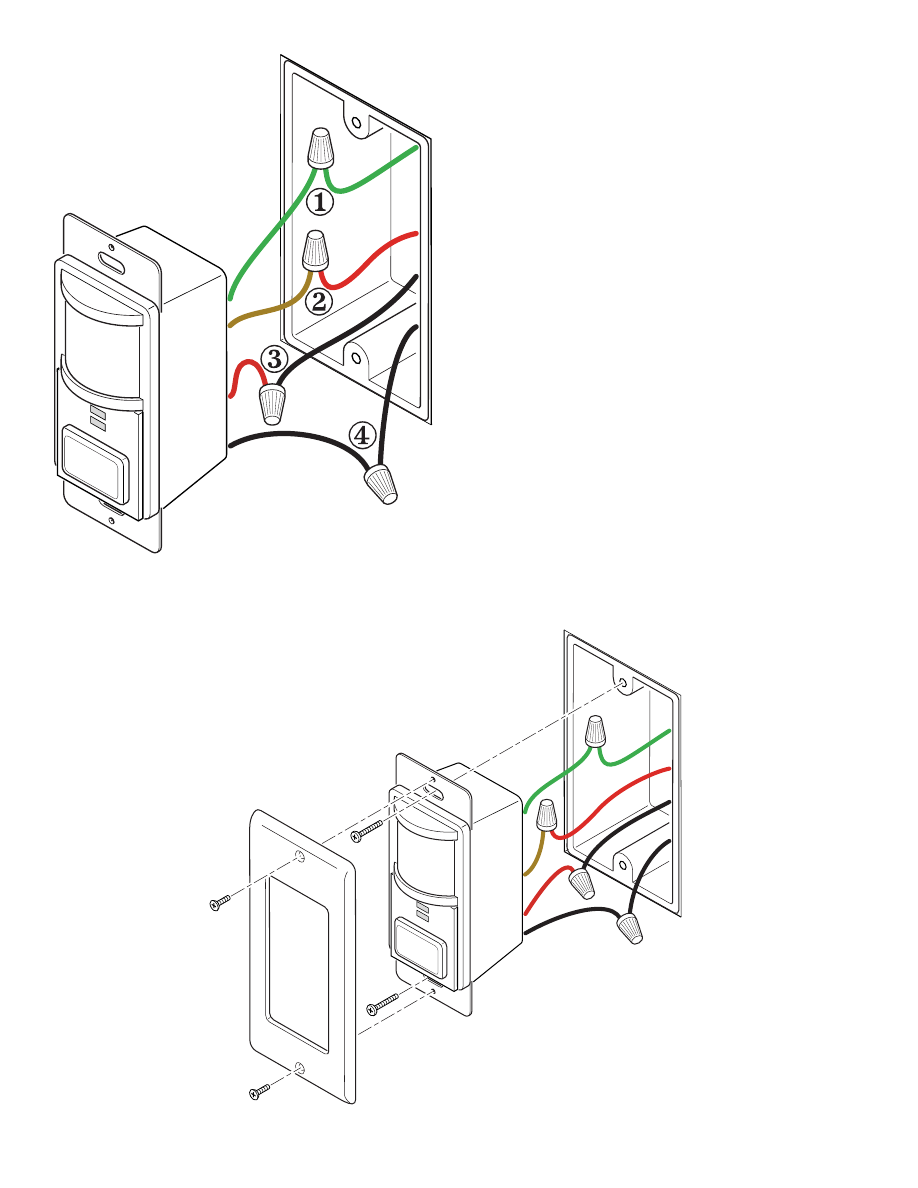

Figure 3 - Wiring the 6108 Wall Switch
Figure 4 - Mounting the 6108 Wall Switch
