2 598-1233-03

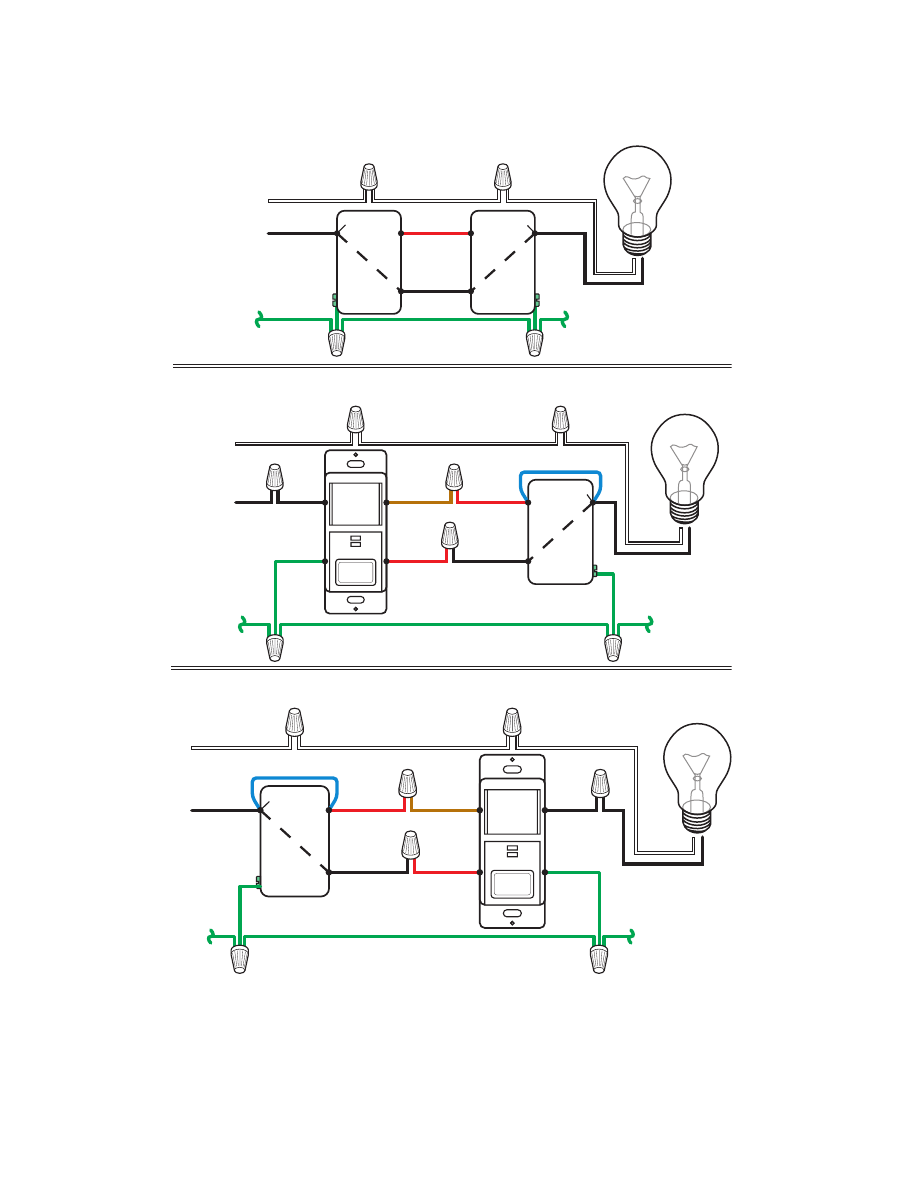

6108 SWITCH 1 ST IN CIRCUIT
GREEN
(Ground)
WHITE
FROM
POWER
SOURCE
BLACK BLACK
WHITE
RED
(In Wall)
BROWN
BLACK
EXISTING
3-WAY SWITCH
ADD JUMPER WIRE
6108
RED
(From 6108)
WHITE
BLACK
*COMMON
TYPICAL 3-WAY INSTALLATION
GREEN
(Ground)
WHITE
FROM
POWER
SOURCE
BLACK
WHITE
BLACK
WHITE
BLACK
*COMMON *COMMON
6108 SWITCH 2 ND IN CIRCUIT
WHITE
FROM
POWER
SOURCE
BLACK BLACK
WHITE
RED
(In Wall)
BROWN
BLACK
EXISTING
3-WAY SWITCH
ADD JUMPER WIRE
6108
RED
(From 6108)
WHITE
BLACK
*COMMON
GREEN
(Ground)
RED
(In Wall)
*COMMON-Used for illustrative purposes only. Check Your Switch. The common may be in a different
location, depending on the brand of your switch.
RED is used to represent the second wire between two standard three-way switches. This may not be
the color used in all installation. If you are not sure about your wiring, call an electrician for instal-
lation help. There is also a RED wire on the 6108 switch. Check the instructions above closely and
do not confuse the two.
SEE pAgES 3 ThrOugh 5 FOr dETAILEd INSTruCTIONS FOr INSTALLINg
ANd wIrINg ThE 6108 wALL SwITCh.
