Mounting and Wiring

Mounting the Controller

Release F

UMC800 Controller Installation and User Guide

4/01

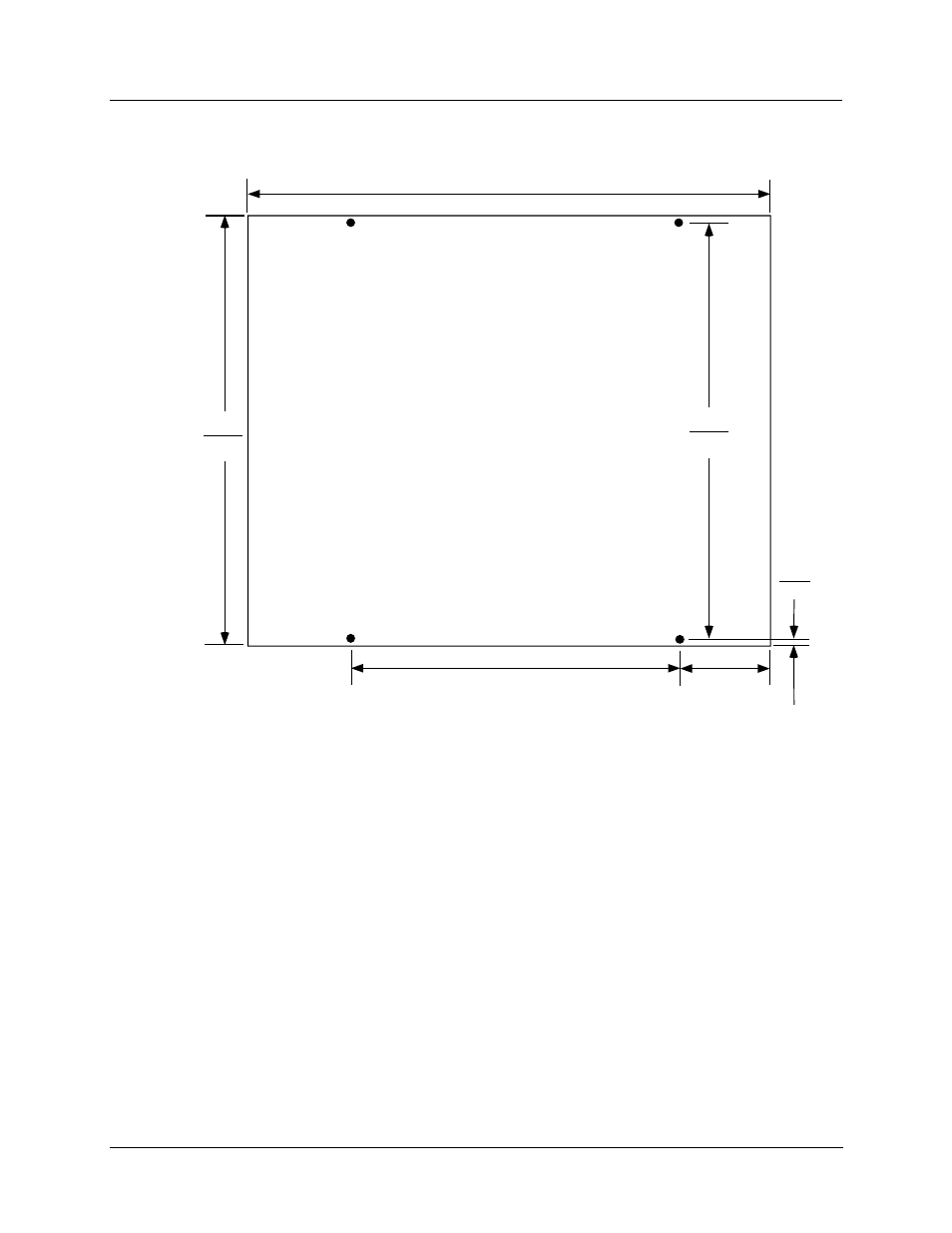

Enclosure mounting dimensions

11.37

286.26

7.0

177.8

inches
Dimensions = _________
millimeters

11.77

298.96

13.027

330.89

3.013

76.53

0.25

6.35

NOTE: Allow 7.0” (178 mm) depth to mounting dimensions for controller enclosure and cabling. To
mount the controller so that the power supply is at the top, rotate the mounting dimensions 90 degrees.

Figure 8 UMC800 controller enclosure dimensions
