System board removal and replacement procedure – HP DL185 User Manual
Page 64
Contents 64

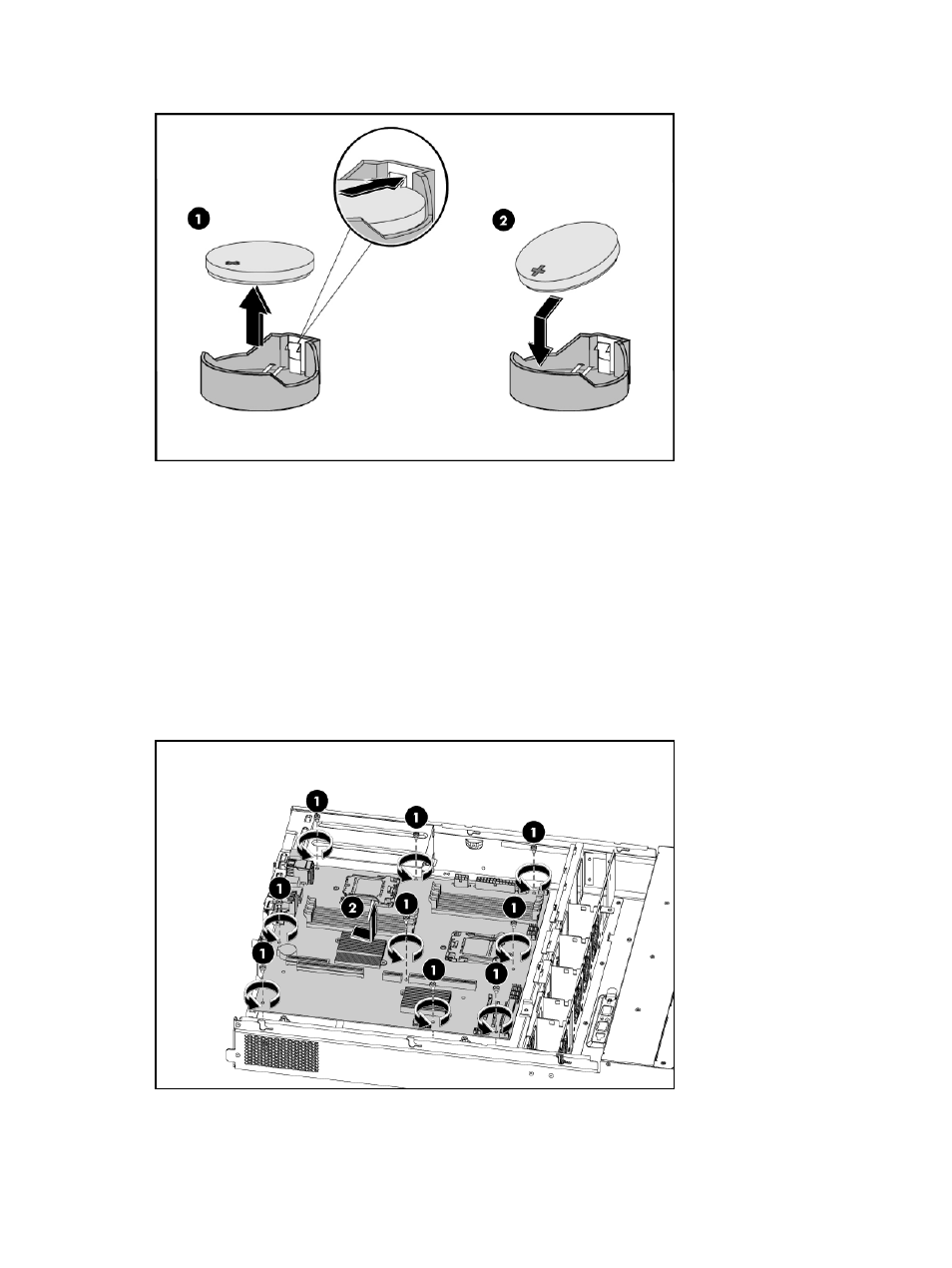

Figure 56 Replacing the battery
System Board Removal and Replacement Procedure
To remove the system board:
1.
Remove the top cover.
2.
Remove the air baffle.
3.
Disconnect all cables connected to the system board.
4.
Loosen the nine screws that secure the system board to the chassis.
5.
Slide the system board back, up and out of the chassis. Remove the system board from the
chassis.
Figure 57 Removing the system board
To replace the system board:
1.
Align the system board I/O connectors to their openings and slide the system into place. The
nine screw holes on the chassis should align with the system board.
