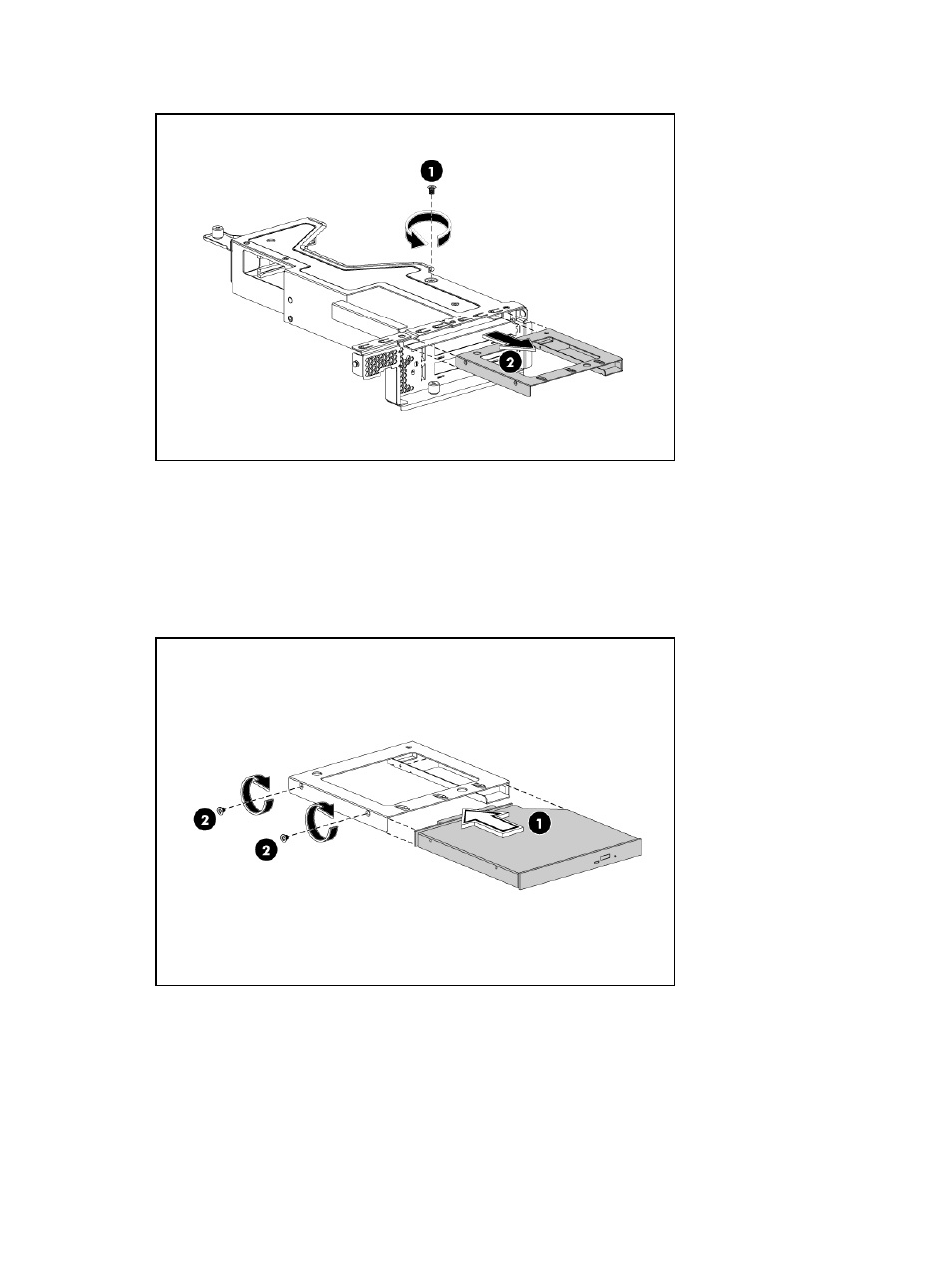

Figure 26 Removing the optical carrier
3.
Align the optical drive in the carrier and install drive. (step 1 in figure 27)
4.
Secure the optical drive to the carrier with the provided mounting screws. (step 2 in figure 27)
5.
Connect the IDE data and power cables to their corresponding connectors on the optical drive.
To Install the Rear DVD/CDRW Optical Drive PCI cage
：
Figure 27 Assembling the optical drive and carrier
6.
Slide the optical drive assembly into drive bay on the PCI cage. (Step 1 in figure 28). Be sure to
feed IDE and power cables through first.
