HP E1432A
Technical Specifications
4-16 Channel 51.2 kSa/s
Digitizer plus DSP
Rev. April 1999

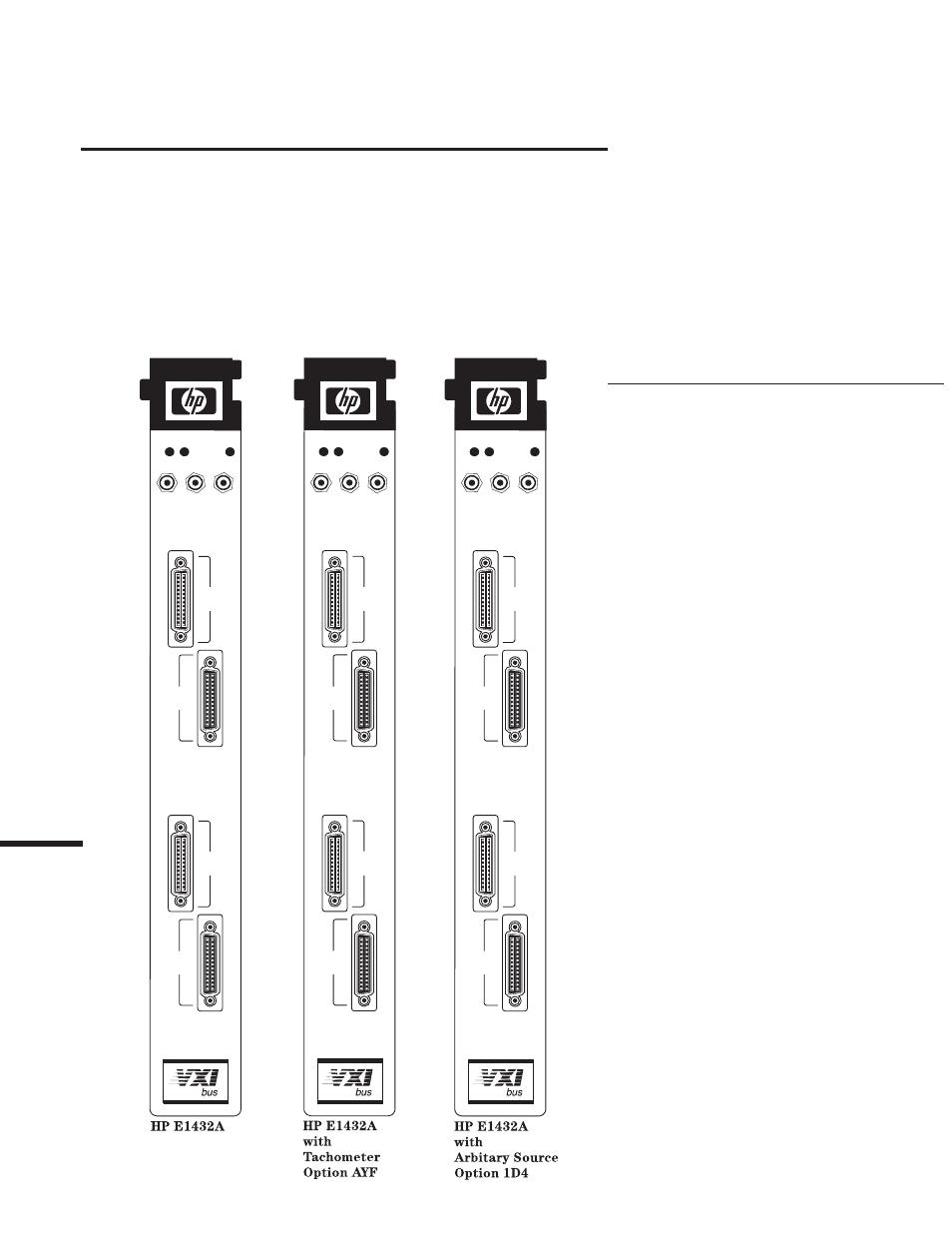

HP E1432A
Fail Acs Source
COLA Shut Out
16 CHANNEL
51.2 kSa/s
Digitizer + DSP
Chan
1 - 4
Chan
5 - 8
Chan
9 - 12
Chan
13 - 16
HP E1432A
Fail Acs Trigger
ExSamp Cal ExTrig
16 CHANNEL
51.2 kSa/s
Digitizer + DSP
Chan
1 - 4
Chan
5 - 8
Chan
9 - 12
Chan
13 - 16
HP E1432A
Fail Acs Trigger
Tach 1 Tach 2 ExTrig
16 CHANNEL
51.2 kSa/s
Digitizer + DSP
Chan
1 - 4
Chan
5 - 8
Chan
9 - 12
Chan
13 - 16
The HP E1432A 16 Channel
51.2 kSa/s Digitizer plus DSP is a
C-size VXI module. “51.2 kSa/s”
refers to the maximum sample rate
of 51,200 samples per second,
per channel .
The HP E1432A may contain up to
four 4-channel input assemblies so
that the module may have a total of
up to 16 inputs.
This module integrates transducer
signal conditions, anti-alias
protection, digitization and high
speed measurement computation
in a single slot VXI card. Onboard
digital signal processing and up to
32 Mbytes of RAM maximizes total
system performance and flexibility.
