Pin definitions for input connector
definition pin # pin # definition
RFI GND/Cable Shield 26 13 - Diff 1
+24V Power 25 12 +Diff 1
GND Return for +/- 24V 24 11 RFI GND/Drain Shield 1
-24 Power 23 10 RFI GND/Drain Shield 2
RFI GND 22 9 - Diff 2
I2C SCL 21 8 + Diff 2
CAL HIGH 20 7 CAL LOW
BoB_EN 19 6 - Diff 3
RFI GND 18 5 + Diff 3
I2C SDA 17 4 RFI GND/Drain Shield 3
RFI GND 16 3 RFI GND/Drain Shield 4
I2C_EN 15 2 - Diff 4
RFI GND/Cable Shield 14 1 + Diff 4

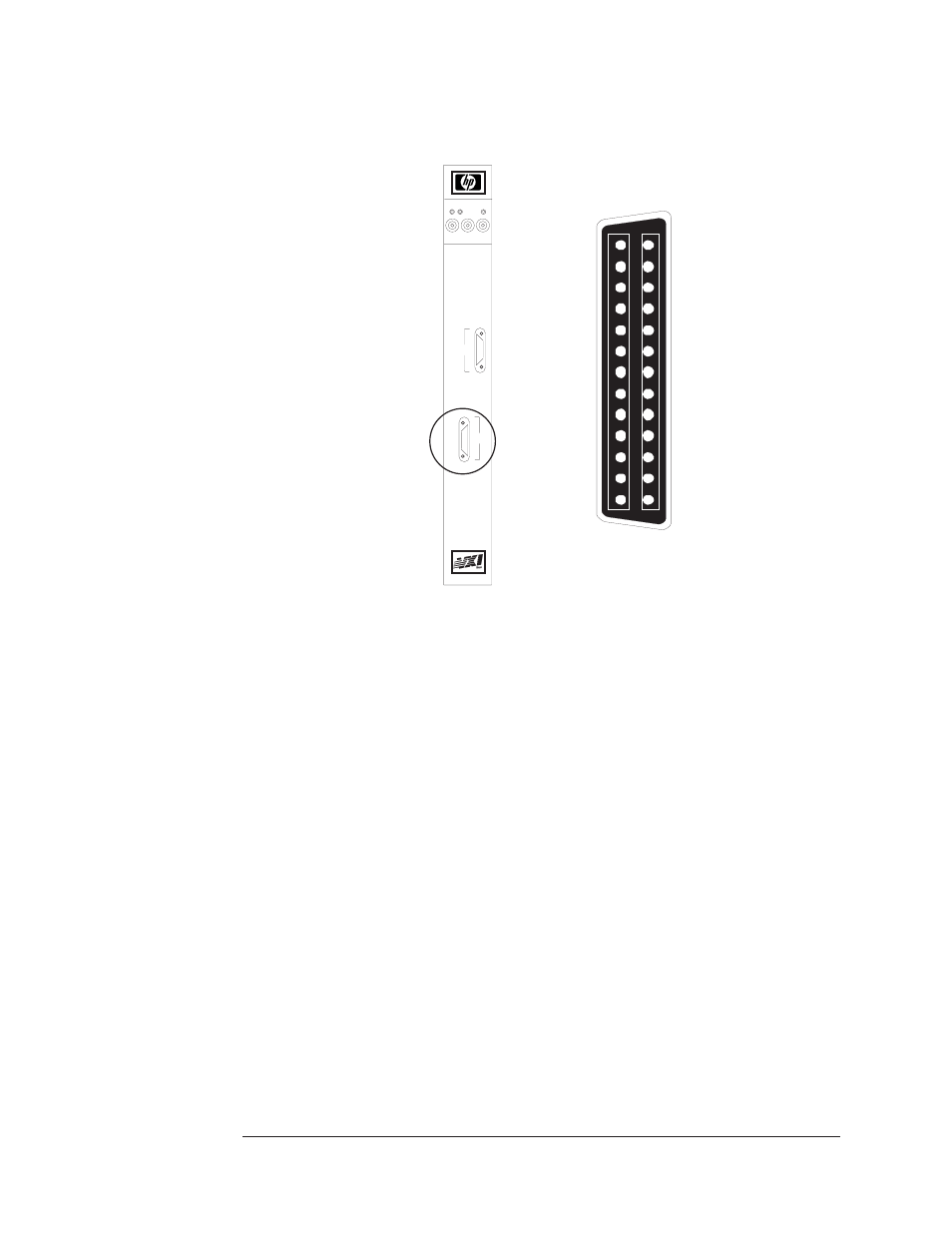

Recommendations on wiring for the E1432/3A 4 Channel Input
Connector
Allowed Connections
pin 26 pin 13
pin 14 pin 1
HP E1433A
COLA Out Shut
Fail Acs Source
Chan
1-4
Chan
5-8
8-CHANNEL 196
+DSP
kSa/s DIGITIZER
HP E1433A User's Guide
Break Out Boxes
8-6
