Removal and Replacement of Parts (without Calibration)

7-20

Replacement of Parts

Replacement of Power Supply

You will be removing the power supply from the printer and installing a new power supply.

Removing the Power Supply

Step 1. Follow Steps 1-9 of Removing the Power

Knob from Replacement of Power Knob.

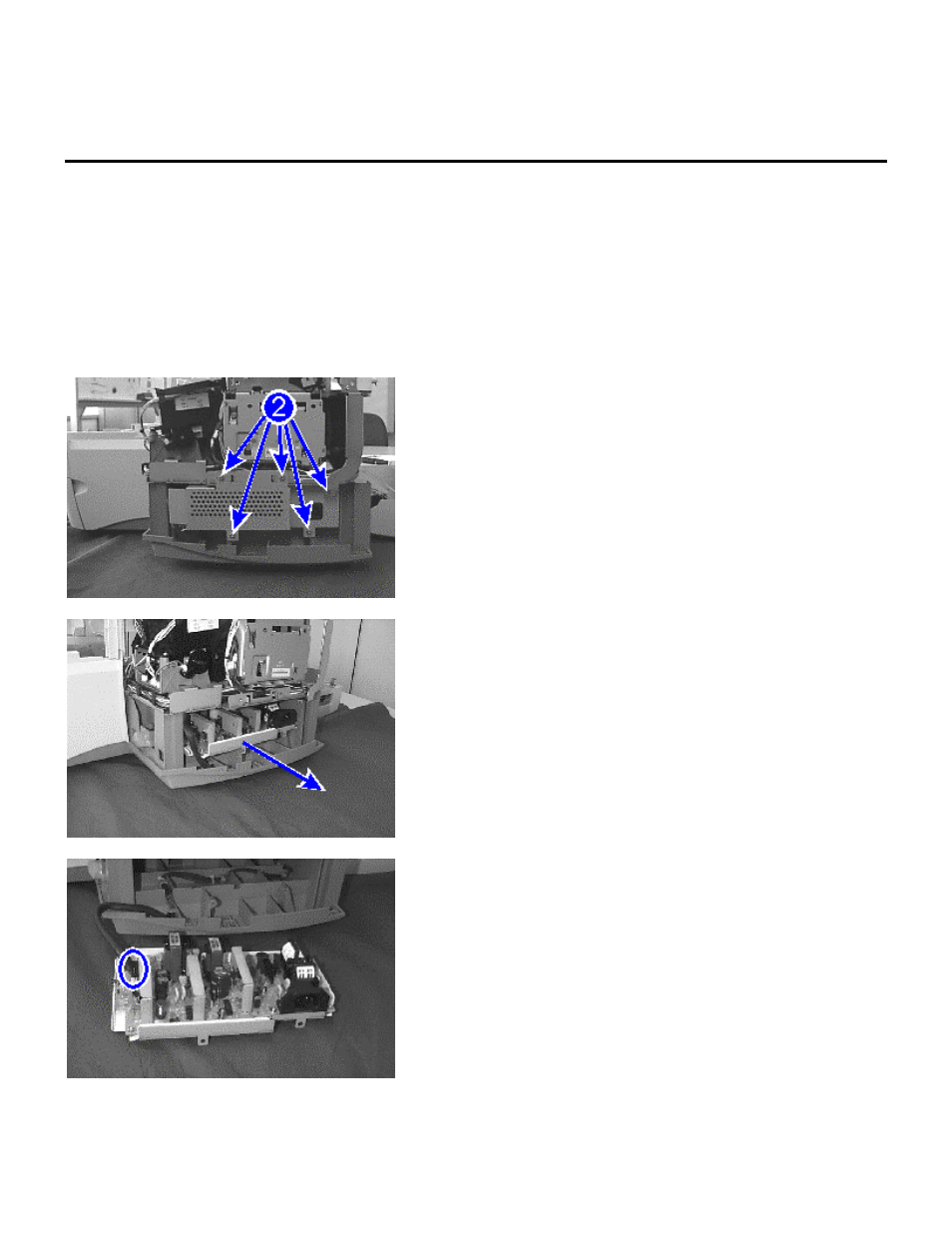

Step 2. Locate the side of the power supply and

unscrew five screws (one of which is
attached to the ESD strap). Set the screws
aside.

Step 3. Lift up the cover of the power supply. Be

careful of the ESD clip.

Step 4. Slide the power supply out. Be careful of

any cable or wire.

Step 5. Disconnect the power supply connector.
