Removal and Replacement of Parts (without Calibration)

7-7

Replacement of Parts

Replacement of Service Station

You will be removing the Service Station from the printer and installing a new Service Station.

Removing the Service Station

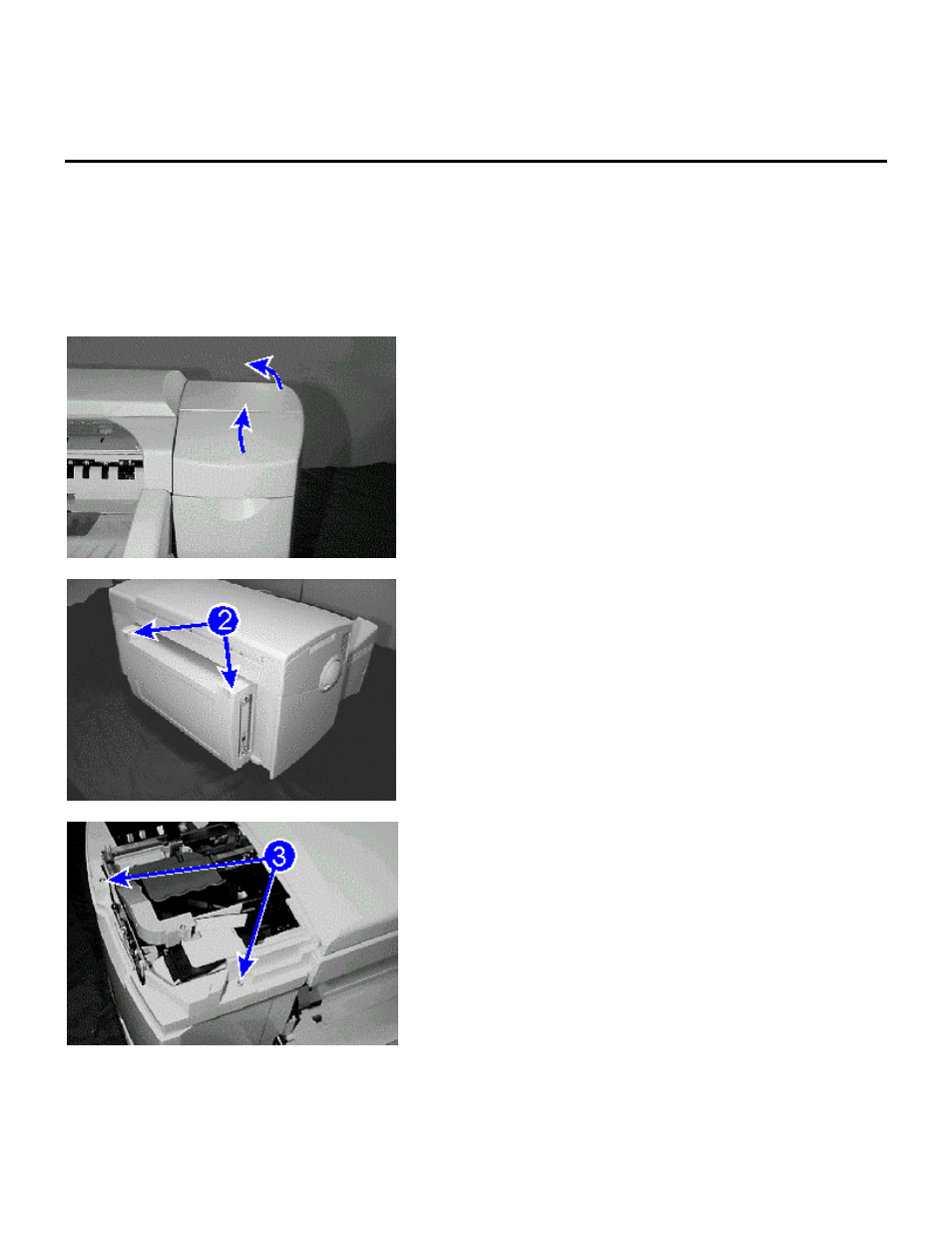

Step 1. Remove the printhead access cover by

opening the ink cartridge door and tilting
the access cover to the side.

Step 2. Lift the two latches on both the right top

and left top corners of the rear access door
to unlatch it.

Step 3. Remove the service station side cover by

unscrewing the two screws securing it and
lifting it up.
