2-14

C

H

A

P

T

E

R

2:

I

N

S

T

A

L

L

I

N

G

T

H

E

E

D

G

E

R

O

U

T

E

R

M

O

D

U

L

E

3

Insert the module into the board guides at the top and bottom of the slot

and slide it into the hub by pressing firmly at a point slightly below the

center of the faceplate (Figure 2-5).

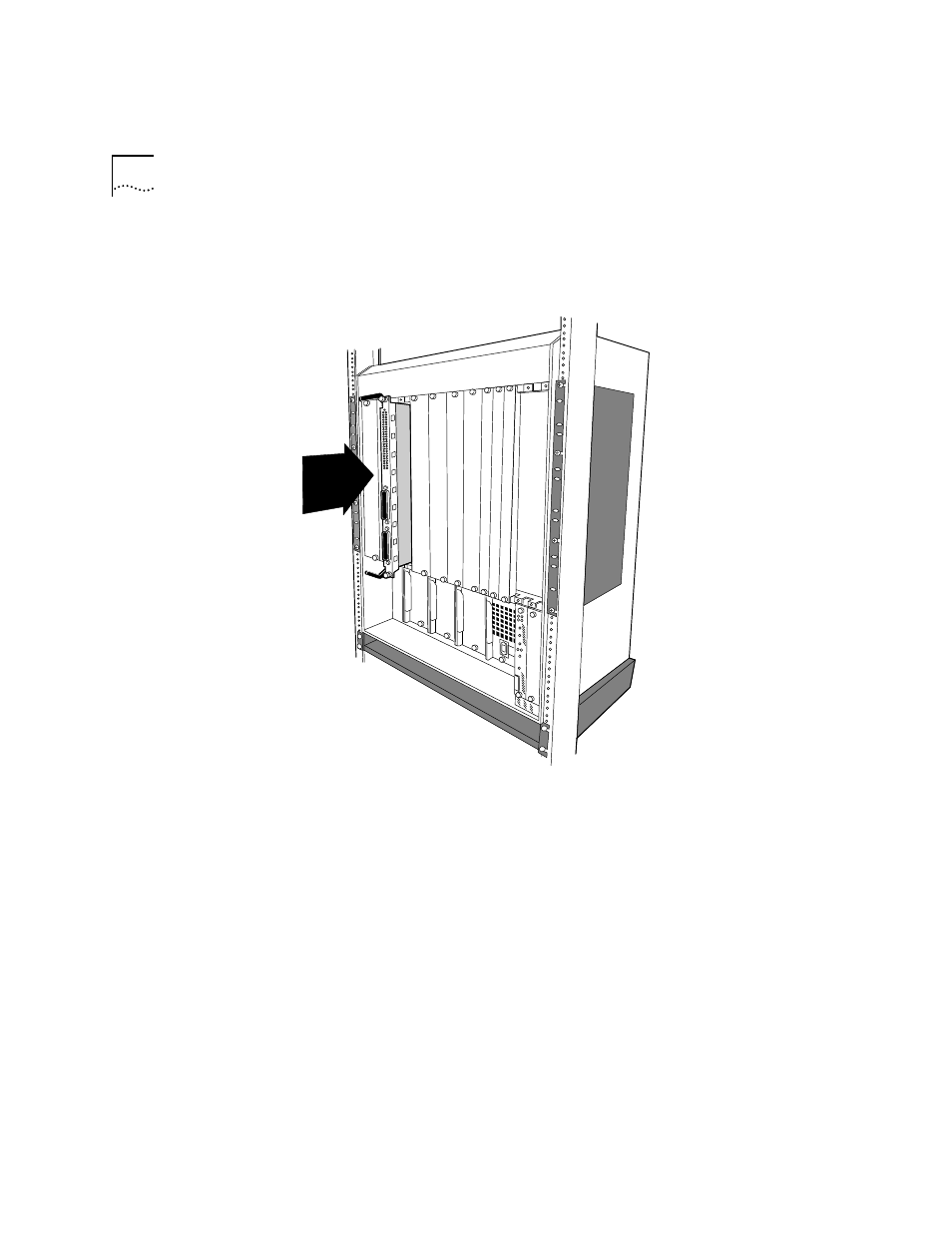

Figure 2-5

Installing the Edge Router Module in an ONcore Hub
