2-10 C H A P T E R 2: I N S T A L L I N G T H E E D G E R O U T E R M O D U L E
■
Enabling or Disabling NVRAM Configuration
■
Selecting a Network

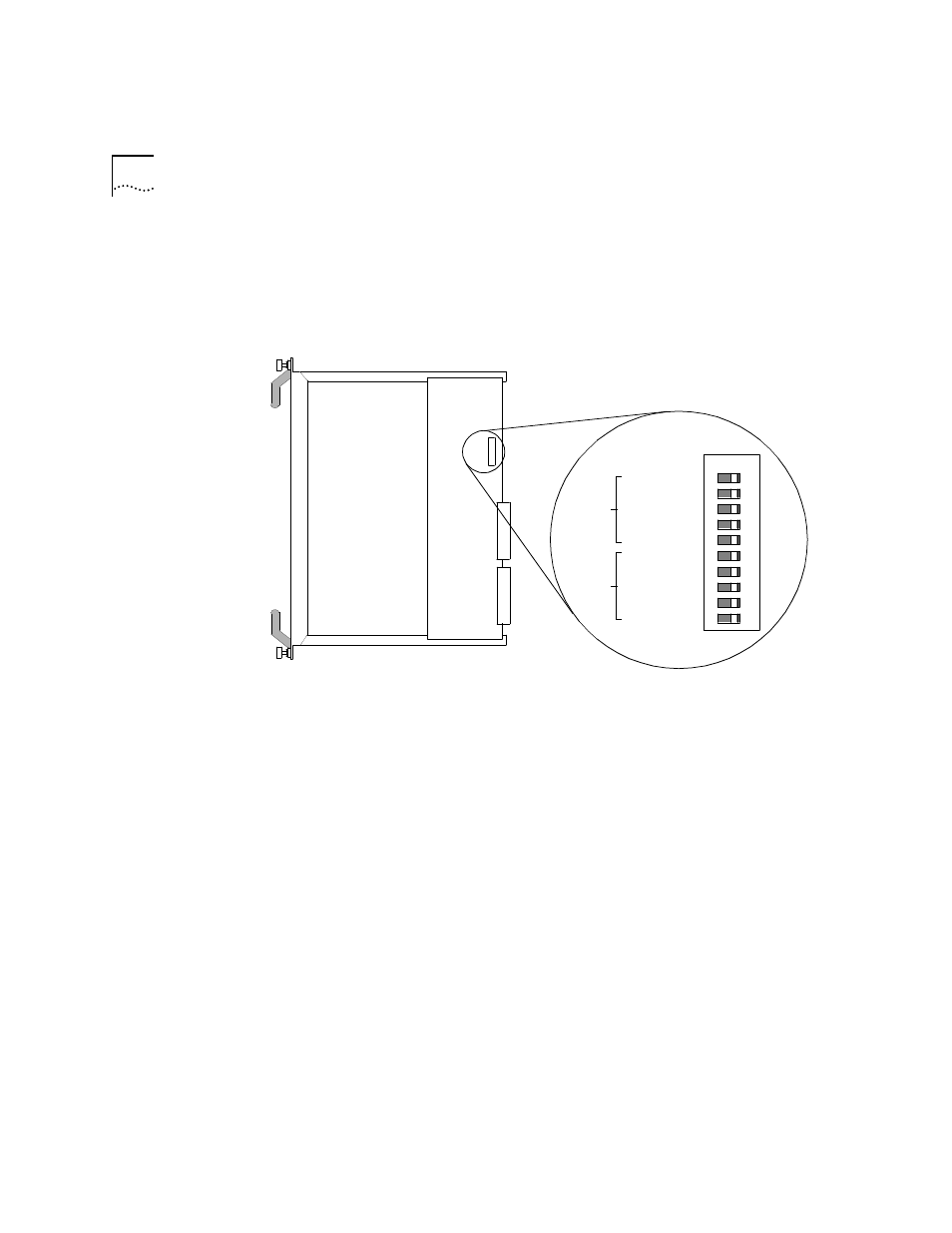

Figure 2-3 shows the ONcore carrier DIP switch location.
Figure 2-3 ONcore Carrier DIP Switch Location
Enabling or Disabling NVRAM Configuration
Two NV SEL DIP switches control whether the ONcore Edge Router module
uses configuration settings stored in NVRAM (non-volatile memory).
■
Switch 4 provides the NVRAM selection for engine bay 1 (top).
■
Switch 9 provides the NVRAM selection for engine bay 2 (bottom).
CH SEL 0
CH SEL 1
CH SEL 2
CH SEL 3
NV SEL
CH SEL 0
CH SEL 1
CH SEL 2
CH SEL 3
NV SEL
ENG 2
ENG 1
0
1
2
3
4
5
6
7
8
9
ON OFF
