Heat & Glo • RED40, RED40ST • 2155-900 Rev. P • 10/12
75
Service Parts
Beginning Manufacturing Date: May 2009
Ending Manufacturing Date: Active
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
RED40ST-NNN (No lights, No Rock, No Refractory) RED40ST-NNP (No lights, No Rock, Porcelain)
17 Base Pan No Media 2175-028
17.1 Access Panel Assembly Qty 2 req 2155-060
17.2 Burner Insert 2155-160
17.3 Base Pan 2155-152
17.4 Bottom Plate Qty 3 req 2155-161
Refractory
Metal SMR-40STNL
Porcelain POR-40ST-F
RED40ST-NNG (No lights, No Rock, Granite)
18 Base Pan with Media 2175-029
18.1 Access Panel Assembly Qty 2 req 2155-060
18.2 Burner Insert 2155-160
18.3 Mesh Plate Qty 2 req 2155-132
18.4 Base Pan 2155-134
18.5 Bottom Plate Qty 2 req 2155-161
Refractory Granite GR40ST-F
Additional service part numbers on following page.

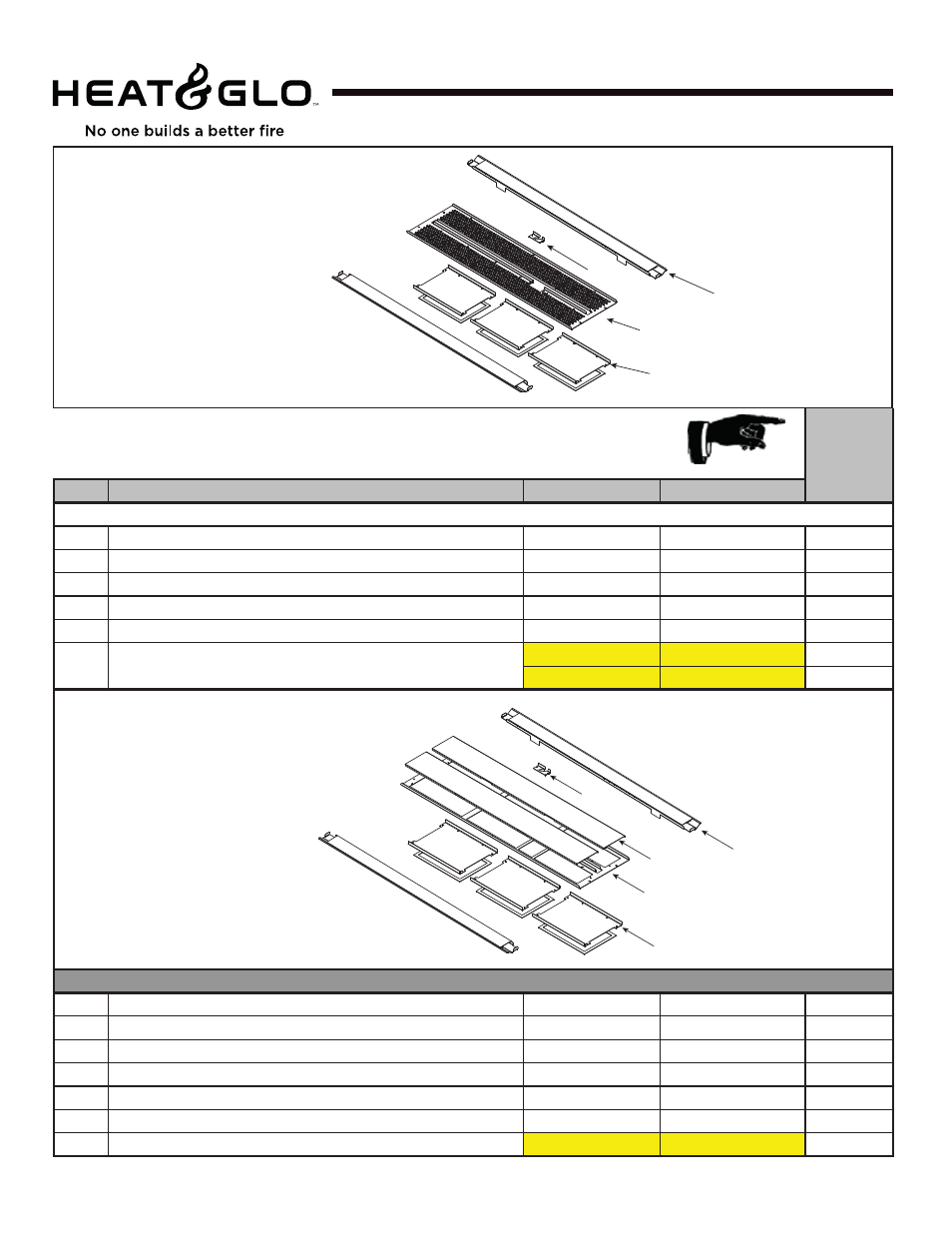

#17 Base Pan No Lights or Media with
Porcelain or No refractory
#18 Base Pan No Lights or Media with
Granite refractory
17.1
17.2
17.3
17.4
18.1
18.2
18.3
18.4
18.5
RED40ST
