CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
A. Appliance Preparation
9 9
Appliance Preparation
FIBERGLASS ROPE RING
BOTTOM PANEL SCREW LOCATIONS
1. Remove seal cap by lifting up and off of the starting
collar.
2. Place fi rst twelve inch vent section on the starting collar.
WARNING! Risk of Fire! A MINIMUM of twelve inches verti-
cal pipe is required prior to attaching any elbow to the appli-
ance.
3. Place fi berglass rope ring over initial twelve inch vent
section and position tightly to top of appliance.
4. Remove bottom metal panel by removing four screws.
Screw locations are shown in Figure 9.1. The two
screws on the bottom side are located behind the panel.
Remove all four screws and gently lift the panel off the
appliance avoiding contact with the non-combustible
board if possible.

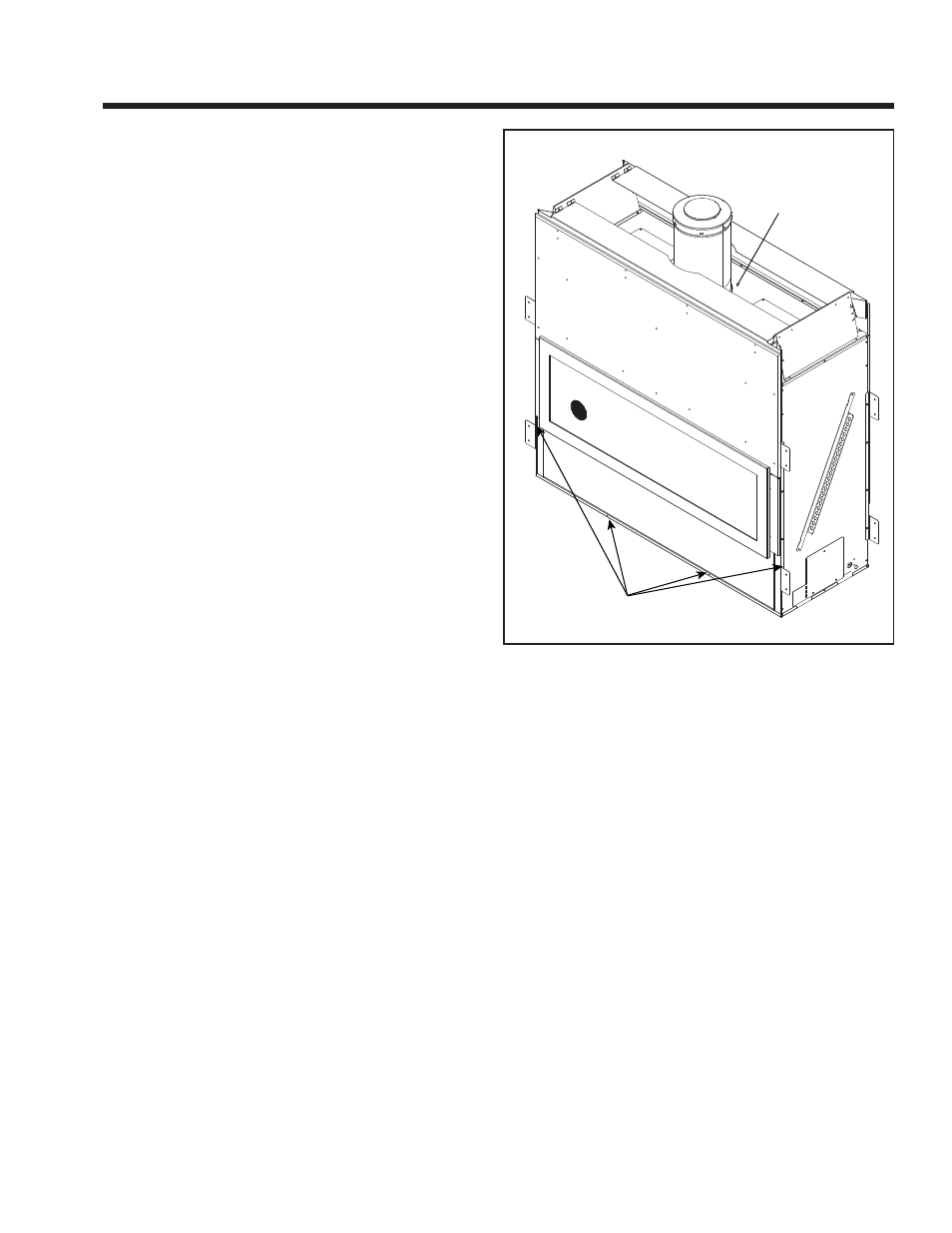

Figure 9.1 Location of Fiberglass Rope Ring
