D. Facing Material

• Facing and/or fi nishing materials must not interfere with

air fl ow through louvers, operation of louvers or doors,
or access for service.

• Facing and/or fi nishing materials must never overhang

into the glass opening.

• Observe all clearances when applying combustible

materials.

1/2 IN.

20-3/4 IN.

FACTORY-SUPPLIED

NON-COMBUSTIBLE

BOARD (2)

= AIR SPACE

1/2 IN.

1/2 IN. THICK

WALL SHEATHING

NON-COMBUSTIBLE BOARD

ON FRONT FACE

SIDE VIEW

7-1/4 IN.

3-1/2 IN.

COMBUSTIBLE

FRAMING

10-1/4 IN.

3-1/2 IN.

= AIR SPACE

1 IN.

1/2 IN.

20-3/4 IN.

FACTORY-SUPPLIED

NON-COMBUSTIBLE

BOARD

1/2 IN. THICK

WALL SHEATHING

NON-COMBUSTIBLE BOARD

ON FRONT FACE (SIDE VIEW)

COMBUSTIBLE

FRAMING

3-1/2 IN.

7-1/4 IN.

11-1/4 IN.

3-1/2 IN.

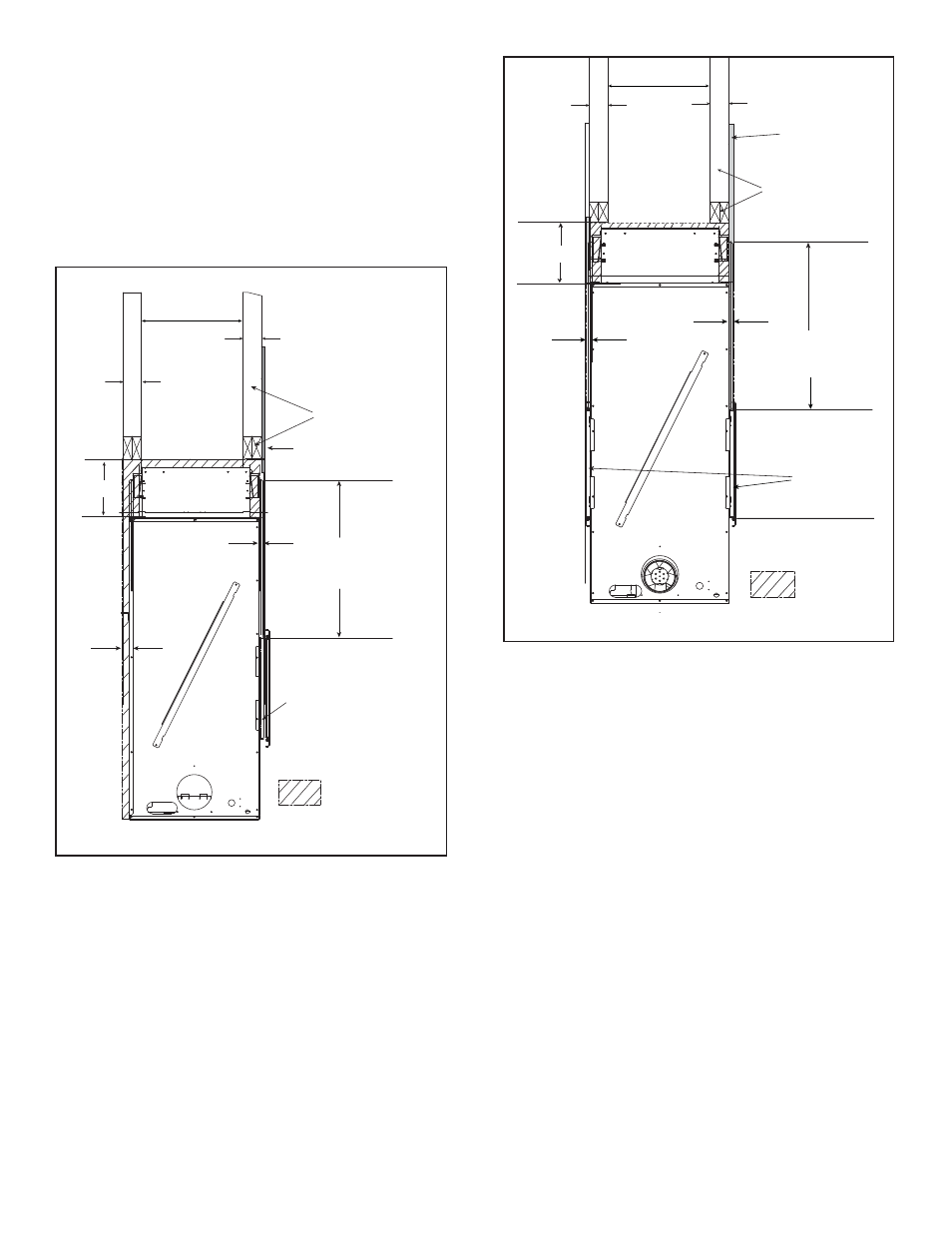

Figure 13.6 Framing and Framing Materials-RED40ST

Figure 13.5 Framing and Framing Materials-RED40
