Heat & Glo • RED40, RED40ST • 2155-900 Rev. P

• 10/12

47

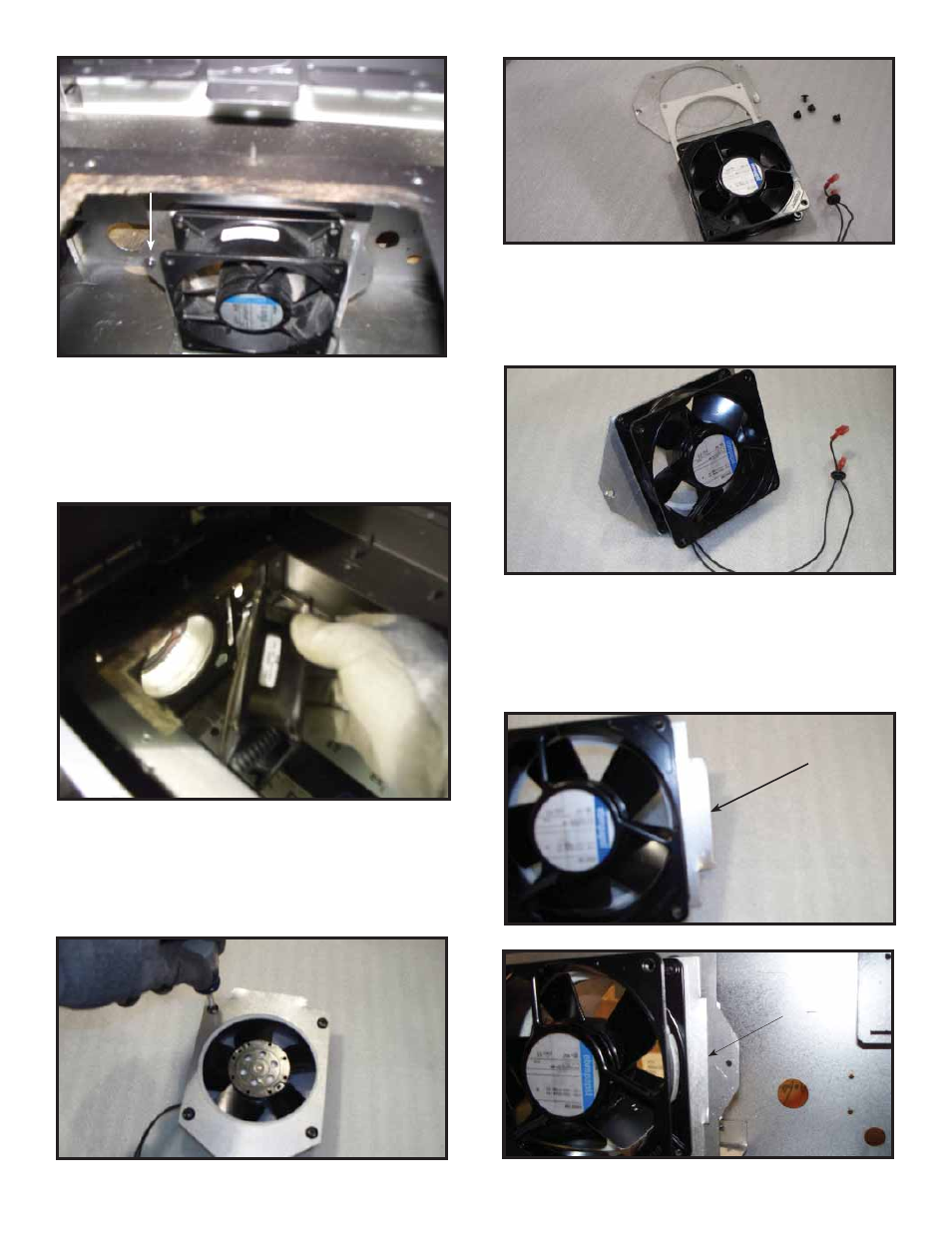

7. Slide fan forward slightly to release it from the fan mount

housing.

8. Locate blower power wires and unplug them from their

locations. Note these positions for reinstallation.

9. Remove blower from appliance. See Figure 12.15.

Figure 12.15. Remove Blower from Appliance.

10. Remove mounting plate from blower by removing the

four screws that hold the blower to the plate. Save the
gasket for use with the new blower. See Figure 12.16
and Figure 12.17.

Figure 12.16. Remove Mounting Plate

Figure 12.14. Fan Mount Fastener Location.

FAN MOUNT FASTENER

FAN MOUNT FASTENER

Figure 12.17. Remove Mounting Plate

11. Attach new blower to mounting plate by fastening the

four screws in the appropriate locations. The side of
the blower with the label on it must face toward the
inside of the appliance. This is the direction of the air
fl ow. See Figure 12.18.

Figure 12.18. Removed Mounting Plate

12. To install new blower back into appliance, reverse the

removal procedure. Install blower assembly with the
tab toward the rear of the appliance. See Figure 12.19.
This tab must insert into slot on blower housing inside
the appliance as shown in Figure 12.20.

Figure 12.19. Blower Tab Toward Rear

BLOWER TAB ON
MOUNTING PLATE

Figure 12.20. Blower Tab Inserted into Slot on Blower Housing

SLOT ON

BLOWER HOUSING
