Heat & Glo • RED40, RED40ST • 2155-900 Rev. P

• 10/12

67

Service Parts

Beginning Manufacturing Date: May 2009

Ending Manufacturing Date: Active

IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement
parts for your appliance please provide model number and serial number. All parts listed
in this manual may be ordered from an authorized dealer.

Stocked

at Depot

ITEM

DESCRIPTION

COMMENTS

PART NUMBER

1

Non Combustible Board, Outer

Qty 2 req

2155-461

2

Non Combustible Board, Inner

Qty 2 req

2155-462

3

Non Combustible Board, Side Panel Finish

Qty 4 req

2155-460

4

Bottom Face Plate

Qty 2 req

2155-112

5

Mesh Clips

Pkg of 4

2155-184/4

Y

6

Glass Assembly

Qty 2 req

GLA-RED40

Y

7

Fire screen Door Assembly

Qty 2 req

2155-012

Mesh

2155-031

8

Burner Assembly NG

2155-007

Y

9

Pilot Shield

2155-173

10

Base Pan

2155-025

11

Panel Cover, Side

2155-140

12

Vent Assembly

2155-071

Grille Panel

2155-150

Additional service part numbers on following page.

10/12

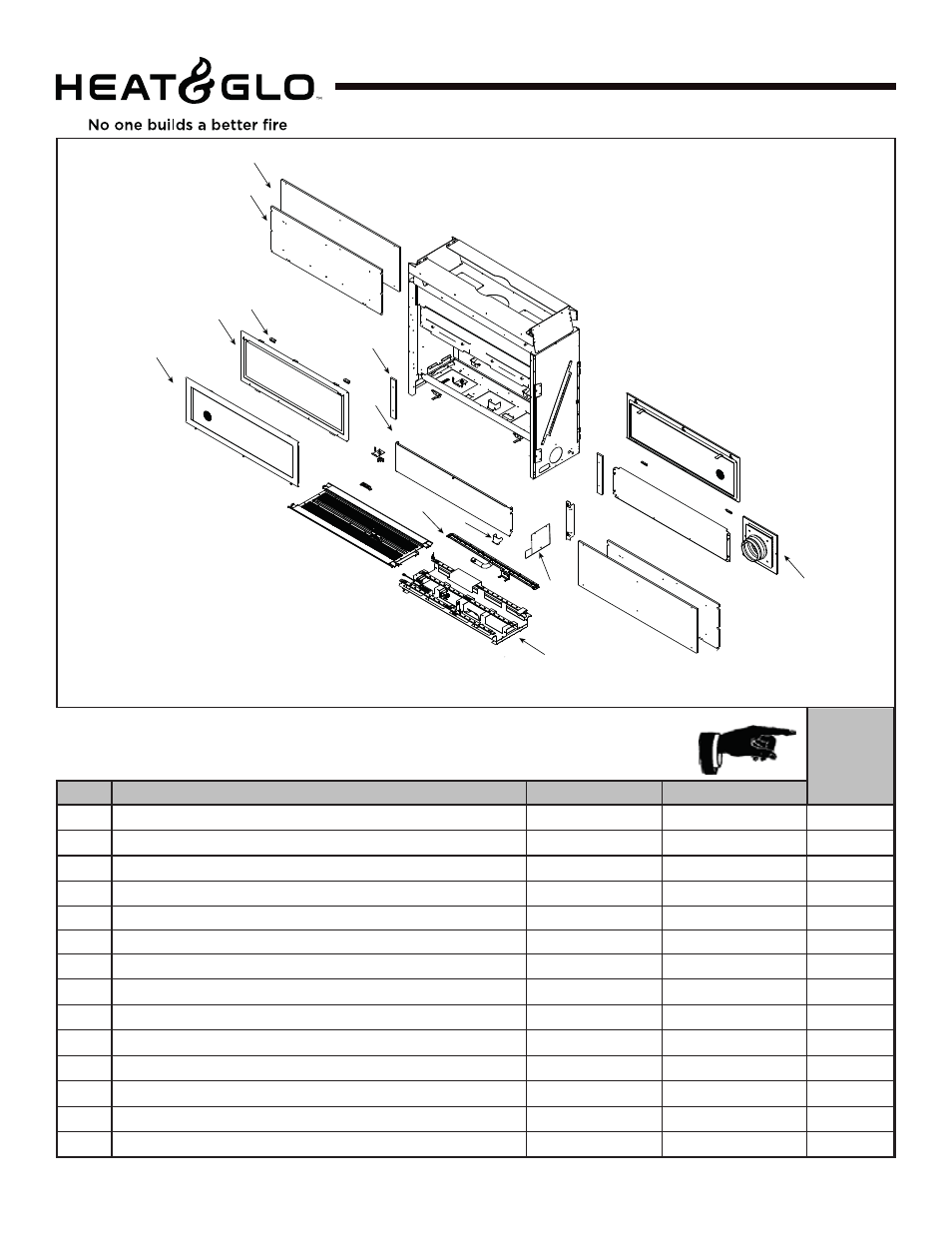

40 in Landscape See-thru
Gas Fireplace - DV

1

2

3

4

6

5

7

8

12

10

9

RED40ST
