4 598-1360-00
Note: When first turned on wait about 1 1 /
2
minutes
for the circuitry to calibrate.
* resets to Security mode at dawn.

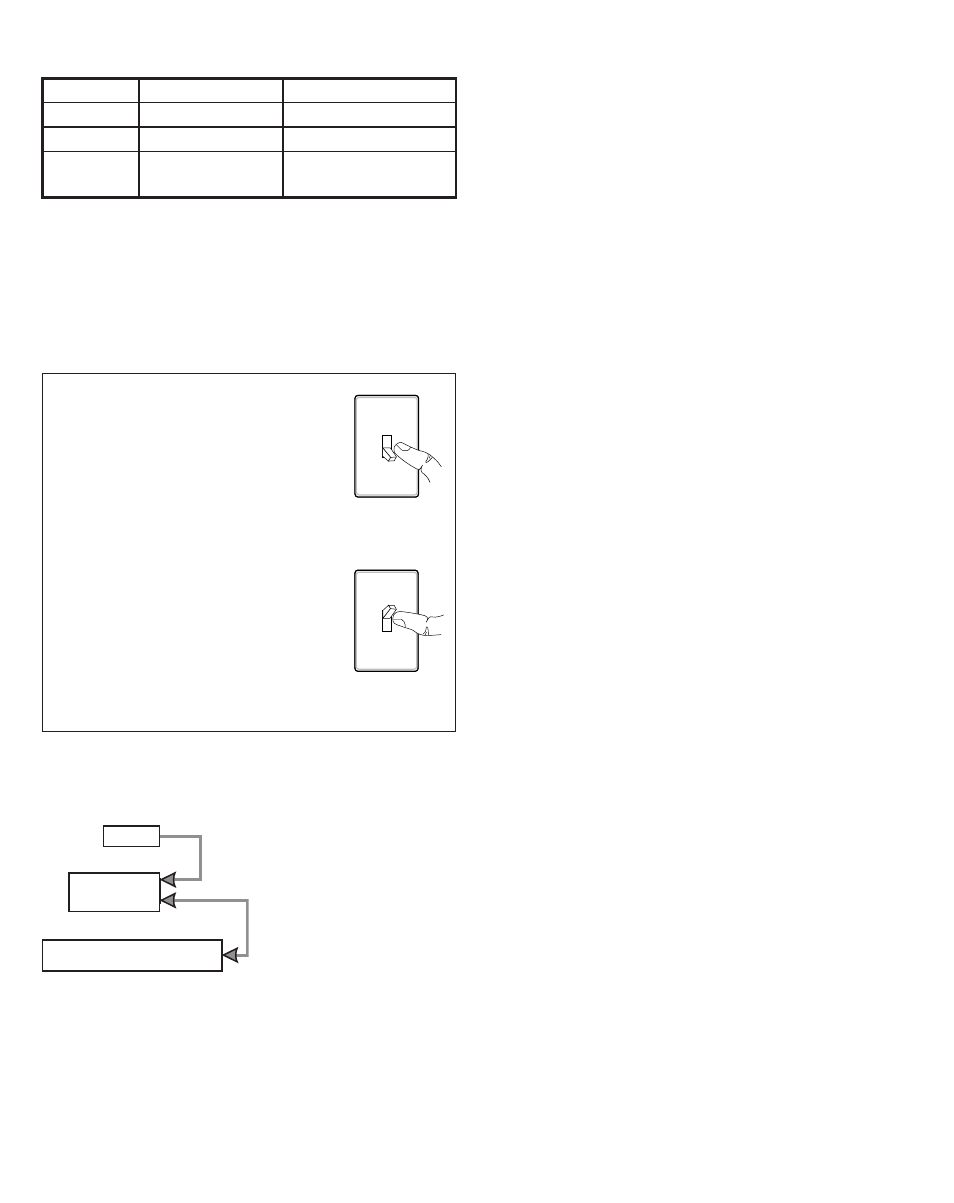

OperatiOn
Mode: On-Time Works: Day Night
test 5 Seconds x x
security 1, 5 or 10 Minutes x
manual
Override Until Dawn* x
MANUAL MODE
AUTO
TEST
ON-TIME Switch at 1, 5, or
10 minutes
... back on.
1 Second OFF
then...
Manual Override mode can only
be activated at night when the
ON-TIME switch is set to the 1,
5, or 10 minute position.
Flip the light switch off for one sec-
ond then back on to change from
SECURITY mode to MANUAL
OVERRIDE mode.
To return to SECURITY mode,
either:
• turn the light off for one minute
then turn it on, or...
• daylight will automatically reset
the light to SECURITY mode.
mODe sWitChing summary
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn
the power off for one minute, then back on. After the
calibration time the control will be in the SECURITY
mode.
manuaL OverriDe mODe
SECURITY
MODE
speCiFiCatiOns
Range ........................... Up to 70 ft. (21 m) [varies with
surrounding temperature].
Sensing Angle .............. Up to 180°
Electrical Load .............. Up to 300 Watt Maximum
Incandescent [Up to 150
Watt maximum each lamp
holder] or 10 Watt Maximum
LED (Up to 5 Watt Maximum
each lamp holder).
Bulb Type ...................... Up to 150 Watt Maximum
P A R 3 8 T u n g s t e n
Incandescent or 5 Watt LED
model 2003LEDP38-65K.
Power Requirements .... 120 VAC, 60 Hz
Operating Modes .......... TEST, SECURITY, and
MANUAL OVERRIDE
ON-Timer ...................... 1, 5, 10 minutes
Test Timer ..................... 5 Seconds
Manual
Override Timer .............. Until Dawn
Range ........................... Adjustable
