3 598-1360-00

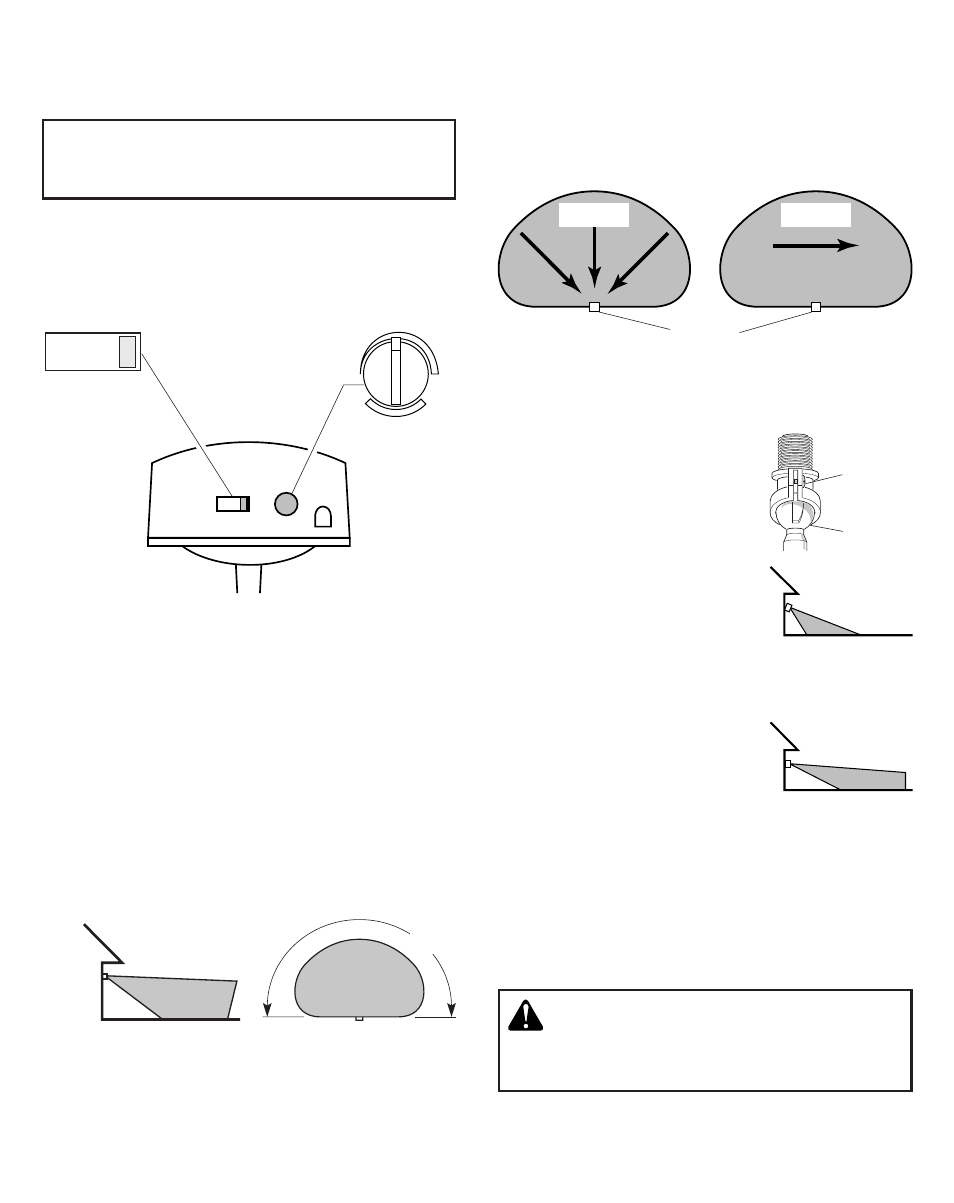

testing anD aDJustments
1. turn on the circuit breaker and light switch.
Motion Motion
nOte: If fixture is mounted higher than 8 ft. (2.4
m), aiming the sensor down will reduce coverage
distance.
The detector is less sensitive to motion directly
towards it.
Maximum Range Maximum
Coverage Angle
RANGE
10 5 1 TEST
ON-TIME
Bottom of sensor
avoid aiming the control at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffic may trigger the con-
trol.
• nearby large, light-colored objects reflecting
light may trigger the shut-off feature. Do not point
other lights at the sensor.
70 ft.
(21 m)
8 ft.
(2.4 m)
180°
MIN MAX
Least Sensitive Most Sensitive
Sensor
3. Loosen the clamp screw
in the sensor ball joint and
gently rotate the sensor.
4. Walk through the coverage
area noting where you are
when the lights turn on (also,
the LED will flash several
times when motion is de-
tected). Move the sensor
head up, down, or sideways
to change the coverage
area.
keep the sensor at
least 1" (2.5 cm) away from
the lamps.
5. Adjust the RANGE as need-
ed. RANGE set too high may
increase false triggering.
6. secure the sensor head
by tightening the clamp
screw. Do not overtighten
the screw.
7. Set the amount of TIME you want the lights
to stay on after motion is detected (1, 5, or 10
minutes).
Warning: risk of fire. Do not aim the
lamps at a combustible surface within 3 ft.
(1 m).
Clamp
Screw
Ball Joint
aim sensor
Down for short
Coverage
aim sensor
higher for Long
Coverage
Note: Sensor has a 1 1 /
2
minute warm up period
before it will detect motion. When first turned on
wait 1
1 /
2
minutes.
2. Turn the RANGE control to the medium position
(halfway between MIN and MAX) and the ON-
TIME control to the TEST position.
