65 Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. G • 2/13
16 16
Reference Materials

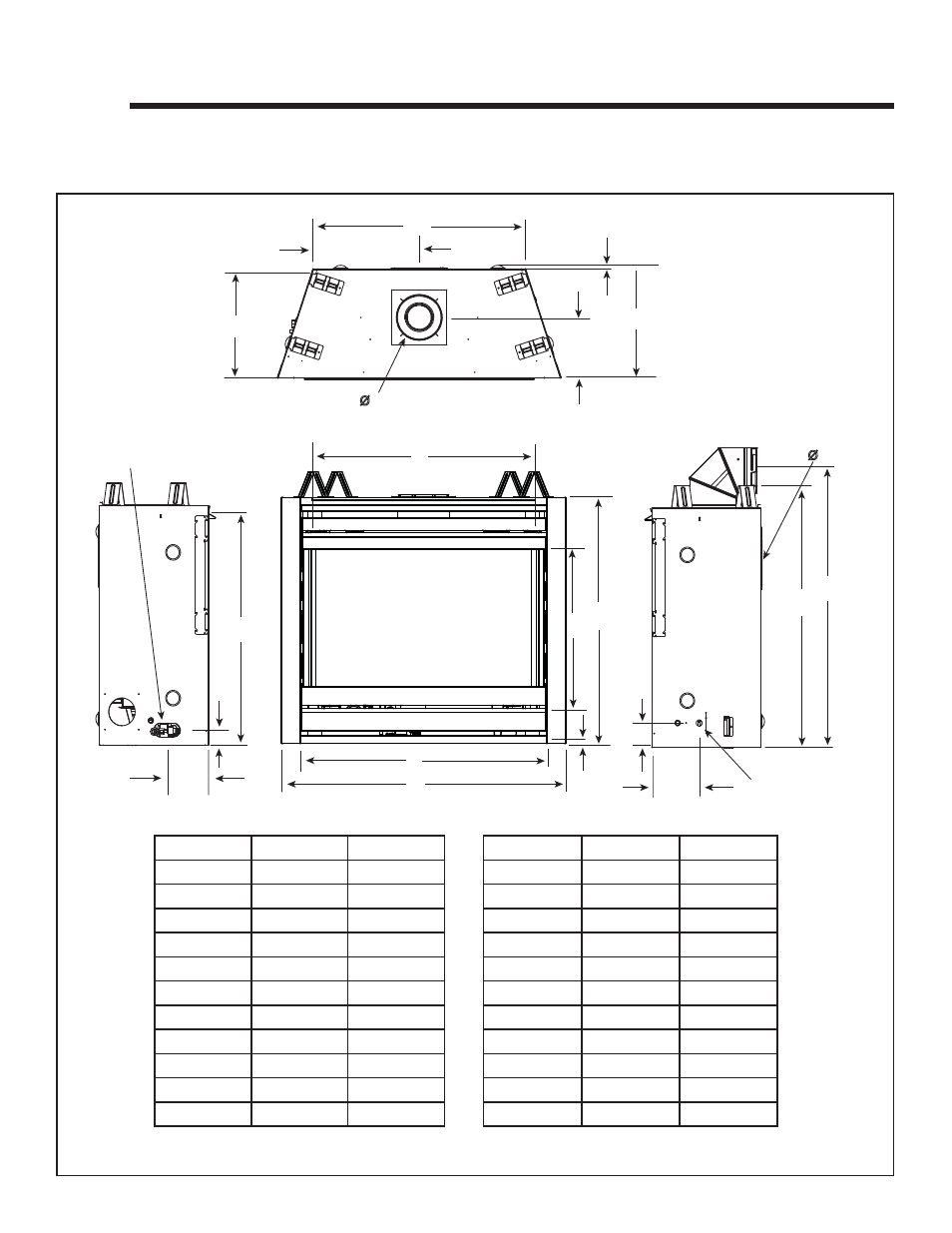

A. Appliance Dimension Diagram
Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances refer to Section 5.
Figure 16.1 Appliance Dimensions
A
B
T
E
ELECTRICAL
ACCESS
S
R
C
D
U
G
F
I
H
J Ø
Q Ø
K
L
M N
O
P
GAS LINE ACCESS
Location Inches Millimeters Location Inches Millimeters
A 36 913 L 16-3/8 416
B 31 790 M 1/2 13
C 27-3/16 691 N 25-3/4 654
D 18 458 O 12-7/8 327
E 31 787 P 15-7/8 403
F 3-1/2 89 Q 6-5/8 168
G 6-7/8 174 R 30 762
H 34-3/8 874 S 2-3/16 56
I 36-1/2 927 T 6 152
J 8 203 U 1 25
K 8-3/4 222
