F. Install the Log Assembly
Figure 3 Locating References for Log #1
Figure 3 Locating References for Log #1
CAUTION: Logs are fragile.
Log Set Assembly: LOGS-550BE-B
Models: SL-550BE-B, SL-550BE-IPI-B, DV3732SBI
LOG PLACEMENT INSTRUCTIONS
Figure 2 Log #1 (SRV2158-700)
Figure 2 Log #1 (SRV2158-700)
Figure 1 Log Locating Features
Figure 1 Log Locating Features
Figure 4 Locating References for Log #1
Figure 4 Locating References for Log #1
Figure 5 Position Log #1
Figure 5 Position Log #1
TAB A
TAB A
TAB B
TAB B
TAB C
TAB C
TAB D
TAB D
Locating Screw
SLOT A
Mate slot A with tab A
Log Rest
Tab B
Tab B

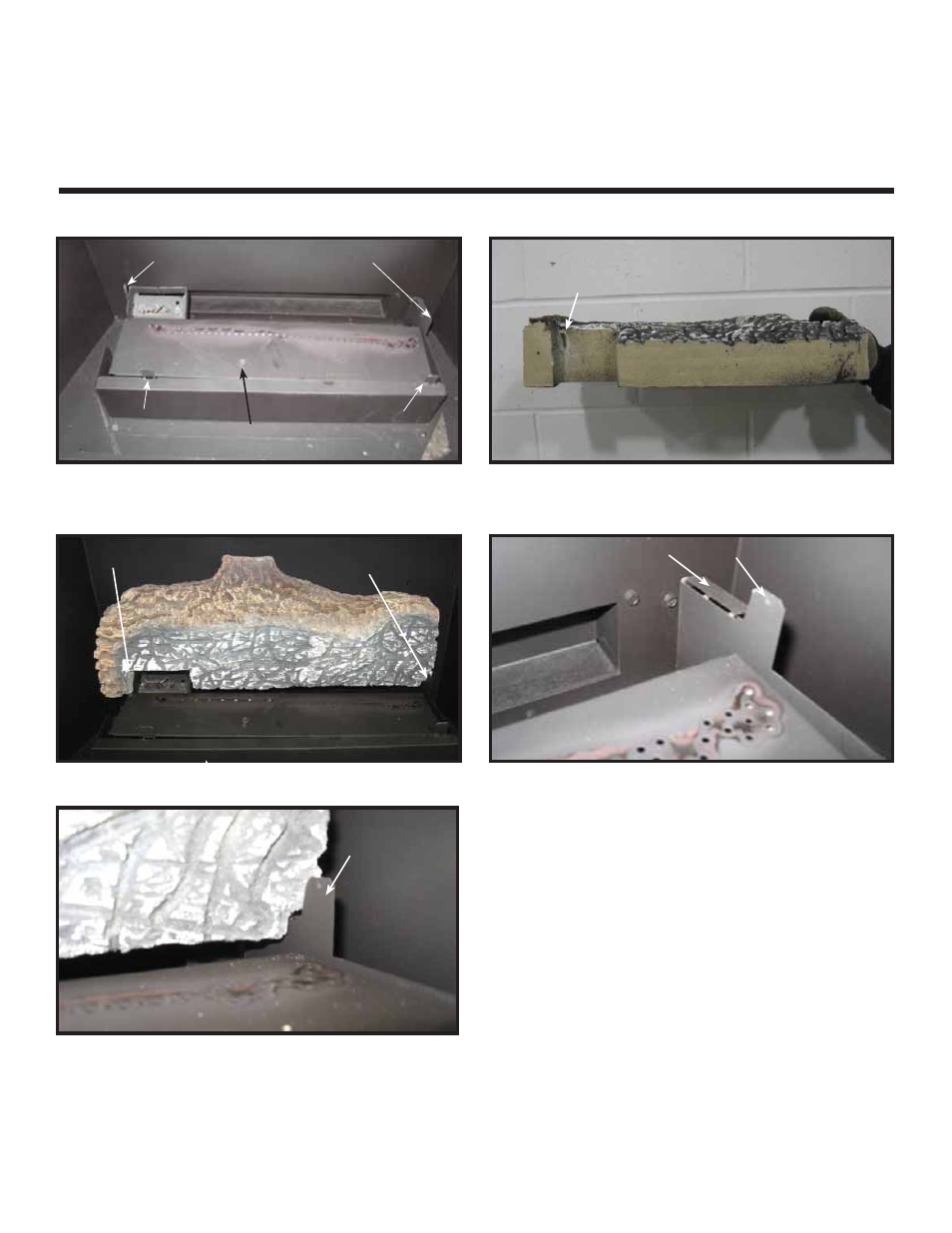

Use the log locating features in Figure 1 to properly posi-
tion the logs.
1
1
Log #1 (SRV2158-700)
Mate slot A (shown in Figure 2) with Tab A (shown in Figure 1). Position Log #1 behind Tab
B as shown in Figure 5. When properly positioned, Log #1 will touch Tab B and sit on Log Rest. See Figure 4 to reference
the position of Tab B and the log rest .
Position log behind tab B
(See Figure 4 and 5 )
2158-935B
