Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. G • 2/13 28
Figure 7.10

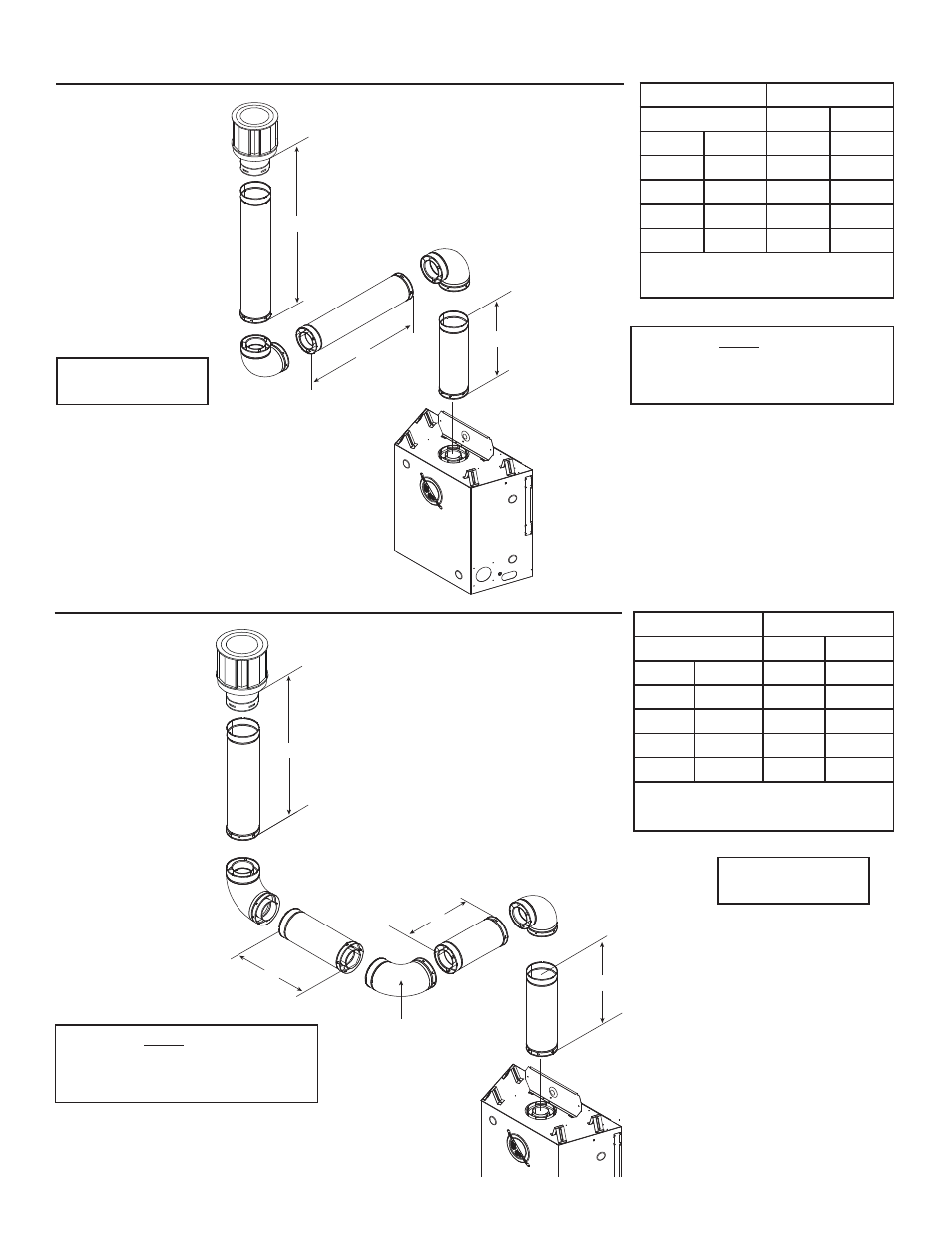

2. Top Vent - Vertical Termination - (continued)
Three Elbows
Figure 7.9
Two Elbows
Note: Use SLP Series
components only.
V
1
Minimum H
1
Maximum
90 Elbow Only 1-1/2 ft. 457 mm
1/2 ft. 152 mm 2 ft. 610 mm
1-1/2 ft. 457 mm 3 ft. 914 mm
2-1/2 ft. 762 mm 5 ft. 1.5 m
3-1/2 ft. 1.1 m 7 ft. 2.1 m
4-1/2 ft. 1.4 m 15 ft. 4.6 m
H
1
MAX. =15 ft. (4.6 m)
V
1
+ V
2
+ H
1
MAX. = 40 ft. (12.2 m)
V
1
Minimum H
1
+ H
2
Maximum
90 Elbow Only 1/2 ft. 152 mm
1/2 ft. 152 mm 1 ft. 305 mm
1-1/2 ft. 457 mm 2 ft. 610 mm
2-1/2 ft. 762 mm 4 ft. 1.2 m
3-1/2 ft. 1.1 m 6 ft. 1.8 m
4-1/2 ft. 1.4 m 14 ft. 4.3 m
H
1
+ H
2
MAX. =14 ft. (4.3 m)
V
1
+ V
2
+ H
1
+ H
2
MAX. = 40 ft. (12.2 m)
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 7.3).
Note: There MUST be a 25% reduction
in total H when using fl ex vent except
when using the simple up and out
installation (see Figure 7.3).
Note: Use SLP Series
components only.
H
1
V
1
V
2
INSTALLED
HORIZONTALLY
H
1
H
2 V
1
V
2
