27 Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. G • 2/13

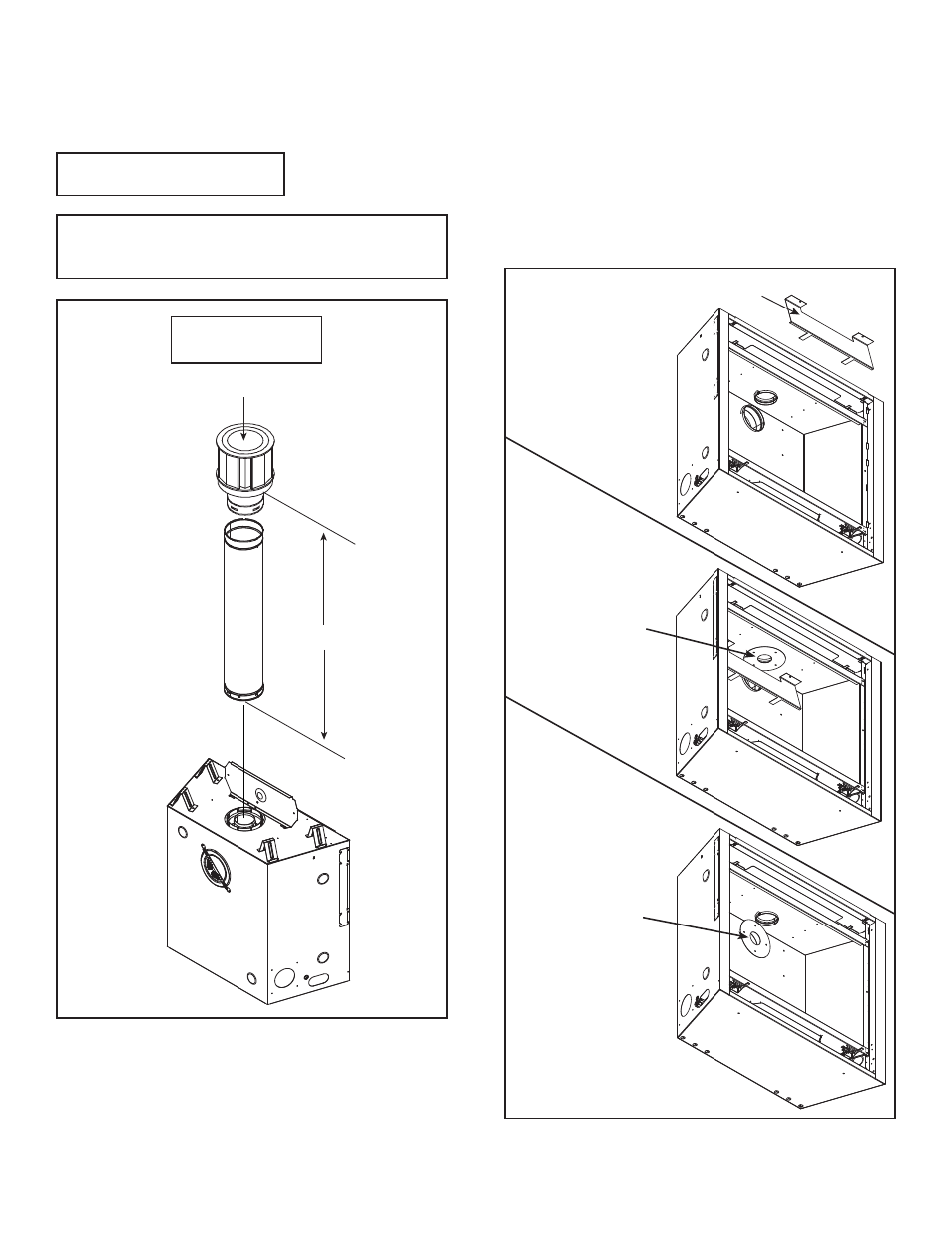

2. Top Vent - Vertical Termination
Figure 7.7
CAP
V
1
V
1
= 60 ft. Max. (18.3 m)
Top Vent - Vertical Termination
No Elbows
Figure 7.8
EXHAUST BAFFLE
Top Vent Application
Rear Vent Application
Exhaust restrictors are recommended for these verti-
cally terminated products which have excessive draft.
Exhaust restrictors will compensate for high draft, and
restore visual fl ame height. If the vent confi guration has
a total vertical of 15-60 feet, an exhaust restrictor may
be needed. The exhaust restrictor can be located in the
appliance manual bag.
Note: Be sure to rein-
stall the exhaust baffl e
after exhaust restrictor
installation.
Exhaust restrictor
Exhaust restrictor
Exhaust restrictor Instructions
1. Install the exhaust restrictor over the center of the ex-
haust outlet in the fi rebox (see Figure 7.8).
2. Center the exhaust restrictor in the open end of the
exhaust outlet and secure through the slots on the ex-
haust restrictor with the 2-1/4 in. self tapping screws
provided in the appliance manual bag.
To access the exhaust
openings, remove the ex-
haust baffl e. To remove
exhaust baffl e, remove
the two wing nuts.
Note: If installing a vertical vent/termination off the top of
the appliance, the optional vertical termination baffl e may
be needed.
Note: Use SLP Series
components only.
