59 Hearth & Home Technologies • DV3732SBI, DV3732SBIL • 2215-900 Rev. G • 2/13
A. Remove Fixed Glass Assembly
See Section 14.G.
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Contact your dealer for a list of ap-
proved accessories.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
E. Lava Rock, Rockwool/Ember Placement
WARNING! Risk of Explosion! Follow ember placement
instructions in manual. DO NOT place embers directly over
burner ports. Replace ember material annually. Improperly
placed embers interfere with proper burner operation.
Placing the Lava Rock
See Section 14F for Lava Rock placement instructions.
• Place lava rock on base pan. Do NOT place on burner
top.
Placing the Ember Material
Ember material is shipped with this gas appliance. To place
the ember material:
• Embers CANNOT be placed directly over ports. See
Figure 14.4 for the only exception to this guideline. Care
should be taken not to cover the lighting trail of ports
(from back to front).
• When placing Glowing Embers ® onto the burner care
should be taken so that the ports are not covered. Place
the dime-size ember pieces near the port holes in the
burner top (see Figure 14.3). Failure to follow this pro-
cedure will likely cause lighting and sooting problems.
• Some of the small port holes should be covered with
ember material. See Figure 14.4 for detail.
• Save the remaining ember materials for use during
appliance servicing. The embers provided should be
enough for 3 to 5 applications.
Figure 14.4 Placement of Embers
14 14

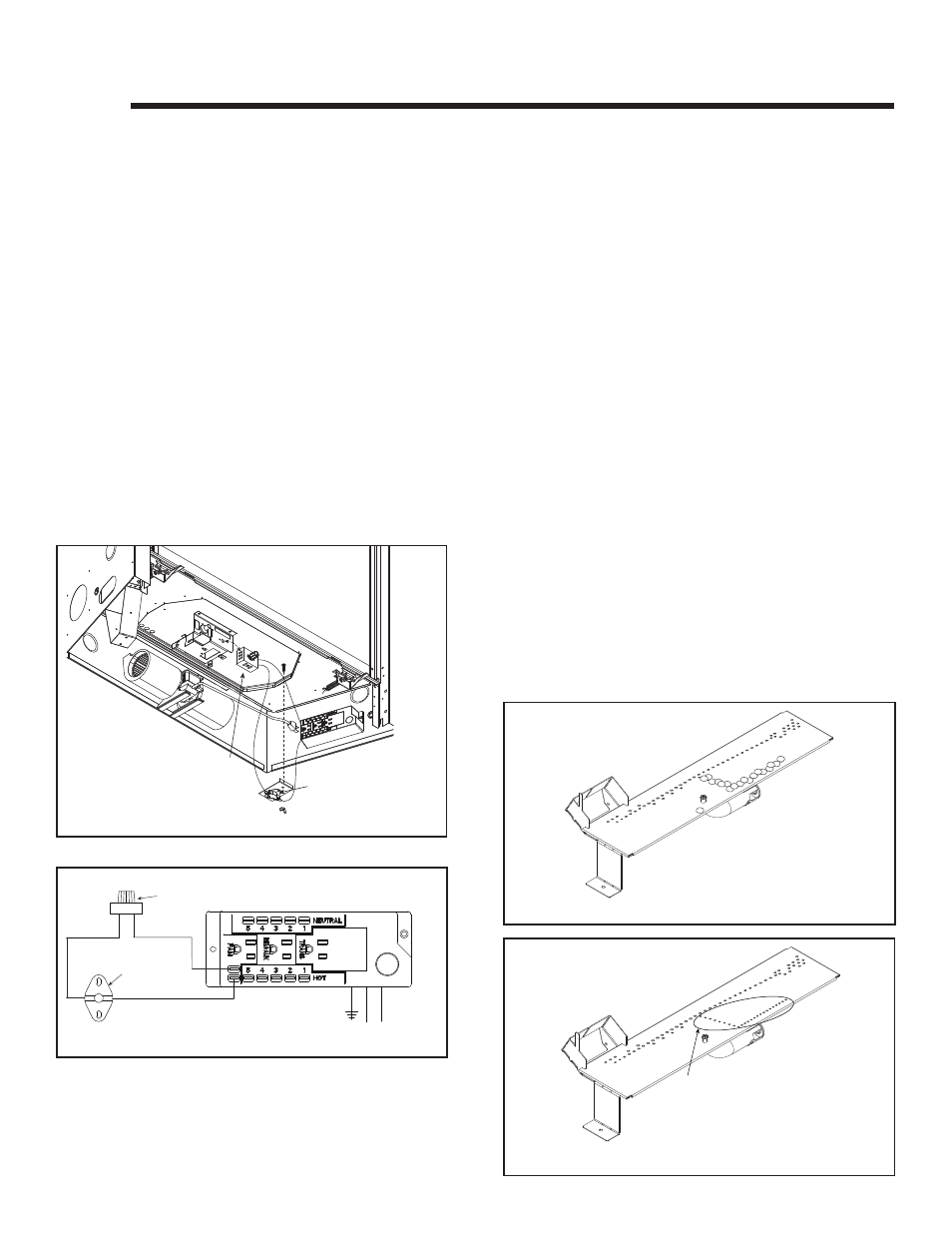

Appliance Setup
RHEOSTAT
SWITCH
TEMPERATURE
SENSOR
Figure 14.1 Fan Wiring with Rheostat
BLUE
VARIABLE
SPEED SWITCH
TEMPERATURE
SENSOR SWITCH
JUNCTION BOX
Figure 14.2 Detail of Fan Wiring with Rheostat
PORT HOLES IN CIRCLED AREA
SHOULD BE COVERED WITH EMBER
MATERIAL. NO OTHER PORT HOLES
MAY COME INTO CONTACT WITH
EMBER MATERIAL.
Figure 14.3 Placement of Embers
