D. Doors
Only doors certifi ed for use with this appliance model may
be used. Contact your dealer for a list of doors that may
be used. Once you have determined what kind of door
and fi nishing material is going to be used on the fi replace,
you may use the table below which shows the door mod-
els and the fi nishing material thickness allowed. For an
inside fi t there is an available template to assist with siz-
ing the fi nishing material.
UNITS AND
TEMPLATE PART #
DV3732SBI, DV3732SBIL (550-Template)
DOOR FIT
FINISH MATERIAL
THICKNESS
SEE
FIGURE
X Y
Aero-32 Inside 4 inches Max. 13.17 N/A N/A
Chad-32E Overlap 1 inch Max. 13.18 N/A N/A
Chad-32E Inside 1-4 inches 13.19 32-3/8 in. 30-3/8 in.
Halston-32E Overlap 1 inch Max. 13.18 N/A N/A
Halston-32E Inside 1-4 inches 13.20 32-3/8 in. 30-3/8 in.
Stop fi nishing material fl ush with fi replace surround opening.
X
(Includes 1/8 in. opening each side of door)
Y
X
(Includes 1/8 in. opening each side of door)
Y
FINISHING MATERIAL
4 IN. MAXIMUM THICKNESS
DOOR
FINISHING MATERIAL
4 IN. MAXIMUM THICKNESS
DOOR
FINISHING MATERIAL
4 IN. MAXIMUM
THICKNESS
FINISHING MATERIAL
4 IN. MAXIMUM
THICKNESS
1 in. MAX
FINISHING MATERIAL
(TOP EDGE)
DOOR
FRONT FACE OF FIREPLACE
FINISHING
MATERIAL FINISHING
MATERIAL
*IF FINISHING MATERIAL IS THICKER THAN
2 IN., DOORS WILL ONLY OPEN
AS FAR AS PICTURED
DOORS

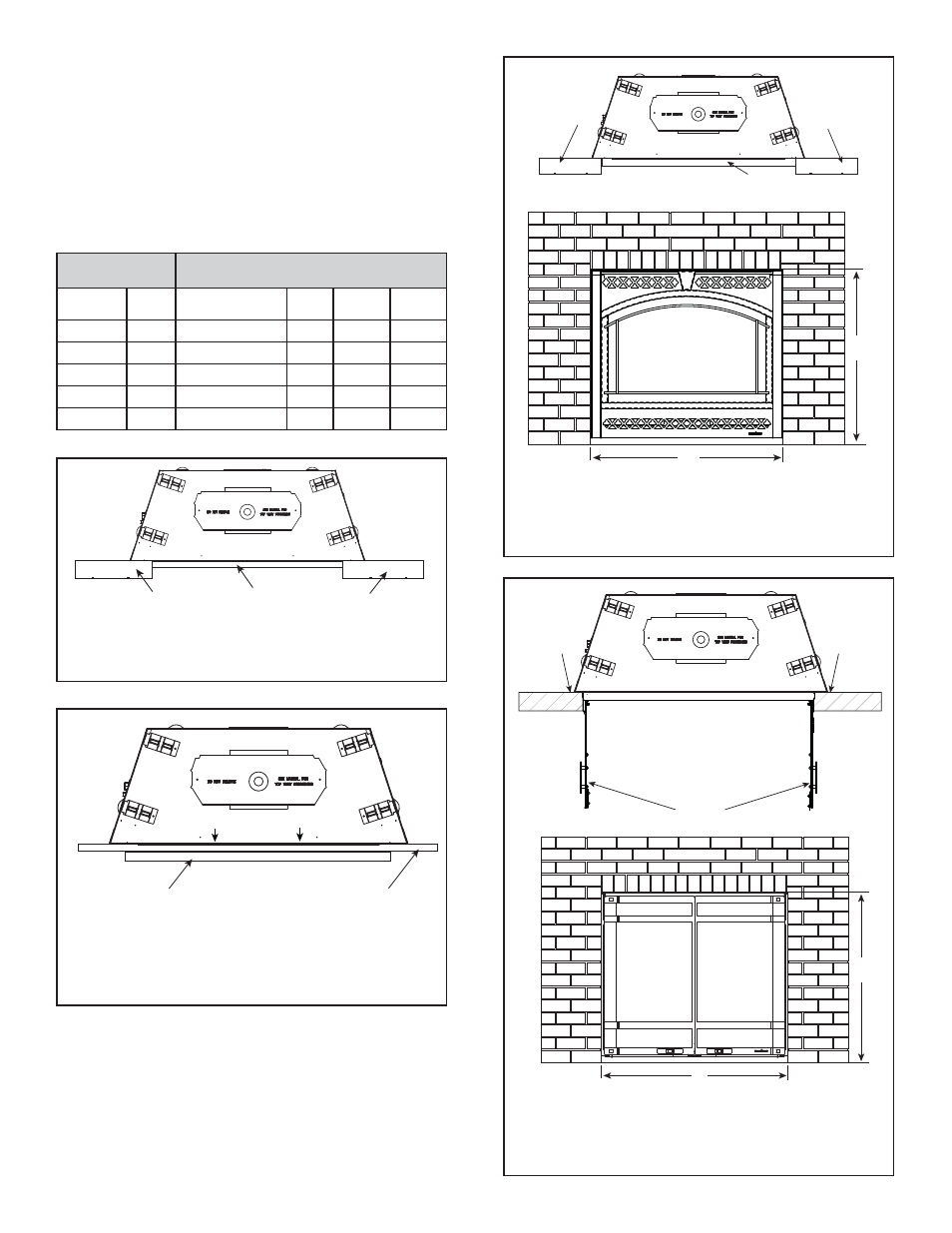

Figure 13.17 Aero Door
Figure 13.19 Inside Fit Door (Chad)
Figure 13.20 Operable Hinge Door (Halston)
Finishing material between 1 and 4 inches thick.
Refer to Table 1 for X and Y dimensions.
Figure 13.18 Overlap Fit Door (Chad and Halston)
Finishing materials 1 inch maximum thick.
Stop fi nishing material fl ush with opening.
Finishing material between 1 and 4 inches thick.
Refer to Table 1 for X and Y dimensions.
