Hustler Turf Lawn Mower - Manual (Page 70)

7-4 365262 4/07

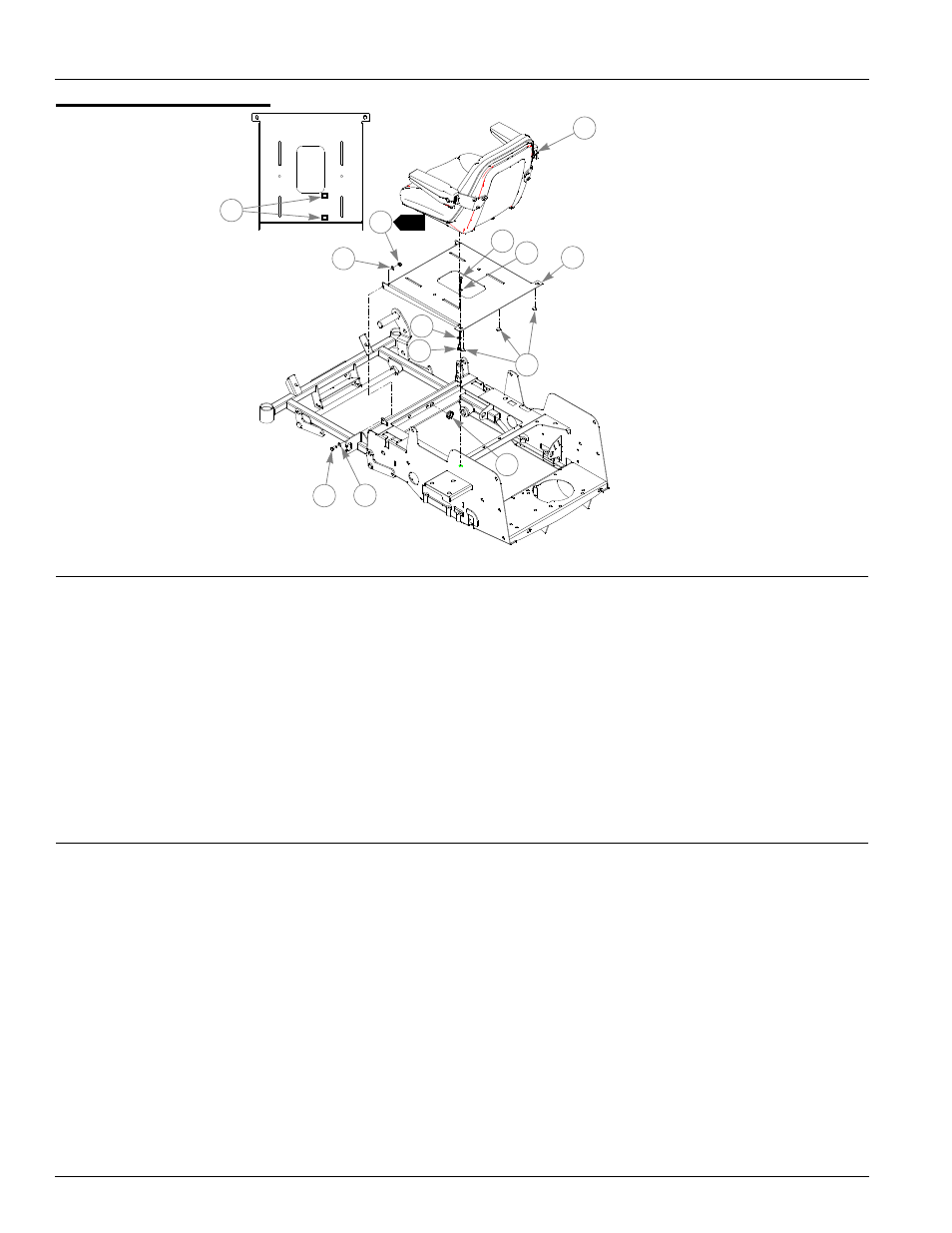

Seat Installation
NOTES:
1. Do not torque, Item 3 (363507 Seat Support) must pivot.
2. Service parts (Michigan Seat):
3. Service parts (Milsco Seat):
INDEX
NO.
SERVICE
PART NO.
MFG. PART
NO.
QTY. DESCRIPTION
1 058776 058776 2 NT .312-18 HX NL ZNYC
2 768523 768523 10 FW .343 X .687 X .051/.080HD ZNYC
3 363507 363507 1 SEAT SUPPORT
4 064014 064014 4 CS .312-18 X .875 HX G5 ZNYC
5 781617 781617 3 RUBBER BUMPER
6 080358 080358 1 GM .50 X 1.00 X .75 X .12
7 047654 047654 2 CLIP
8 792226 792226 1 SEAT
9 034280 034280 4 CS .312-18X .750 HX G5 ZNYC
793315 SEAT SWITCH KIT
797464 ARMREST ASSEMBLY L.H.
797472 ARMREST ASSEMBLY R.H.
797480 MOLDED ARMREST KIT
782177 OPERATOR PRESENCE SWITCH
1
SEAT SUPPORT
FROM
BOTTOM
8
1
2
2
2
9
4
3
2 4
5
6
7
