Connector pin assignments – HP dc5700 User Manual
Page 141
Service Reference Guide, dc5700
437804-001
A–1
A

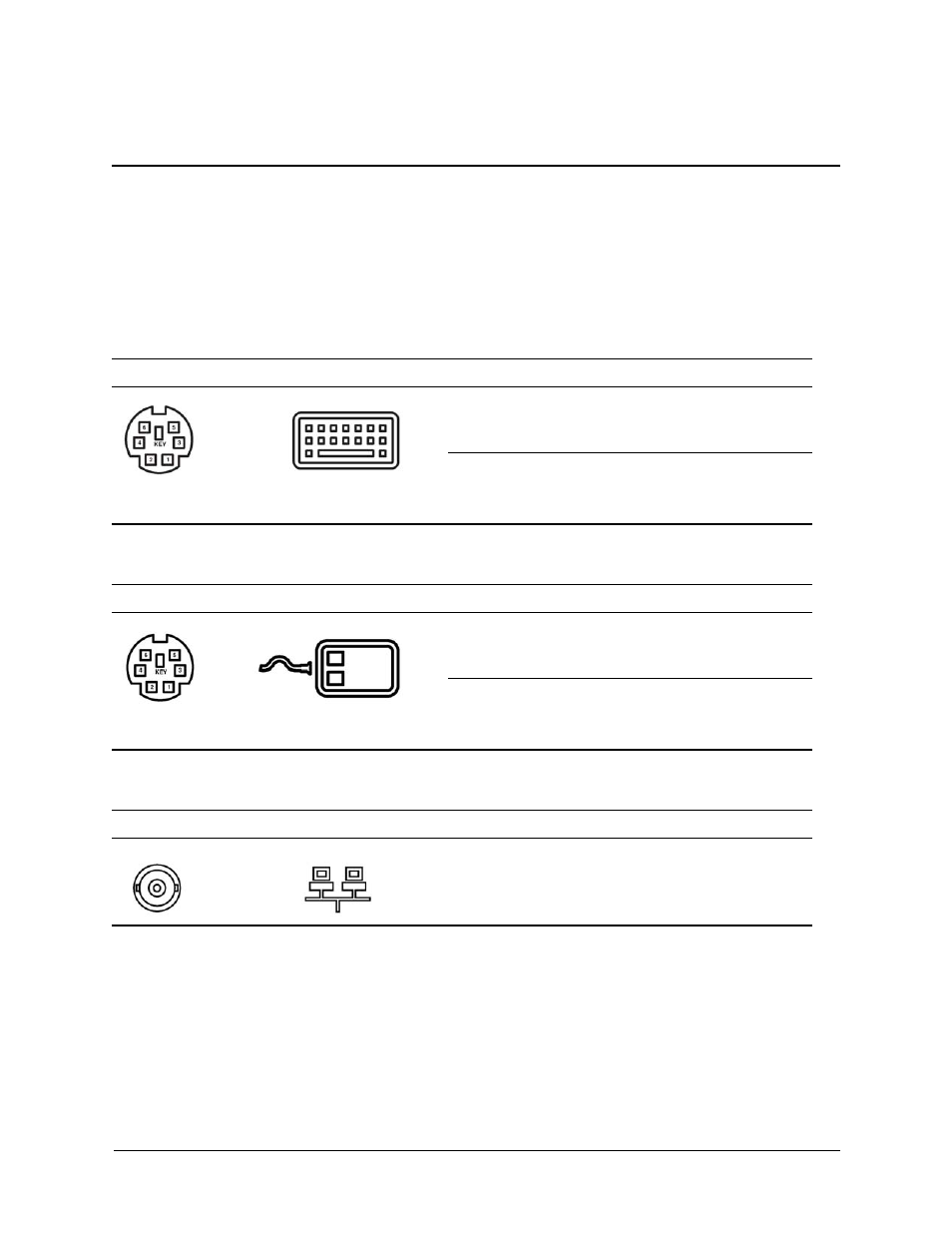

Connector Pin Assignments
This appendix contains the pin assignments for many computer and workstation connectors.
Some of these connectors may not be used on the product being serviced.
Keyboard
Connector and Icon
Pin
Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Mouse
Connector and Icon
Pin
Signal
1
2
3
Data
Unused
Ground
4
5
6
+5 VDC
Clock
Unused
Ethernet BNC
Connector and Icon
Pin
Signal
1 (Center)
Data
2 (Shield)
Ground
