13 chassis fan – HP dc5700 User Manual
Page 128
7–24
437804-001
Service Reference Guide, dc5700
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.13 Chassis Fan
1. Prepare the computer for disassembly (
Section 7.1
).
2. Remove the access panel (
Section 7.3
).
3. Remove the fan shroud (
Section 7.11
).
4. Disconnect the chassis fan power cable from the system board.

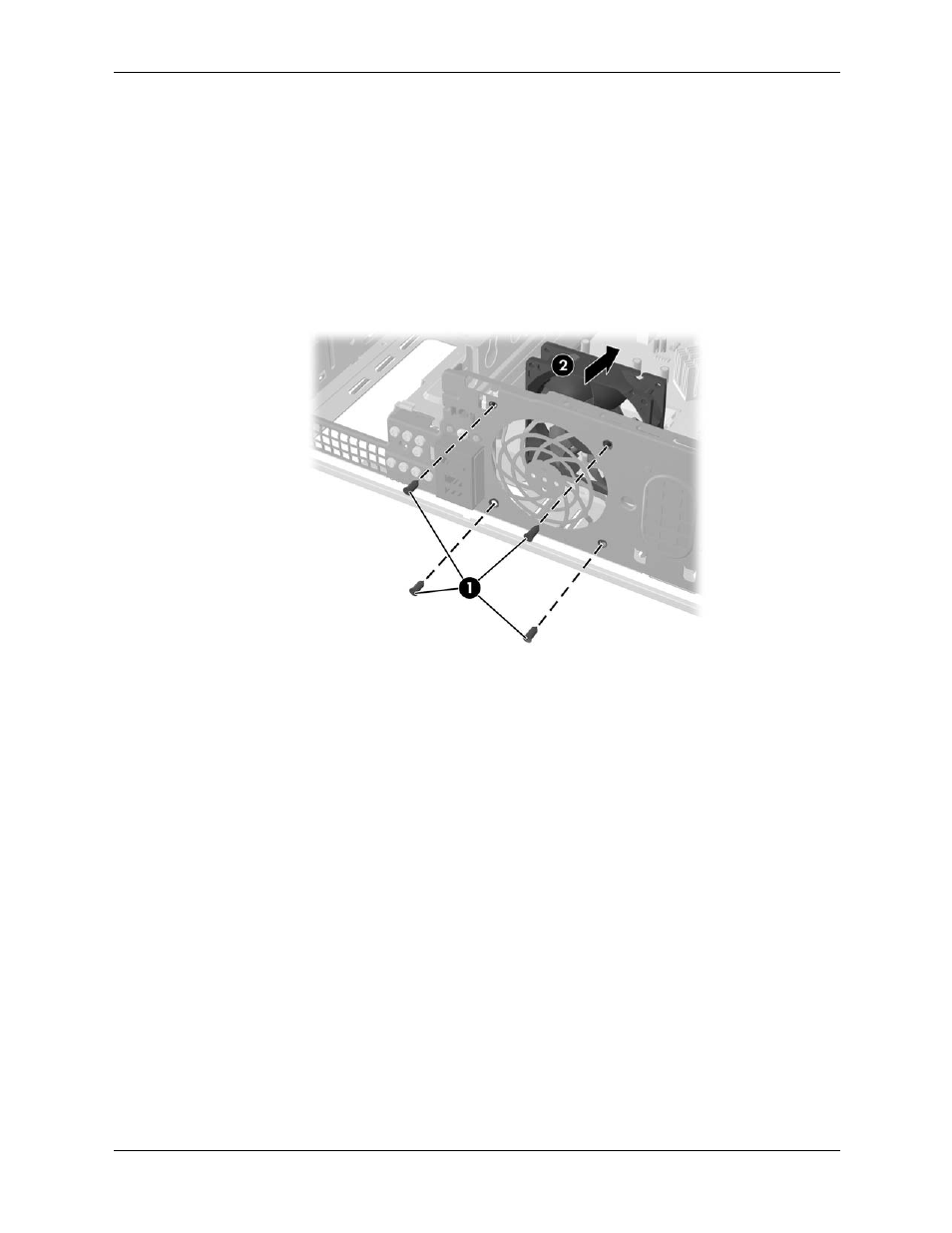

5. Remove the four screws 1 that secure the chassis fan to the front of the chassis then, remove
the fan 2.
To install the chassis fan, reverse the removal procedures.
