Overview 11

Item Description

1

Server with UPS Power Protection Agent installed

2 Network
3

UPS with management module installed

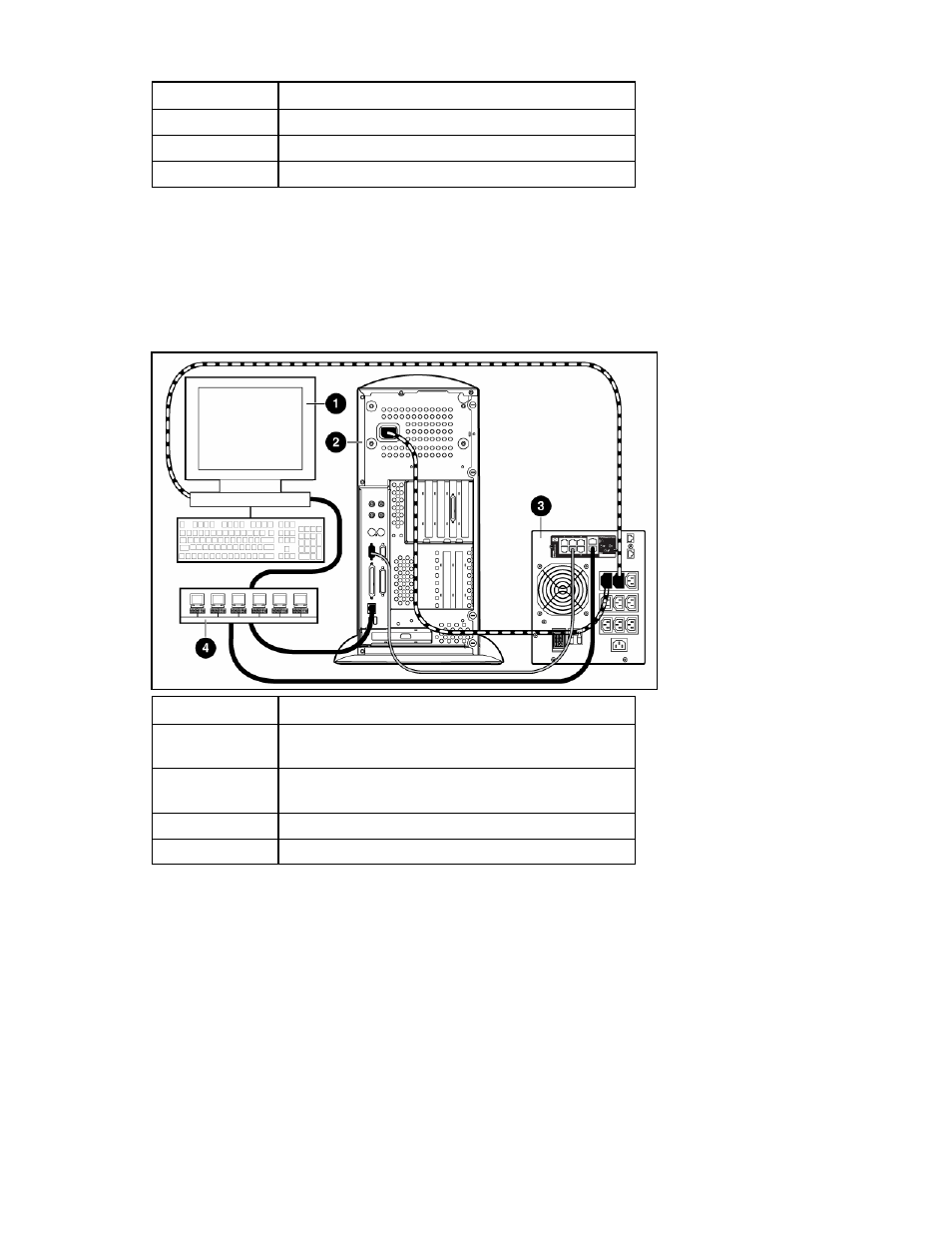

Configuration C

This figure illustrates a UPS with a management module installed that is serially attached to a server
running the UPS Power Protection Agent. The server is plugged into a load segment of the UPS, and is

able to monitor, manage, and control the UPS. The management module is also connected to a network

where another server running the UPS Power Protection Agent monitors the UPS.

Item Description

1

Network server with UPS Power Protection Agent
installed

2

Server with UPS Power Protection Agent installed that is
serially attached to the UPS

3

UPS with management module installed

4 Network
