The NAC Controller Policy Configuration
Enterasys NAC Controller Hardware Installation Guide 6-19

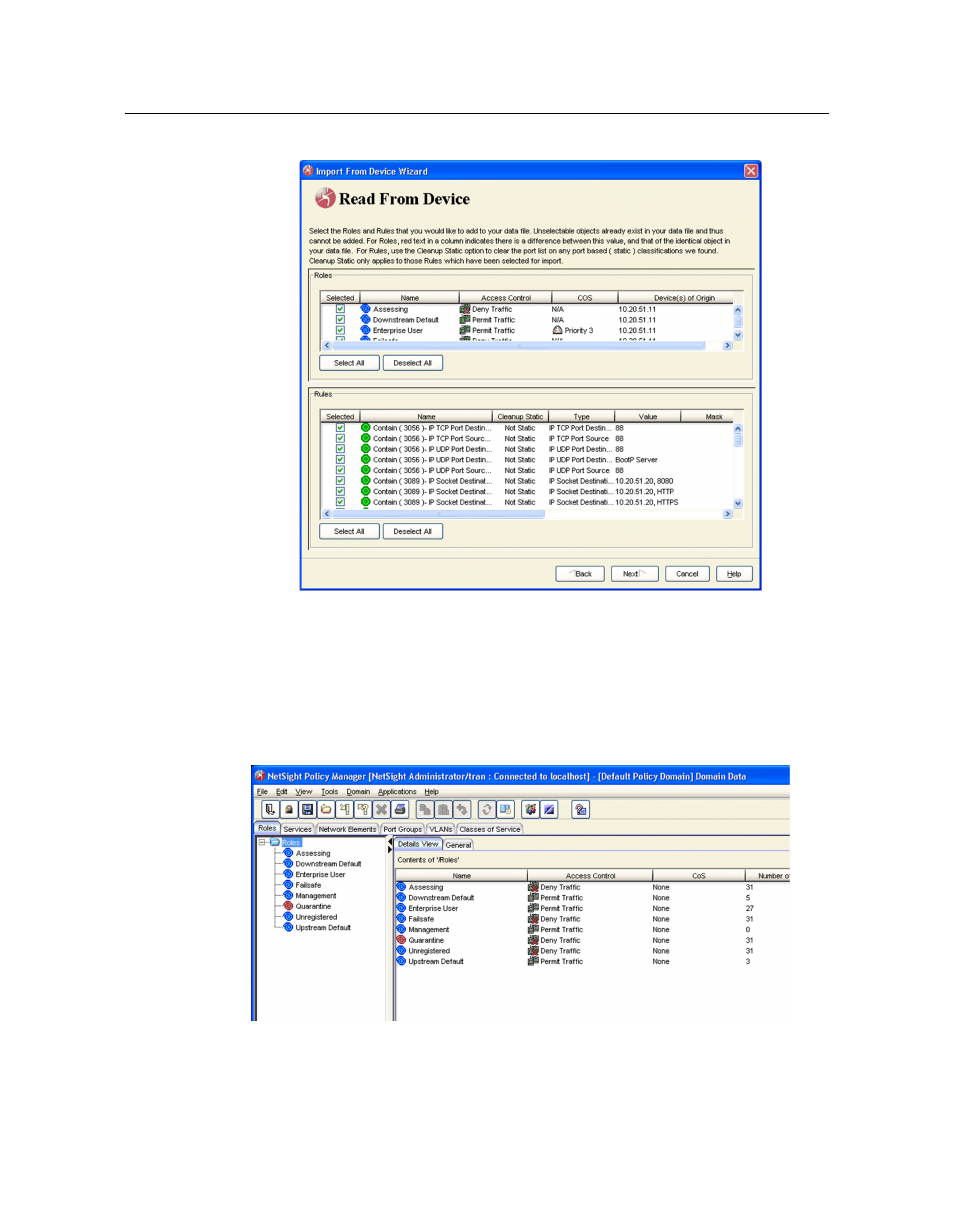

Figure 6-26 Import From Device Wizard
4. The Organize and Update window will display. Click the Next button to procced.
5. The Merge Rules window will display. Click the Next button to procced.
6. The Roles screen displays as shown in Figure 6‐27 . You need to assure that the Assessing and
Quarantine services are properly configured. Click on the Services tab to access the Services
screen.
Figure 6-27 Roles Screen
7. In the Services tab, expand Local Services and under Local Services expand Manual Services.
The screen that displays will be similar to
Figure 6‐28 on page 6‐20. Select the role under
