Connecting to COM Port for Local Management
Enterasys NAC Controller Hardware Installation Guide 4-15
5. When these parameters are set, the Local Management password screen will display. Refer to
the appropriate Enterasys Matrix DFE‐Diamond/Platinum Series Configuration Guide for further
information.

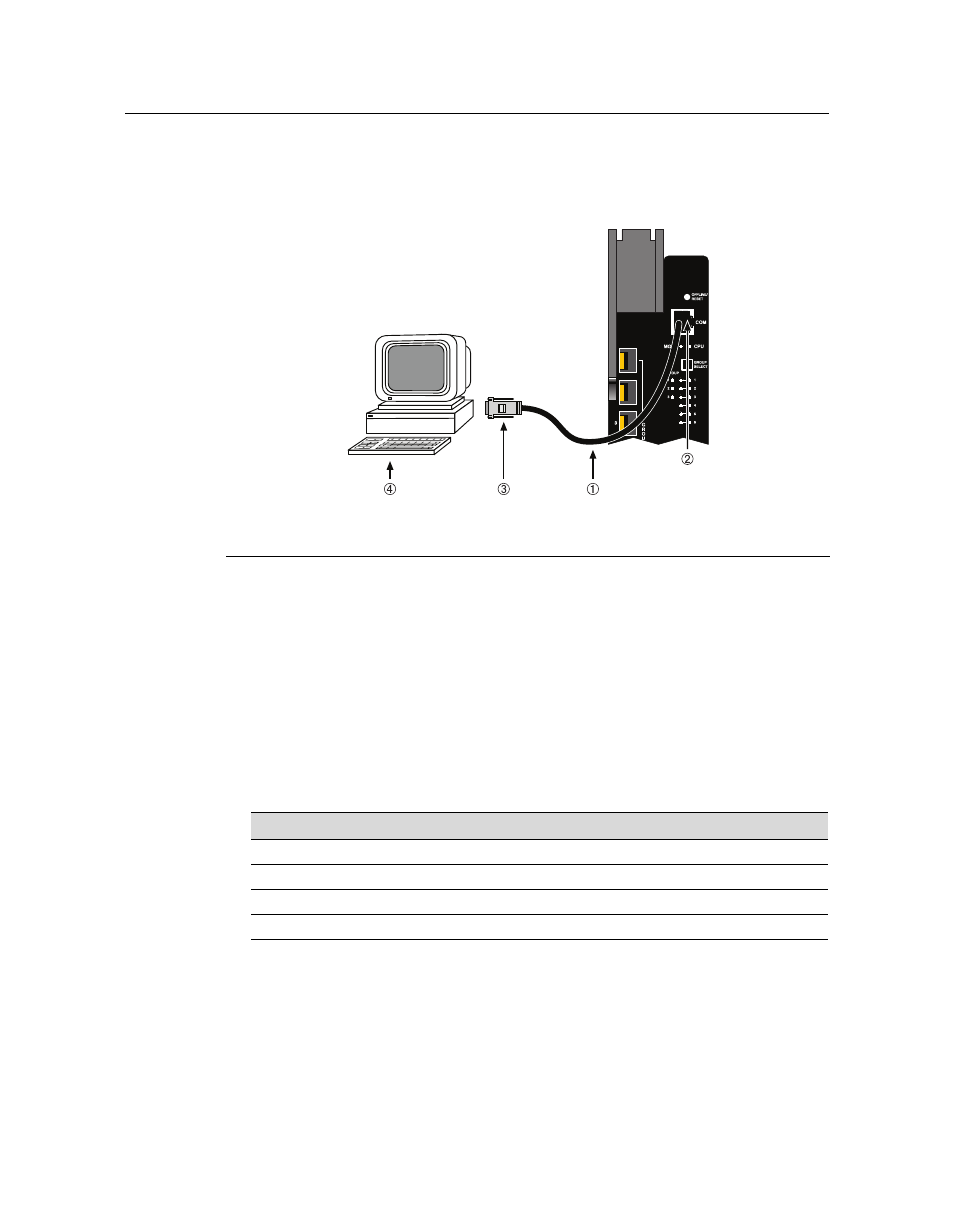

Figure 4-12 Connecting an IBM PC or Compatible
Connecting to a VT Series Terminal
To connect a VT Series terminal to an Enterasys Networks chassis COM port ( Figure 4‐13 ), use a
UTP straight‐through cable with RJ45 connectors and an RJ45‐to‐DB25 female adapter, and
proceed as follows:
1. Connect the RJ45 connector at one end of the UTP straight‐through cable to the COM port on
the Enterasys Networks module.
2. Plug the RJ45 connector at the other end of the UTP straight‐through cable into the
RJ45‐to‐DB25 female adapter.
3. Connect the RJ45‐to‐DB25 adapter to the port labeled COMM on the VT terminal.
4. Turn on the terminal to access the Setup Directory and set the following parameters:
When these parameters are set, the Local Management password screen will display. Refer to the
Enterasys Matrix DFE‐Diamond/Platinum Series Configuration Guide for further information.
1 UTP straight-through cable with RJ45 connectors 3 RJ45-to-DB9 PC adapter
2 RJ45 COM port 4 IBM PC or compatible device
Parameter Setting
Mode 7 Bit Control
Transmit Transmit=9600
Bits Parity 8 Bits, No Parity
Stop Bit 1 Stop Bit
