The NAC Controller Policy Configuration
6-16 Initializing the NAC Controller
The NAC Controller Policy Configuration
Review the following considerations prior to configuring policy on NAC Controller PEP devices:
Setup the VLAN Configurations
NAC Controller PEP VLAN configuration must conform with the requirements of your network
topology. During NAC Controller Engine management initialization for Out‐Of‐Band
management configurations, you entered a management VLAN for this NAC Controller. For
Out‐Of‐Band configurations, this management VLAN entered during initialization is pushed
down to the PEP.
For In‐Band management, the NAC Controller management VLANs are configured. The
management VLANS are VLAN 1 for L2 and VLAN 90 for L3. There are also a number of VLANs
configured such as 3056 for Port Mirroring or 3089 for Quarantine. It is important that you note
these defaults and determine if they are desirable or in conflict with VLANs already present in
your network.
To display current VLAN settings and make any changes to VLAN configurations provide a
console connection to the NAC Controller PEP host.0.1.
For L2 access to the CLI for NAC Controller PEP configuration, connect the console to the NAC
Controller PEP COM port. The COM port location is shown in
Figure 6‐23 . The NAC Controller
PEP CLI prompt will display.

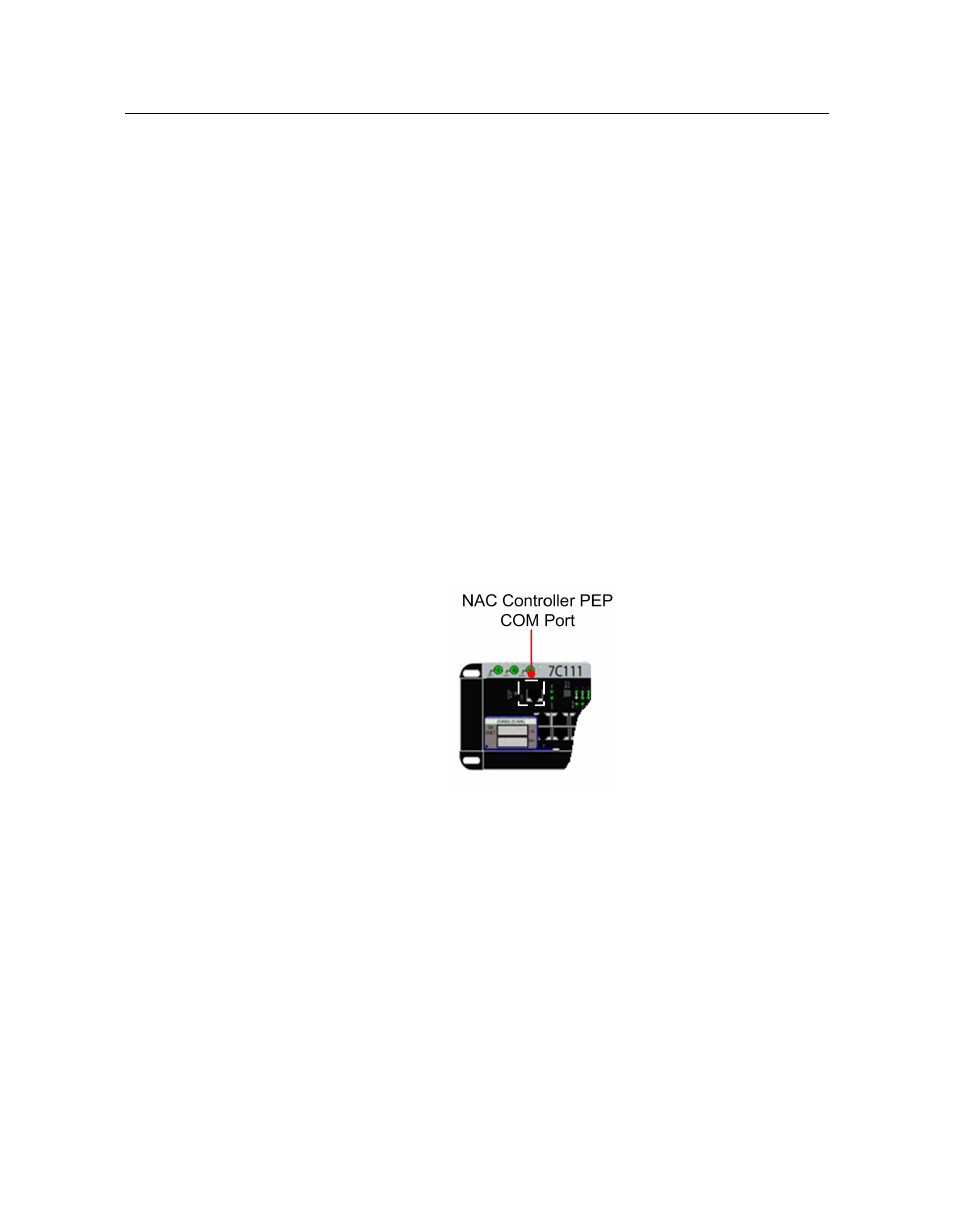

Figure 6-23 NAC Controller PEP COM Port Location
Use the show port vlan host.0.1 command to display the current VLAN configuratin for this NAC
Controller PEP. Use the show vlan command to display all configured VLANs. Once you have
determined changes that may be required, reference the DFE‐Platinum and Diamond Series
Configuration Guide for information pertaining to VLAN configuration.
NAC Controllers Require Separate Domains
The NAC Controller can be configured in one of two modes of operation: L2 or L3. The mode of
operation controls how connecting end systems are detected by the NAC Controller on the
network and is selected based on where the NAC Controller is positioned in the network in
relation to these end systems. If the NAC Controller is positioned before the first routed boundary
for connecting end systems closer to the access edge of the network, the L2 NAC Controller mode
is utilized. If the NAC Controller is positioned after the first routed boundary deeper inside the
network, the L3 NAC Controller mode is utilized.
