Completing the Installation
4-18 NAC Controller PEP Installation
Completing the Installation
In a new system of NAC Controller PEPs, the installed NAC Controller PEP becomes the
management module on chassis power up, and the NAC Controller PEP will automatically be set
to the factory default values. A complete list of the factory default values are provided in Chapter
3 of the Enterasys Matrix DFE‐Diamond/Platinum Series Configuration Guide.
After installing the NAC Controller PEP into the N1 chassis and making the connections to the
network, proceed to the following
First‐Time Log‐In Using a Console Port Connection procedure
to access the module management startup screen from your PC, terminal, or modem connection.

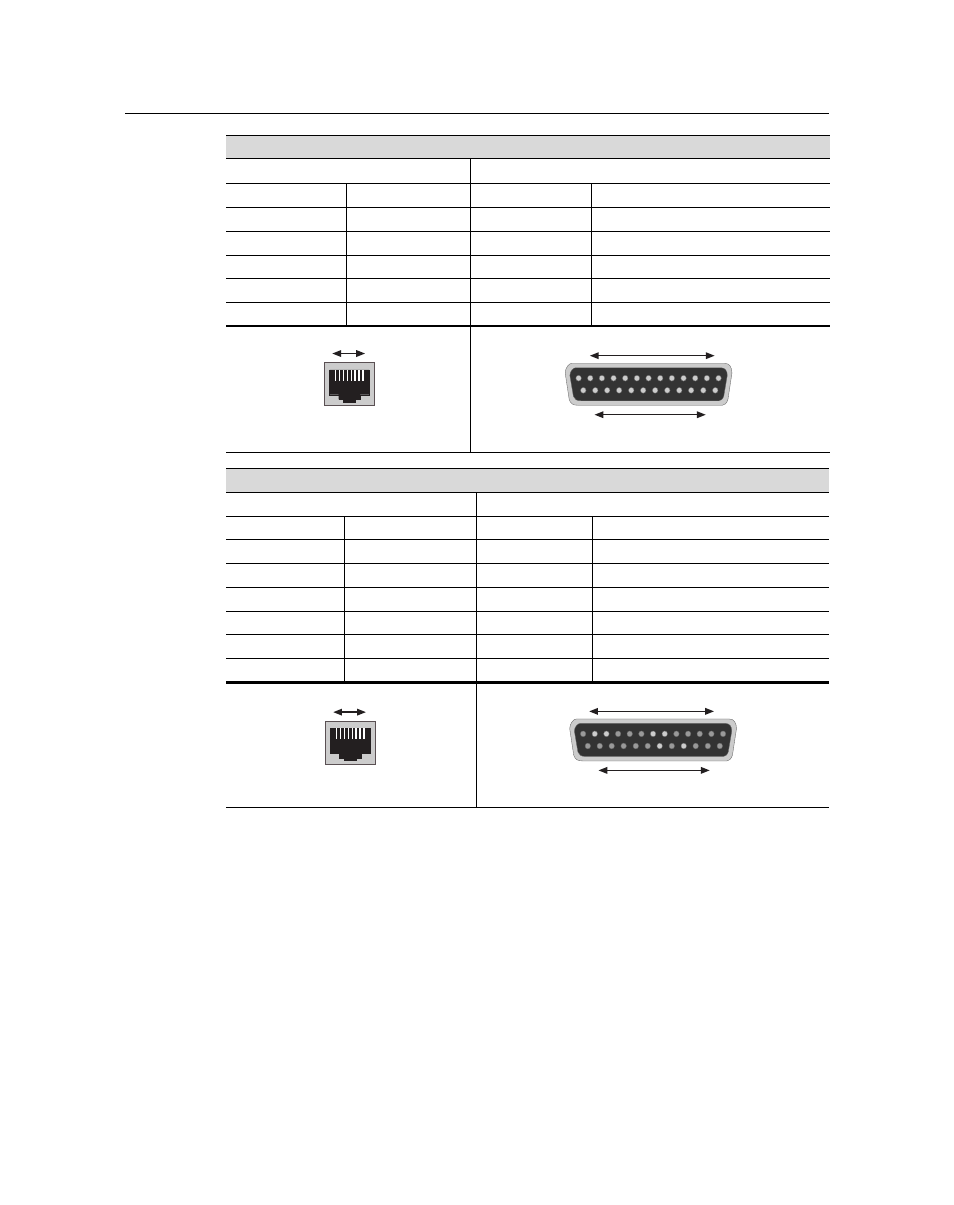

VT Series Port Adapter Wiring and Signal Diagram
RJ45 DB25
Pin Conductor Pin Signal
4 Red 2 Transmit (TX)
1 Blue 3 Receive (RX)
6 Yellow 5 Clear to Send (CTS)
5 Green 7 Ground (GRD)
2 Orange 20 Data Terminal Ready
Modem Port Adapter Wiring and Signal Diagram
RJ45 DB25
Pin Conductor Pin Signal
1 Blue 2 Transmit (TX)
2 Orange 8 Data Carrier Detect (DCD)
4 Red 3 Receive
5 Green 7 Ground (GRD)
6 Yellow 20 Data Terminal Ready (DTR)
8 Gray 22 Ring Indicator
RJ45 Connector (Female)
8 1
Pins
DB25 Connector (Female)
Pins
1 13
14 25
RJ45 Connector (Female)
8 1
Pins
DB25 Connector (Male)
13 1
Pins
14 25
