Memory Locations and Replacement Procedures
Enterasys NAC Controller Hardware Installation Guide B-3

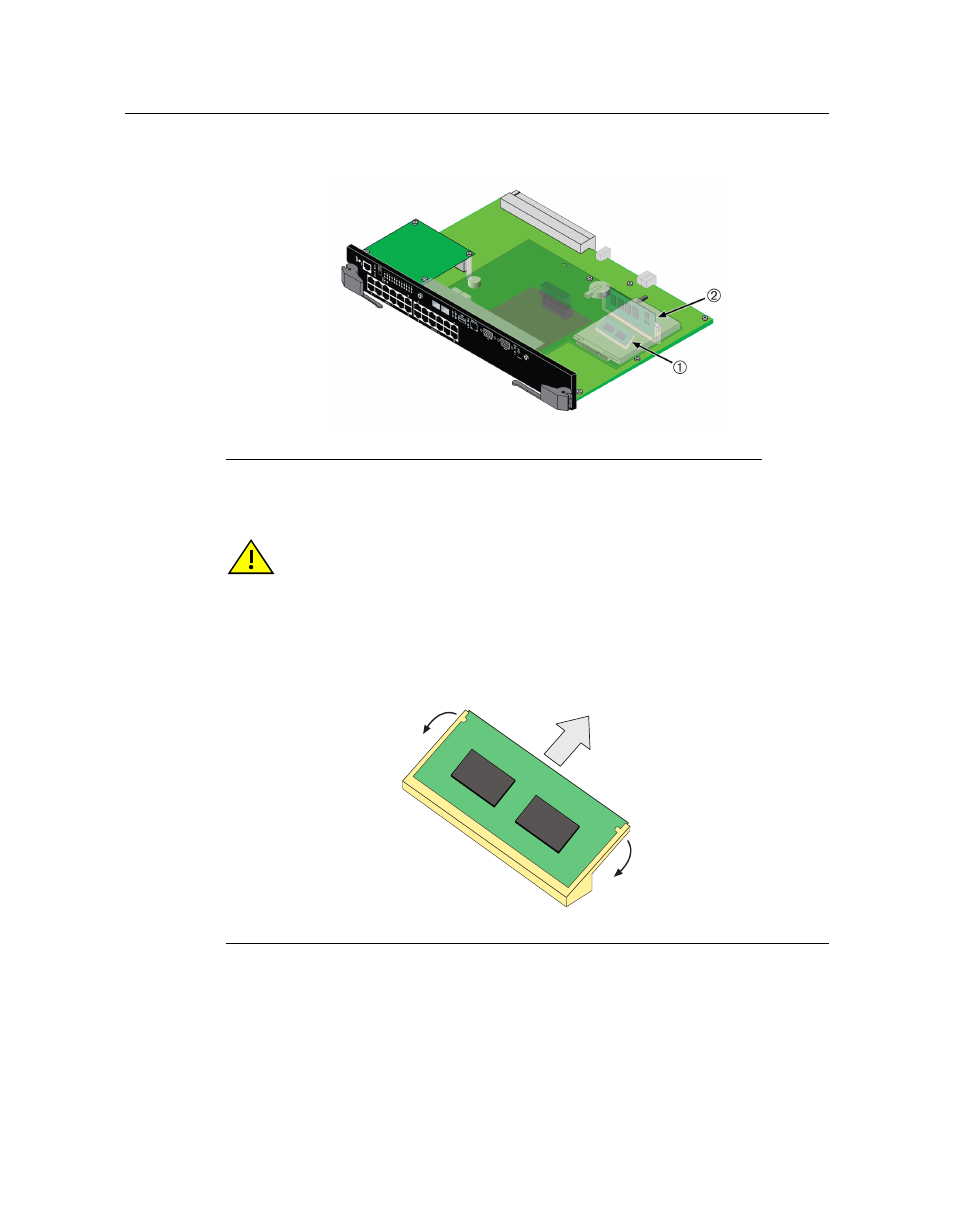

Figure B-2 DIMM and DRAM SIMM Locations for the NAC Controller PEP (2S4082-25
shown)
Flash DIMM Replacement Procedure
1. Refer to Figure B‐3 . Push the connector arms away from the DIMM and simultaneously lift the
DIMM enough to release it from the connector fingers.
Figure B-3 Removing the Existing DIMM
2. Rotate the DIMM upwards, then remove it from the connector fingers.
1 Flash DIMM 2 DRAM SIMM
Caution: Observe all Electrostatic Discharge (ESD) precautions when handling sensitive electronic
equipment.
Precaución: Al trabajar con equipos electrónicos sensibles, tome todas las precauciones de
seguridad para evitar descargas de electricidad estática.
1 Connector arms 2 DIMM 3 Connector fingers
