Preparar la pantalla para instalación

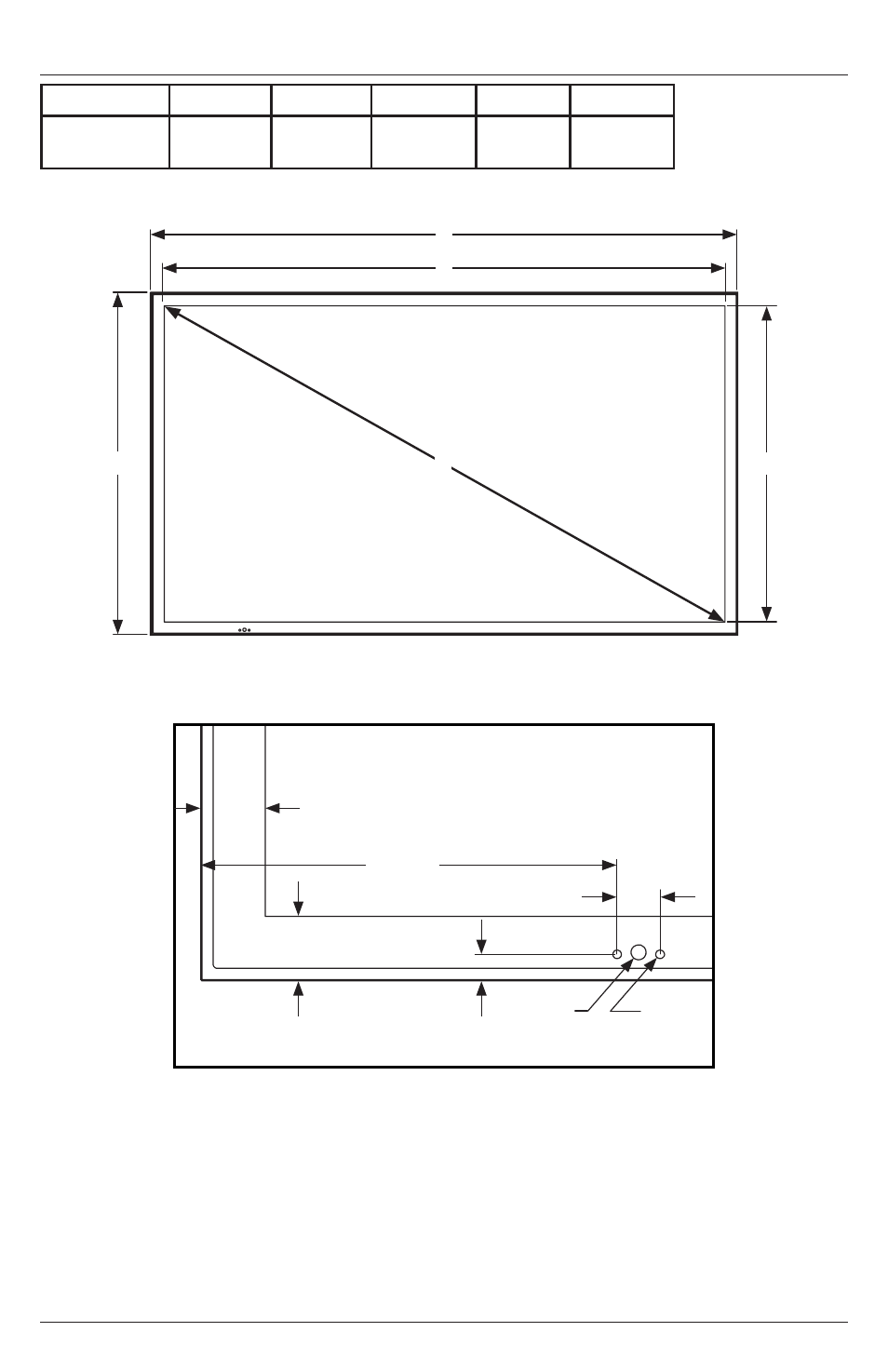

VISTA DELANTERA

MARCO / VISTA DETALLADA DEL SENSOR INFRARROJO

Pantalla

A

B

C

D

E

75"

67.86"

(1724mm)

39.45"

(1002mm)

64.94"

(1650mm)

36.54"

(928mm)

74.52"

(1893mm)

C

A

B

D

E

1.46"

(37mm)

1.46"

(37mm)

.79"

(20mm)

6.46"

(164mm)

Ø 0.16"

(4mm)

Ø 0.28"

(7mm)

.53"

(14mm)
