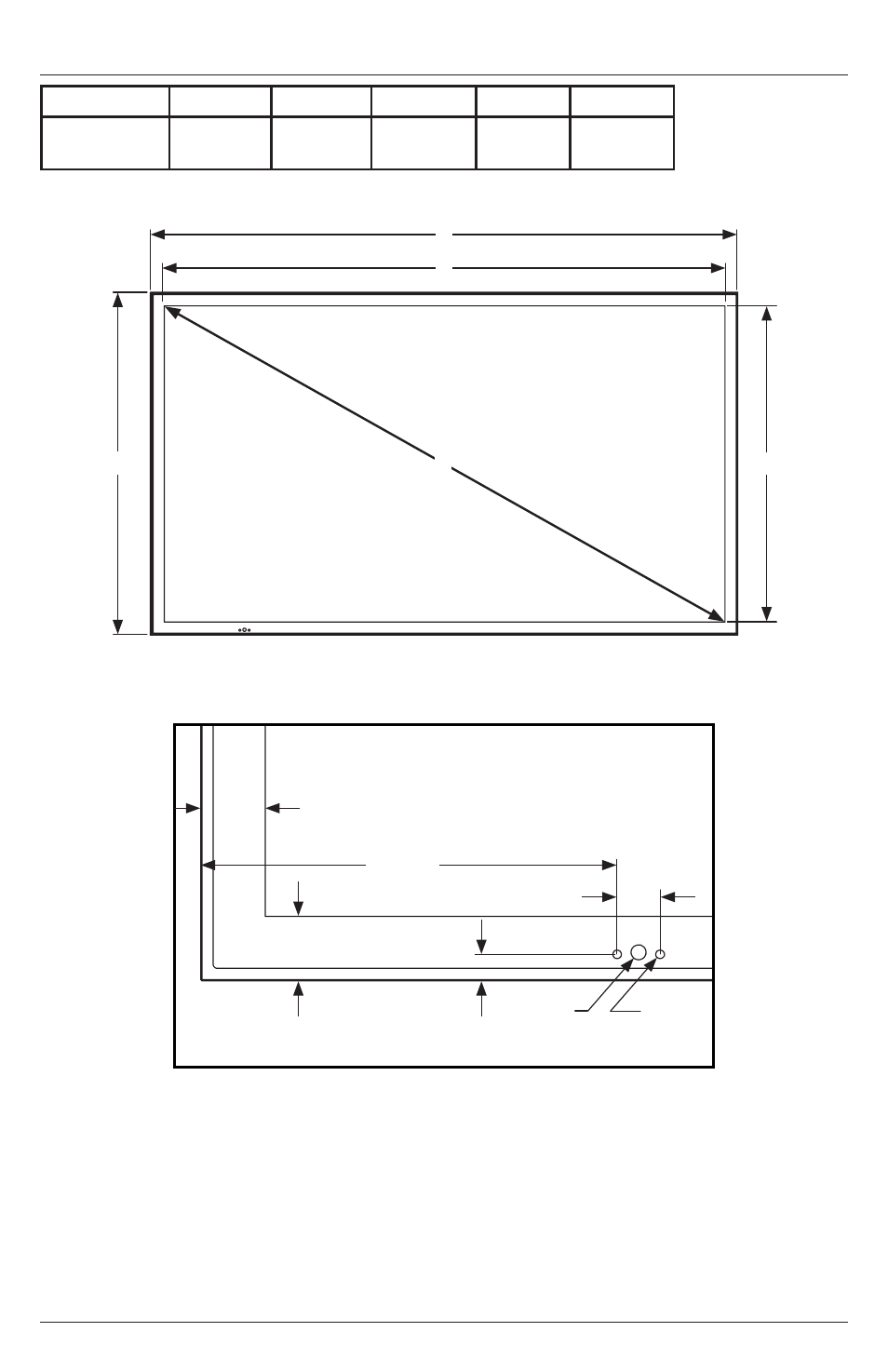

Prepare the Display for Mounting
Display Size A B C D E
75"
67.86"
(1724mm)
39.45"
(1002mm)
64.94"
(1650mm)
36.54"
(928mm)
74.52"
(1893mm)
FRONT VIEW
C
A
B D E
BEZEL / IR DETAIL VIEW
1.46"
(37mm)
1.46"
(37mm)
.79"
(20mm)
6.46"
(164mm)
Ø 0.16"
(4mm)
Ø 0.28"
(7mm)
.53"
(14mm)
