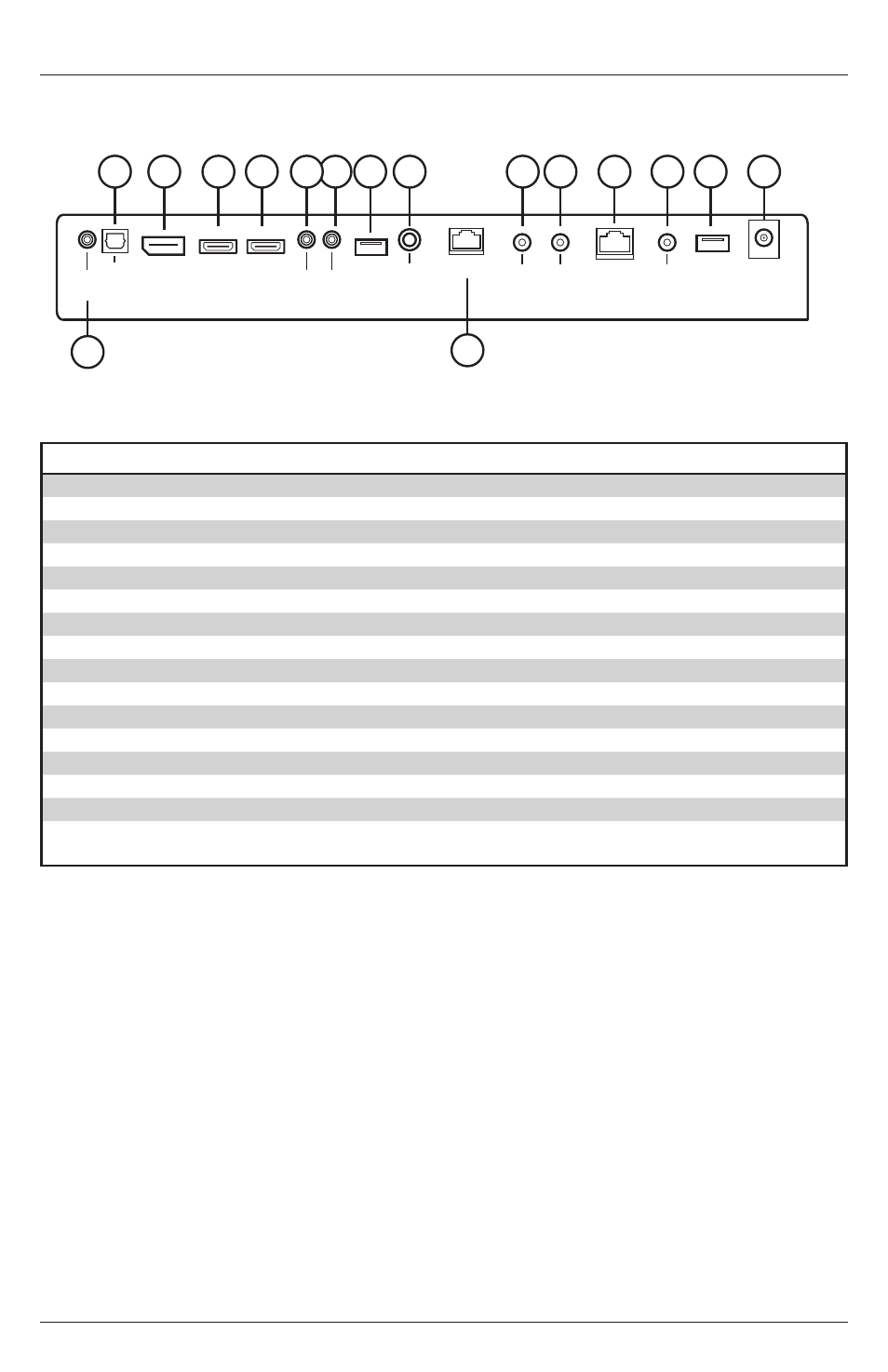

Connecting Cords
Connect source devices to appropriate display input. Make all connections prior to powering on the
display. The USB 2.0 Data port is for service and media only. For 5VDC power, use the 5VDC power
port.
4 5 15
16
14 13 12 11 10 7 9 3 2
1
8
Connection Type Description
1 Analog Audio Output Provides Analog Stereo Output
2 S/PDIF Digital Audio Output Supports Digital Audio
3 DisplayPort Input Supports UHD Digital AV
4 HDMI2 Input Supports UHD Digital AV / ARC / peerConnect (CEC)
5 HDMI1 Input Supports UHD Digital AV / peerConnect (CEC)
6 Mini AV Input Supports Composite Video and Stereo Audio
7 Mini Component Input Supports Component Video and Audio
8 USB 2.0 Data Port Input Supports Text / Photo / Video; Firmware upgrades
9 Ambient Light Extender Input Ambient light sensor sold separately
10 IR Extender Input Supports the included IR Extender
11 IR Repeater Output IR emitter/repeater sold separately
12 LAN Port Supports Network Control and Monitoring*
13 RS232C Input Supports Serial Control of the display, input
14 5V DC Output Supplies 5V DC, 3.5A
15 12V DC Output Supplies 12V DC, 2.0A
16 HDBaseT Supports Uncompressed Video and Audio, IP Control and
network connectivity not supported.
*Visit www.peerless-AV.com product page to download Monitoring Instructions.
