Replacing Cord Cover

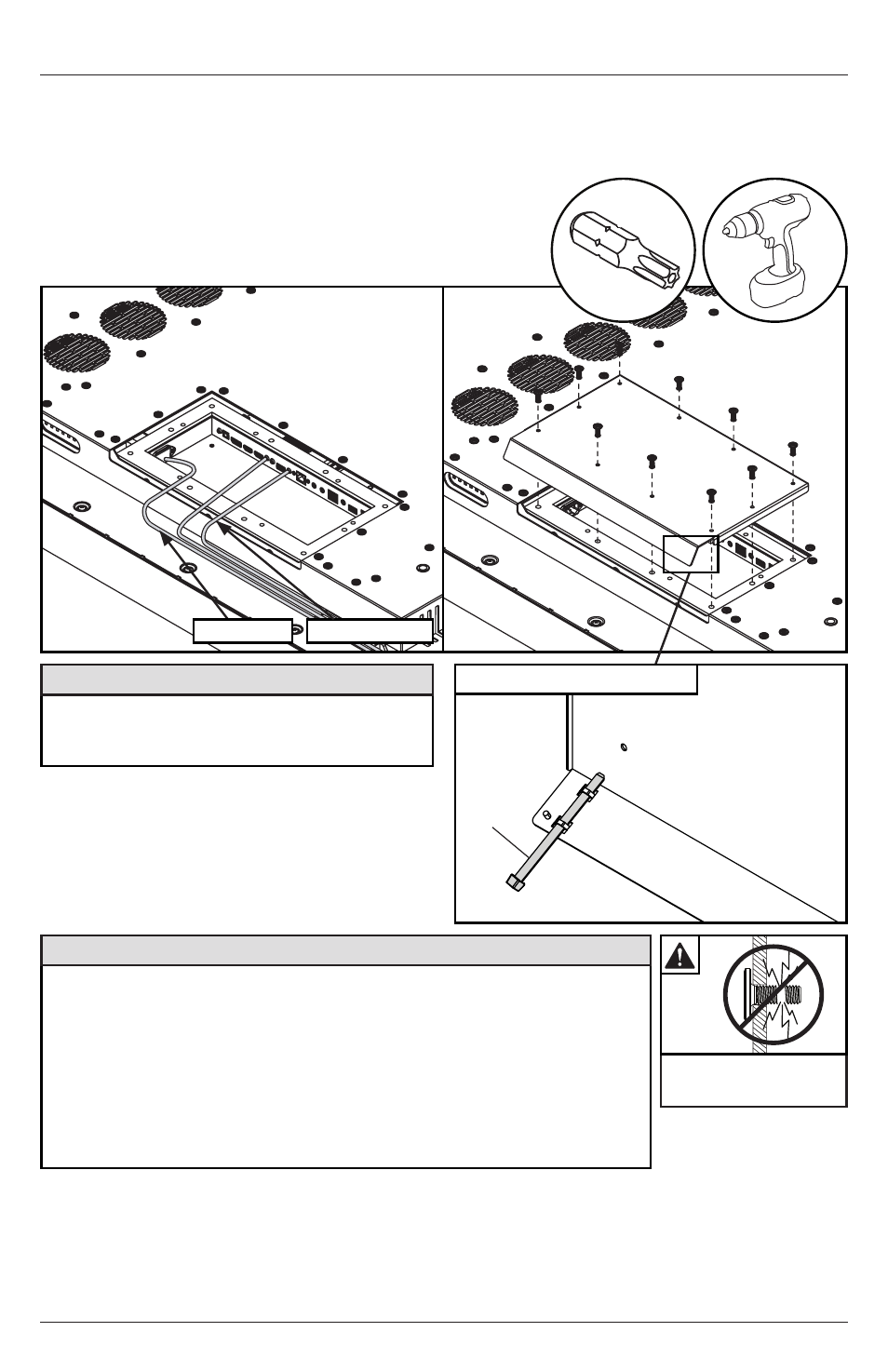

1. Run power and signal cords; separate cables to prevent unwanted interference (see image 1
below).
2. Replace the rear cover plate using the ten screws on the rear cover plate using drill with torx bit
or torx screwdriver to secure. Ensure the rear cover plate is fully compressed to the back of the
display.
• Ensure cord bend radius does not exceed limits set by the
manufacturer.
• Ensure cords are seated properly to avoid potential damage to cords
when rear cover plate is installed.
• Do not remove lanyard that connects the rear cover plate to the display.
• Ensure cables exiting input compartment are routed downward when
installing display in portrait orientation. If the installation requires the
cabling to be routed upward, ensure that the cables are routed with a
drip loop.
CAUTION
Do not overtighten
screws.
1 2
CAUTION
Failure to follow these instructions can result
in the product being damaged or destroyed,
voiding the warranty.
power cord signal cords
Optional: cable management
