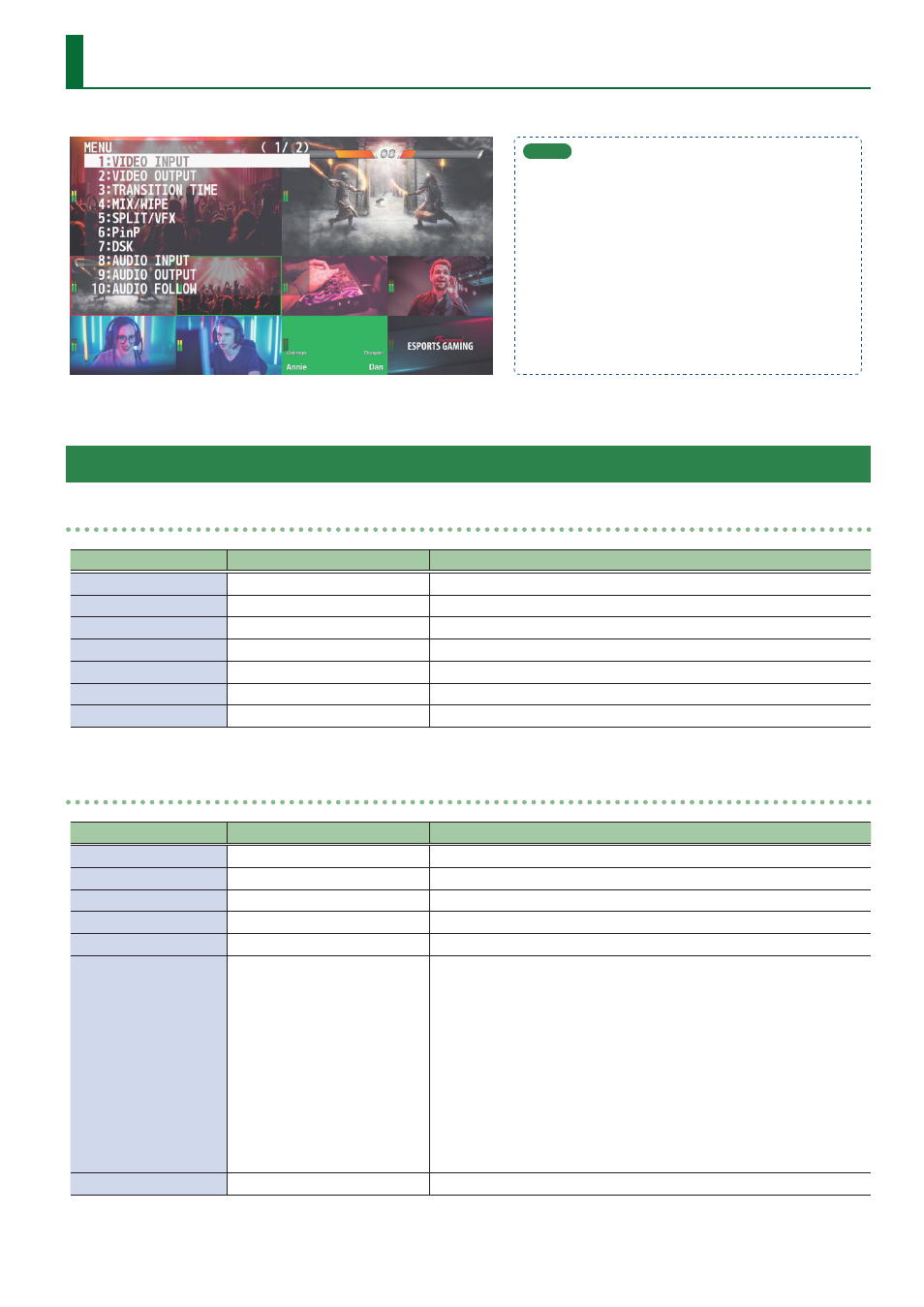

Menu List
When you press the [MENU] button, the menu is shown on this unit’s monitor and on the display that’s connected to the OUTPUT 3 connector.
MEMO
5 When a setting value has menu items that let you make
more-detailed settings, “ENTER” is displayed at the top of
the screen. Press the [VALUE] knob to go down a level.
5 To execute an operation, press the [VALUE] knob.
5 You can change a setting value rapidly by holding down
the [VALUE] button and turning.
5 Long pressing the [EXIT] button returns the currently
selected setting to its default value.
1: VIDEO INPUT
INPUT 1–6
Menu item Value
(Bold: default)
Explanation
INPUT STATUS ENTER Displays information about the incoming video (format, size, etc.).
INPUT ASSIGN HDMI , STILL 1–8 Selects the input source.
FLIP H OFF , ON If this is “ON,” the video is input with left and right flipped.
FLIP V OFF , ON If this is “ON,” the video is input with top and bottom flipped.
BRIGHTNESS -64– 0 –63 Adjusts the brightness.
CONTRAST -64– 0 –63 Adjusts the contrast.
SATURATION -64– 0 –63 Adjusts the saturation.
INPUT 7, 8 (SCALER)
Menu item Value
(Bold: default)
Explanation
INPUT STATUS ENTER Displays information about the incoming video (format, size, etc.).
INPUT ASSIGN HDMI , STILL 1–8 Selects the input source.
FLICKER FILTER OFF , ON If this is “ON,” flickering is reduced.
FLIP H OFF , ON If this is “ON,” the video is input with left and right flipped.
FLIP V OFF , ON If this is “ON,” the video is input with top and bottom flipped.
EDID
INTERNAL
SVGA (800x600)
XGA (1024x768)
WXGA (1280x800)
FWXGA (1366x768)
SXGA (1280x1024)
SXGA+(1400x1050)
UXGA (1600x1200)
WUXGA (1920x1200)
720/59.94p
1080/59.94i
1080/59.94p Specifies the input format (EDID).
If this is “INTERNAL,” EDID information for all formats that can be input to the
V-8HD will be transmitted.
What is EDID?
EDID is data that is transmitted from the V-8HD to the source device when the
V-8HD is connected to a source device. EDID contains data such as the formats
that can be input to the V-8HD (resolution, color space, color depth) and audio
information.
Based on the EDID information that the source device receives, it will output
the most appropriate video format to the V-8HD.
ZOOM 10.0– 100.0 –1000.0% (*1) Adjusts the zoom ratio.
