1.4. Hardware

Placement

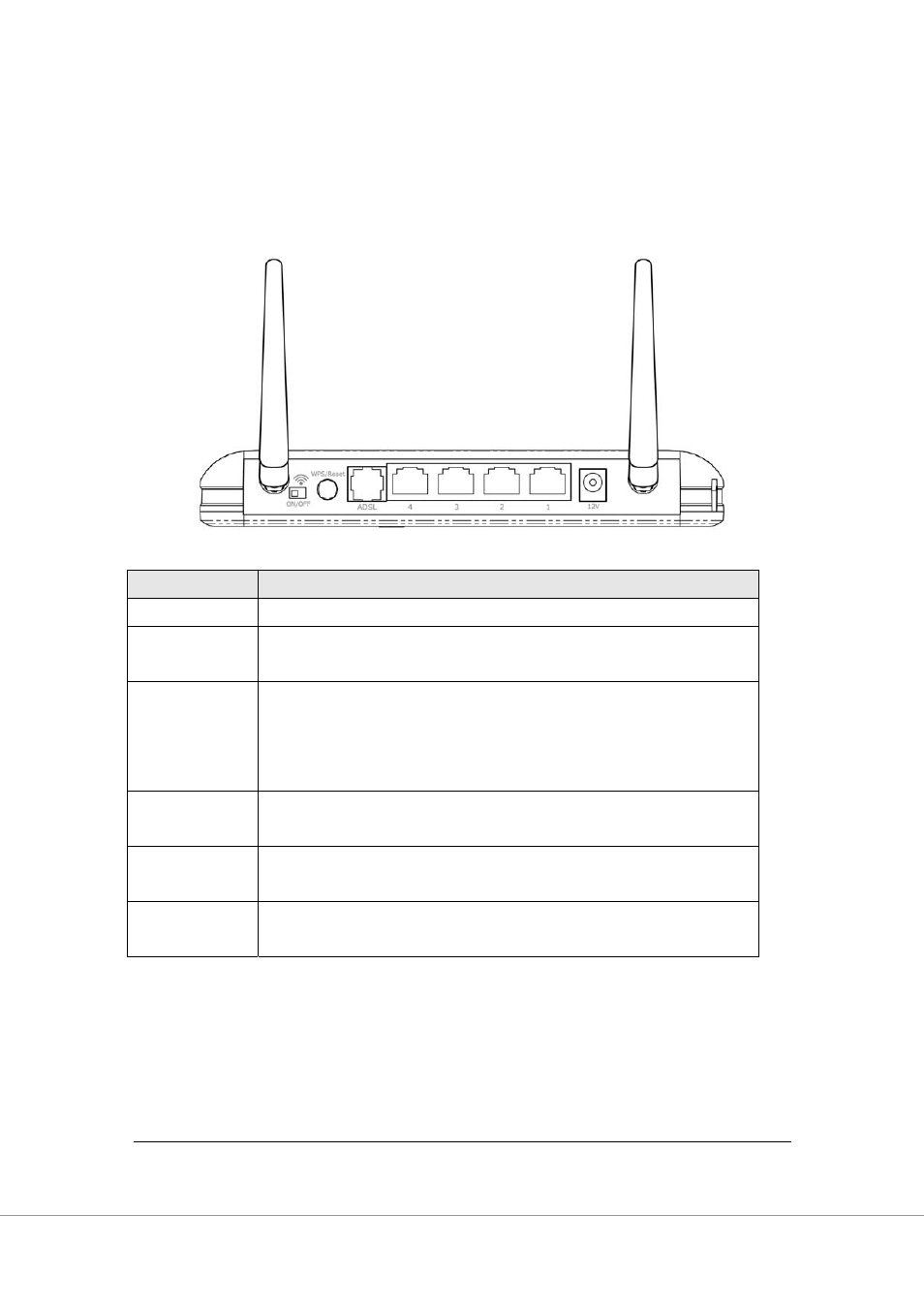

1.4.1. Rear Panel

Item Name

Description

Antenna A/B

These antennas are 3dBi dipole antennas.

Radio

ON/OFF

Switch the button to activate or deactivate the wireless

functions.

Reset / WPS

Reset the router to factory default settings (clear all settings)

or start WPS function. Press this button and hold for 10

seconds to restore all settings to factory defaults, and press

this button for less than 5 seconds to start WPS function.

1 - 4

The router’s 4 LAN ports are where you connect your LAN’s

PCs, printer servers, hubs and switches etc.

ADSL

Connect the supplied RJ-11 telephone line to this port and

your ADSL/telephone network.

Power

Please plug the power adapter attached with the ADSL

Router to the power jack. The power adapter is 12VDC, 1A.

1.4.2. Front LEDs

On the router’s front panel there are LED lights that inform you of the router’s

current status. Below is an explanation of each LED and its description.
