Startup
38
9.2 Starting the XDF
The XDF is started, stopped and controlled with Liebert’s iCOM controller. Figure 28 shows the
iCOM keypad.

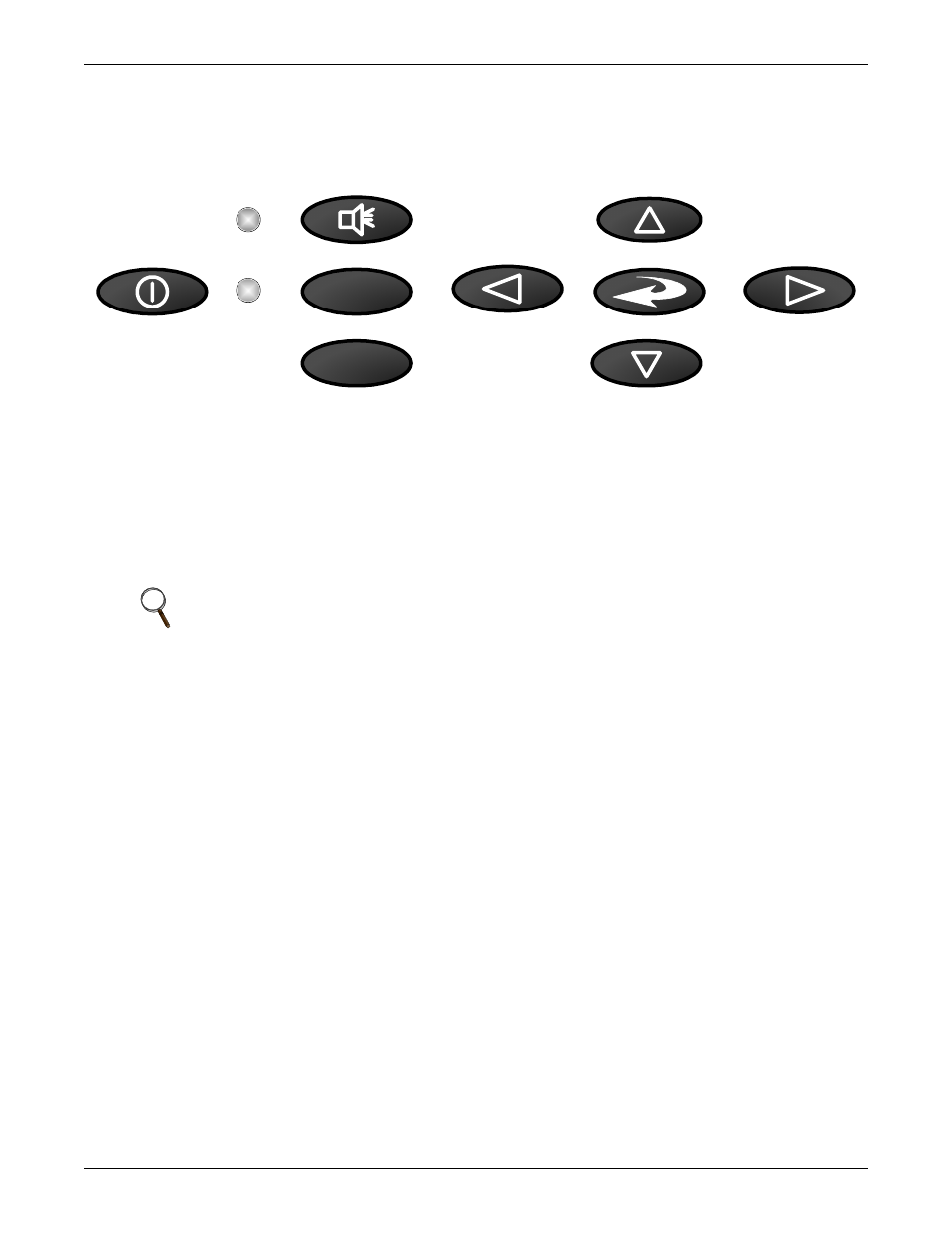

Figure 28 iCOM controller keys
To start the XDF:
1. Press the On/Off key on the iCOM controller.
2. Confirm internal airflow: Inside enclosure, (evaporator fan discharge).
3. Confirm cooling air begins circulating.
4. Power up the UPS (if provided).
5. Close the XDF’s doors, if open.
NOTE
Control requires 30-60 seconds to boot up after the 120V power is supplied.
ESC
?
On/Off Key
Escape Key Down Arrow Key
Up Arrow Key
Left Arrow Key Right Arrow Key Enter Key
Alarm Key
Help Key
