Product Description
6

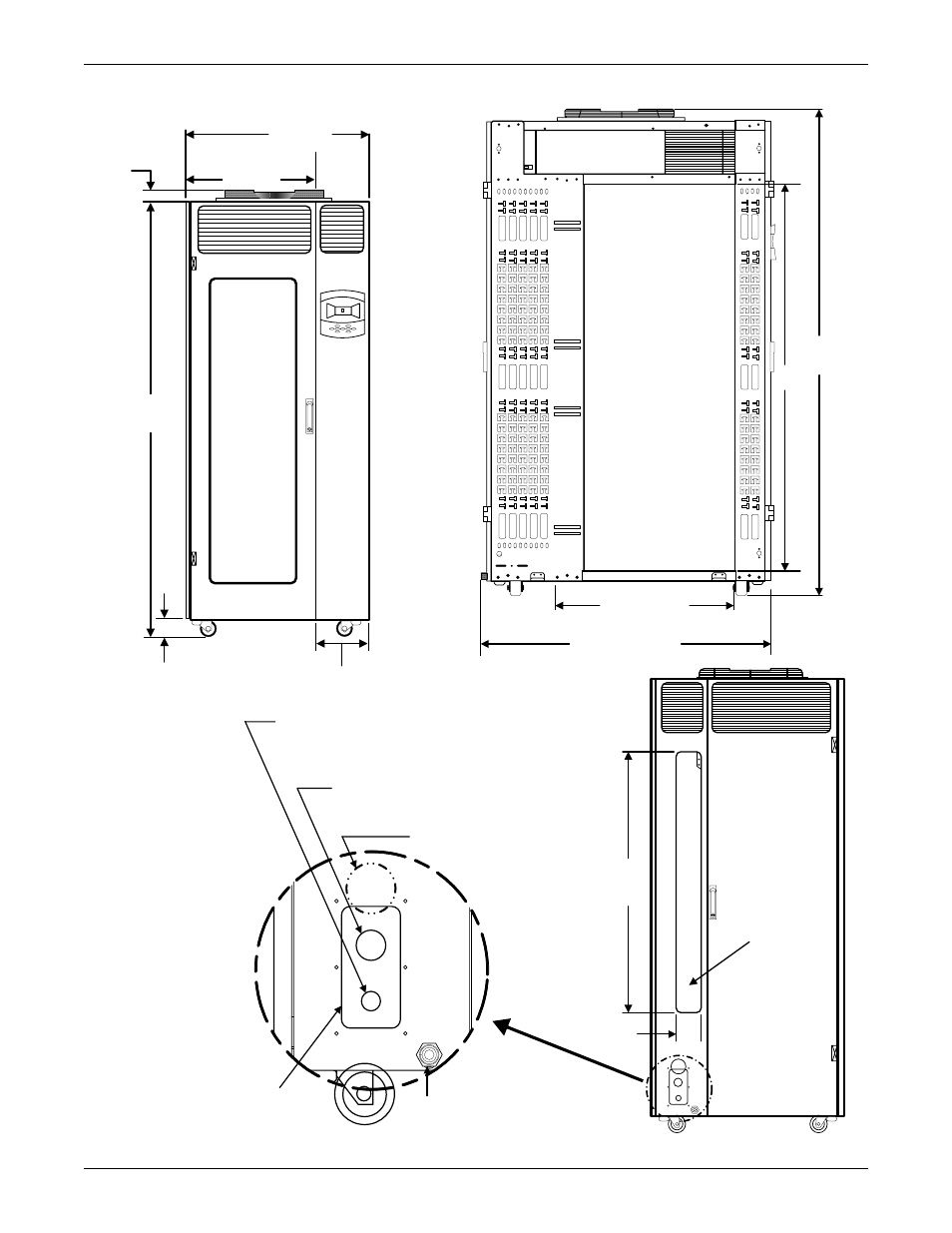

Figure 4 Dimensional data, self-contained, air cooled model
36U
82-1/4"
(2089mm)
LEFT SIDE
49-1/2” (1257mm)
24-3/8" to 32-11/32
(620-821mm)
mounting depth
79-3/4"
(2026mm)
2-5/8"
(68mm)
FRONT
Rack Section
24-1/8"
(613mm)
Control
Side
Cooling Section
9-5/16" (252mm)
34-1/8"
(867mm)
2-1/2"
(64mm)
Condensate Drain
Connection
DETAIL A
Capped Service
Gauge Access
3-Phase Power Cord
Entrance ; factory-supplied,
10' (3m) NEMA L21-30P
Single-Phase Power Cord
Entrance ; factory-supplied,
10' (3m) NEMA 5-15P
Cover
Plate
Backup
Ventilation
Air Outlet
45-3/4”
(1162mm)
4-1/2”
(114mm)
Detail
Area
“A” REAR VIEW
