XDF Components
14
3.2.2 Drycooler Loop
The water/glycol cooled XDF model requires an external supply of coolant, either water or glycol, to
remove heat extracted from the XDF.
Contact the factory for drycooler requirements when connecting multiple XDF units. For information
on setting up a drycooler system, contact your local Liebert representative.

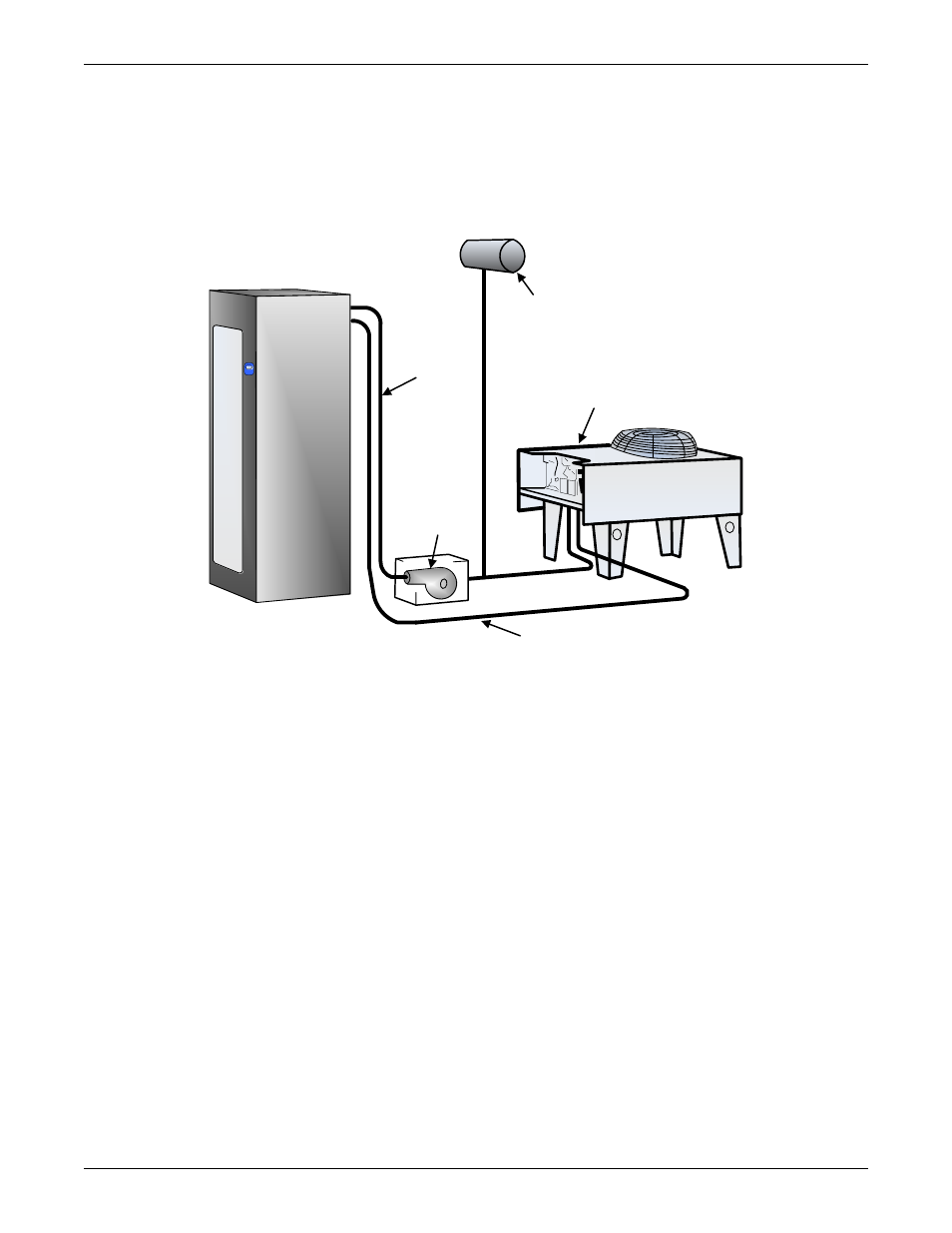

Figure 11 Water/glycol cooled general arrangement with drycooler as coolant source
Return Line
Supply
Line
Expansion Tank
(install at highest
point in system)
Drycooler
Pump
XDF
Water/Glycol
Cooled
