Product Description
8

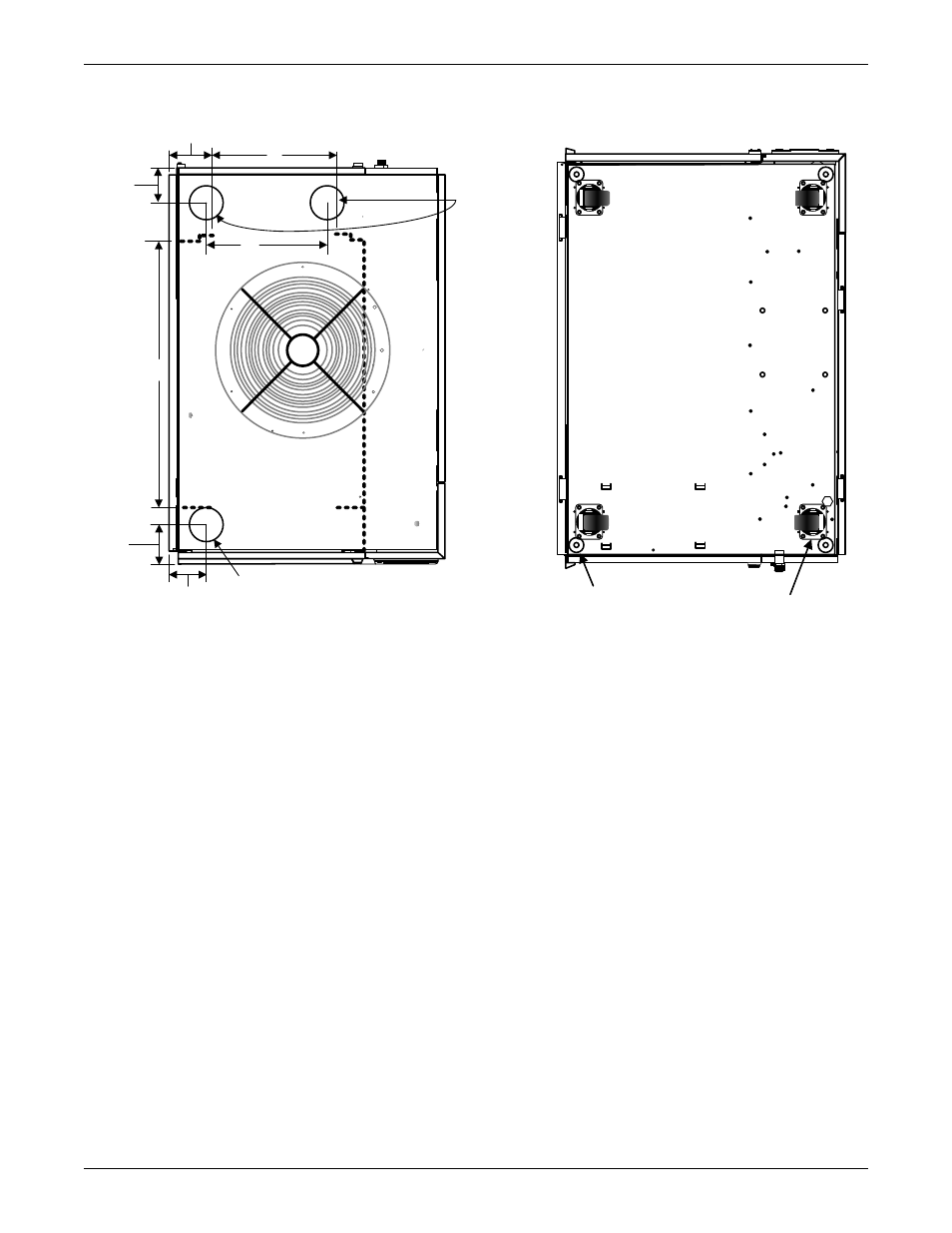

Figure 6 Dimensional data, all models—top, bottom and cable entry cutouts
Caster, 1 of 4
Stabilizing Foot,
1 of 4
A
B
15"
(381mm)
4-3/8"
(112mm)
4-1/2"
(114mm)
Cable
Entry
Cutouts
Cable Entry Cutout
4-1/2"
(114mm)
4"
(102mm)
Front
TOP VIEW
BOTTOM VIEW
Front
A - Rack-Mount Width
EIA Nominal: 19" (483mm)
Inside Dimension: 17-13/16 (452)
B - Adjustable Mounting Depth
Minimum: 24" (620mm)
Maximum: 32-11/32 (821)
Self-contained, air cooled model shown; water cooled unit
dimensions are identical; water cooled unit does not have
condenser fan.
