3-4 REASSEMBLY PROCEDURES (DIFFERENCE)

(22) THROTTLE BODY

(a) Replace the gasket of insulator with a new one and mount the insulator on the cylinder head

intake side .

(b) Mount the throttle body keeping the wire harness plugged into the throttle body .

Re-connect the fuel pump pulse line from the throttle body . Leaving the wire harness plugged
into the throttle body, re-connect the EFI wire harness to the engine . Connect the harness
ground (black) to the top of the crankcase .
Connect the engine temperature sensor (yellow) to the back throttle bracket mounting hole on
top of the throttle bracket . Connect the low oil sensor lead (orange) and the power generation
lead (red) to the harness .

(26) FUEL TANK

(1) Connect the fuel pipe and fix it with a clamp .

(2) Connect the fuel pressure return pipe and fix it with a clamp .

(3) Mount the fuel tank on the crankcase .

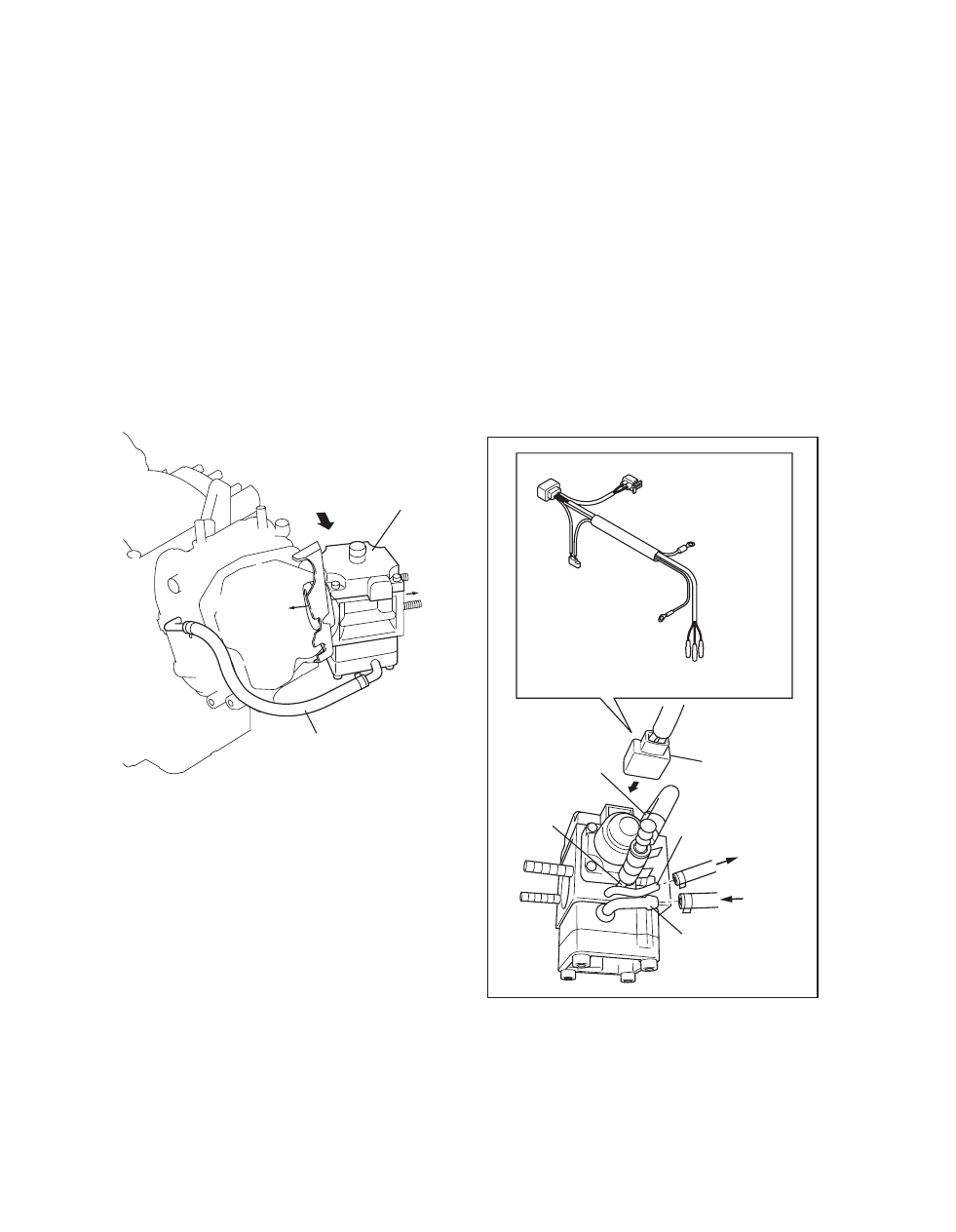

Pulse

Air

cleaner

side

A

VIEW

A

THROTTLE BODY

Wire harness

Fuel

injection

Ignition coil

ECU

Injection

Yellow:

Speed control

bracket

Black:

(Earth wire)

Red:

Power coil

Black:

Stop switch

Orange:

Oil sensor

Inlet fuel

Return to

fuel tank

Return

Inlet to

fuel pump

Outlet

injection

Engine

side
