TENSIONER
SPRING
(TENSIONER)
CHAIN
PIN(TENSIONER)
PIN(CAMSHAFT)
CAMSHAFT
CHAIN
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
Fig. 5-42b

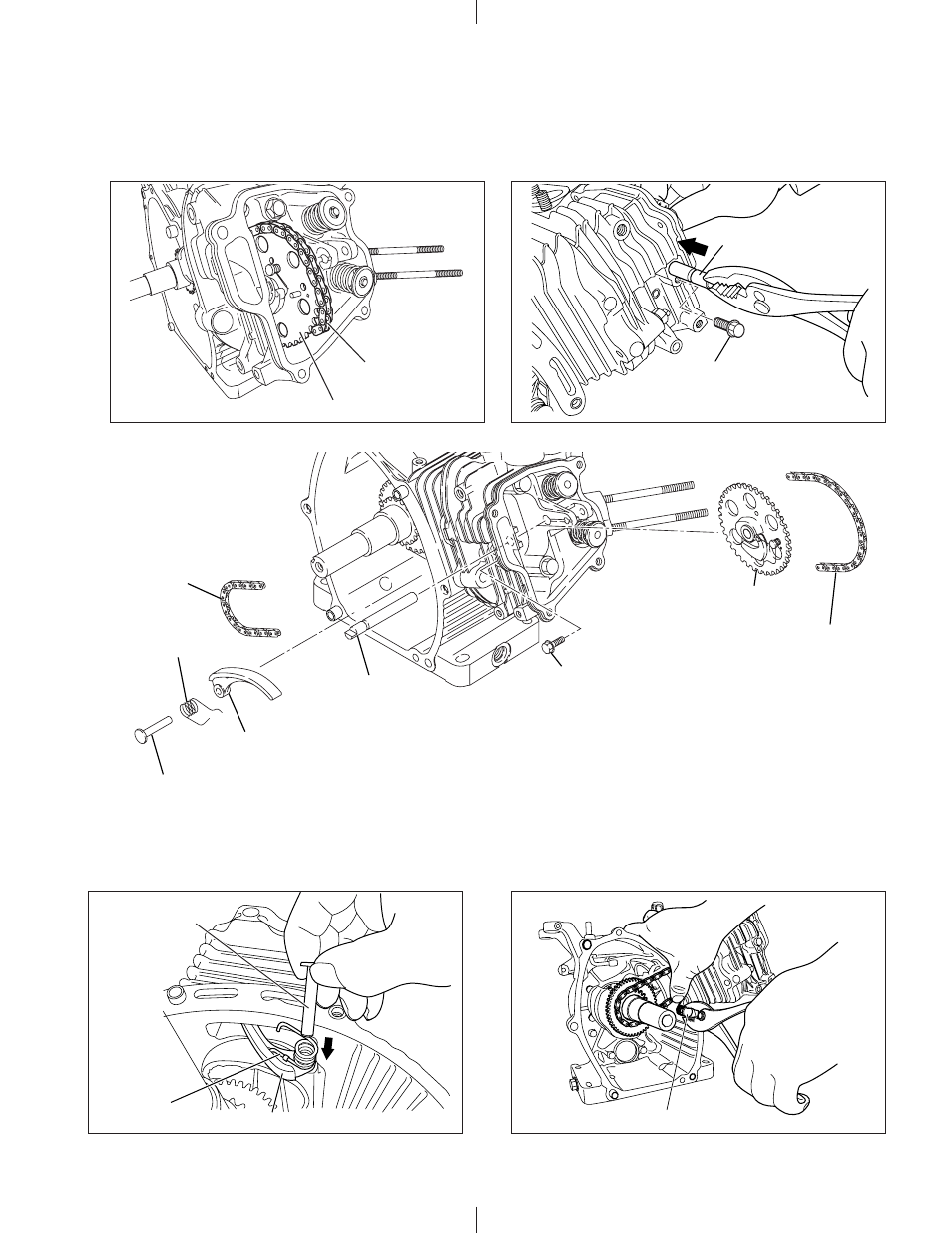

(10) MOUNTING THE CAMSHAFT ON THE CYLINDER HEAD
Mount the camshaft on the cylinder head by inserting the pin (camshaft) through the head.
Fix the bolt to prevent the pin (camshaft) from coming out.
TENSIONER
PIN
(TENSIONER)
SPRING
(TENSIONER)
PIN (TENSIONER)
Fig. 5-41b
Fig. 5-42a
(11) MOUNTING THE TENSIONER
M6 x 12 BOLT : 1 pc.
Bolt used to prevent the
pin (camshaft) from coming out
PIN (CAMSHAFT)
CAMSHAFT
CHAIN
