Subaru Robin EX13 - Manual (Page 61)

- 58 -
PILOT OUTLET
BYPASS
PILOT AIR JET
CHOKE VALVE
AIR INTAKE PORT
MAIN AIR JET
MAIN NOZZLE
FLOAT CHAMBER
PILOT JET
FLOAT
MAIN JET
FUEL
NEEDLE
VALVE
FLOAT
Fig. 12-2
Fig. 12-1

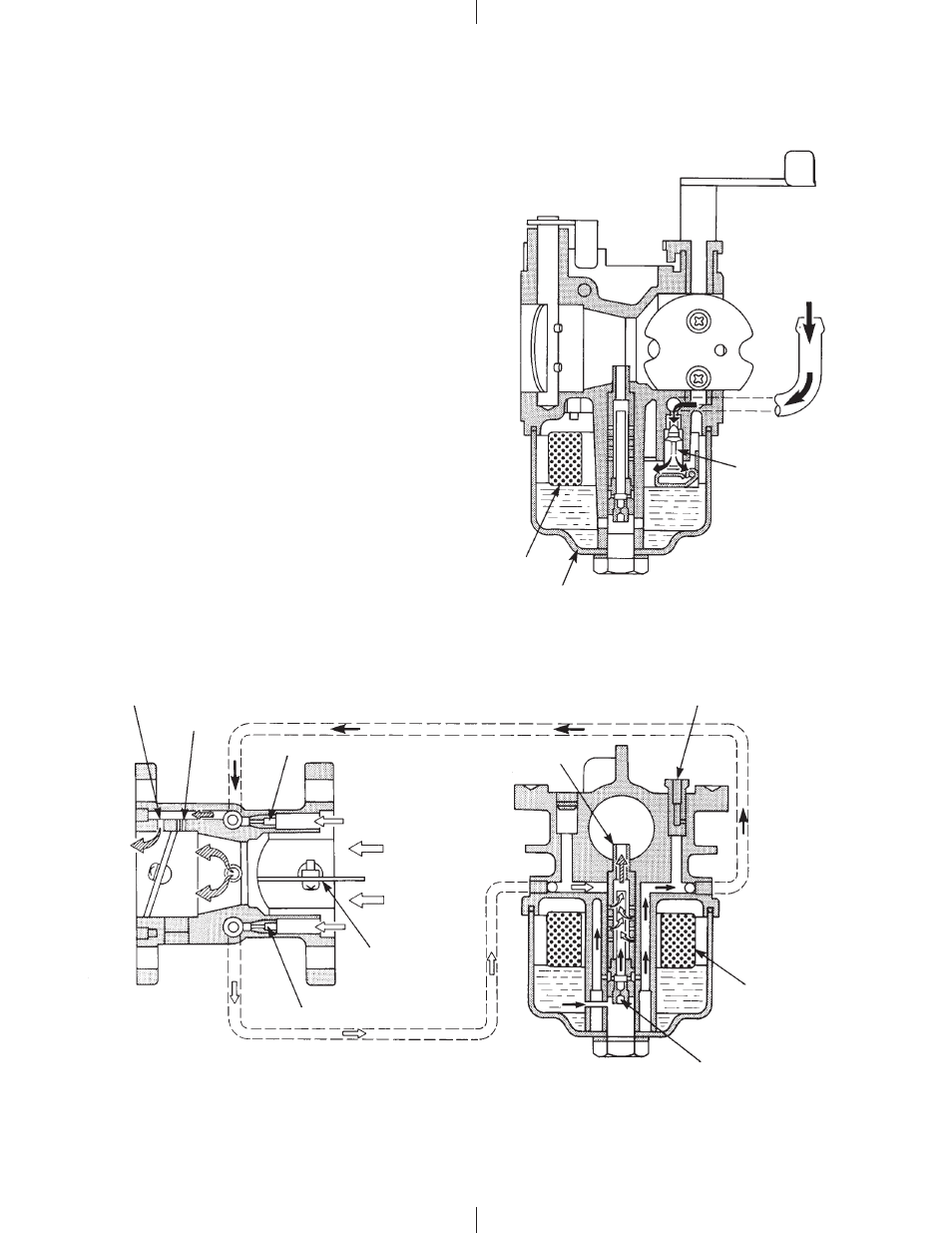

FUEL SYSTEM OUTLINE
