- 43 -

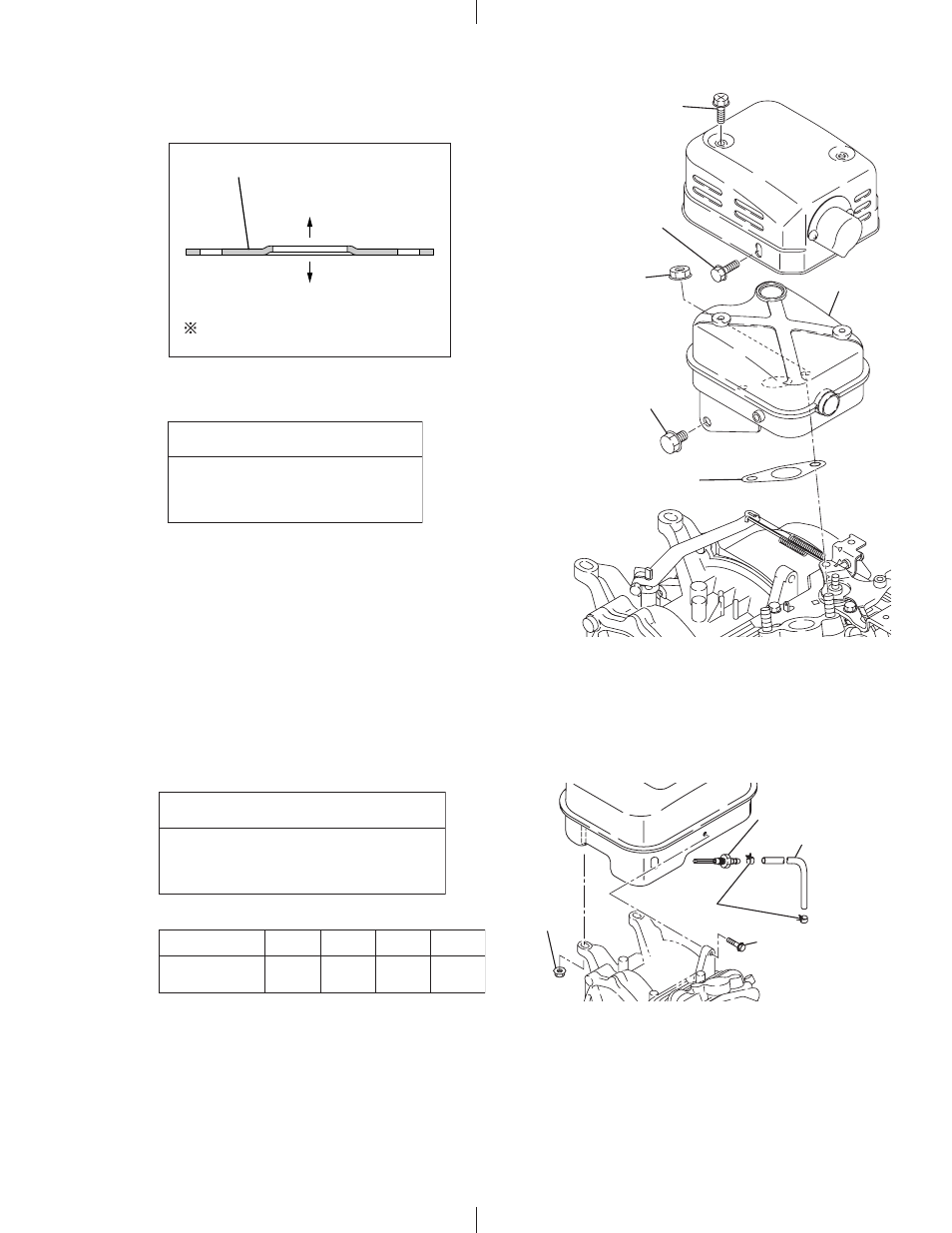

(25) MUFFLER
(1) Mount the muffler and the gasket on the cylinder head.
(2) Mount the muffler cover on the muffler.
M6 ✕ 8 mm flange bolt : 1 pc.
M6 ✕ 10 mm tapping bolt : 2 pcs.
NOTE : Be sure to remove any tape or cloth used
to cover the exhaust port when the engine
was disassembled.
M8 ✕ 12 mm bolt : 1 pc.
M8 nut : 2 pcs.
(26) FUEL TANK
(1) Mount the fuel strainer to the fuel tank.
MUFFLER SIDE
(RIGHT SIDE)
GASKET
(Attention to the wrong side and right side)
CYLINDER SIDE
(WRONG SIDE)
Take utmost care not to cut your
hand with the muffler gasket
Tightening torque
18.0 - 22.0 N m
( 180 - 220 kgf cm)
( 13.0 - 15.9 ft lb.)
Model EX13 EX17 EX21 EX27
Fuel pipe length
mm(in.)
145(5.7) 150(5.9) 155(6.1) 195(7.7)
Fig. 5-59a
FUEL
STRAINER
FUEL PIPE
HOSE
CLAMP
M6 x 25 BOLT : 1pc.
(EX13, 17, 25)
M8 x 25 BOLT : 2pcs.
(EX27)
M6 NUT
: 2pcs.
Fig. 5-59b
Tightening torque for fuel strainer
3.0 - 4.0 N m
( 30 - 40 kgf cm)
( 2.2 - 2.9 ft lb.)
(2) Connect the fuel pipe and fix it with a clamp.
NOTE : Make sure the fuel pipe is located on the boss,
as shown in the illustration, in order to prevent
the pipe from attaching to the flywheel.
In case the pipe is routed improperly, the pipe might
be hit by the flywheel and will be damaged.
M6 x 10
TAPPING BOLT : 2 pcs.
MUFFLER
GASKET
(Attention to the wrong
side and right side)
M6 x 8
FRANGE BOLT : 1 pc.
M8 x 12 BOLT : 1 pc.
M8 NUT : 2 pcs.
