Subaru Robin EX13 User Manual

Page 29

- 26 -

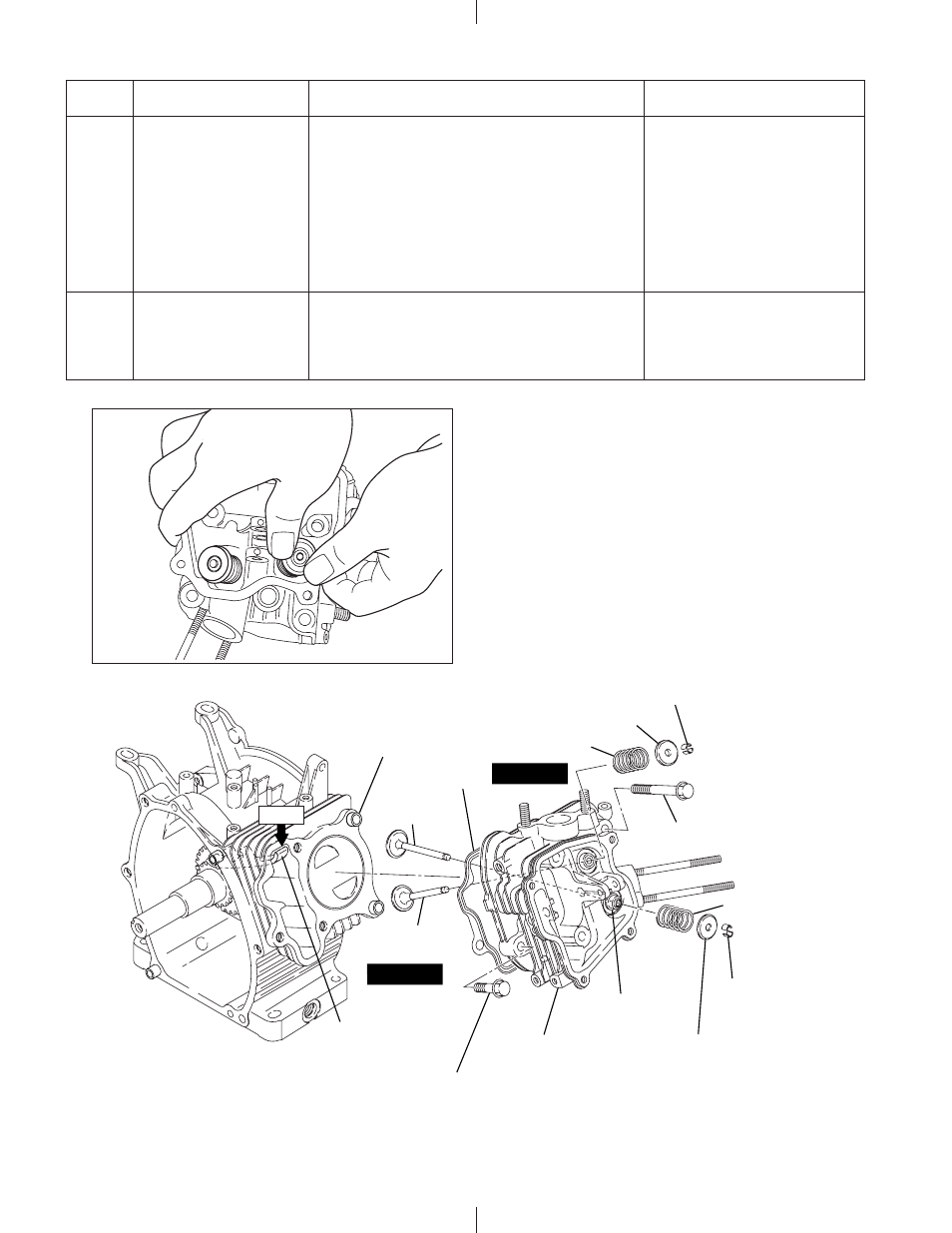

Fig.5-20

Fig.5-21

Step

Parts to remove

Remarks and procedures

Fasteners

Cylinder head,
Chain guide

(1) Remove the cylinder head from the

crankcase.

(2) Remove the cylinder head gasket from the

cylinder head. Take care not to lose the
pipe knocks.

(3) Remove the chain guide from the top side

of the crankcase.
(If the chain guide is removed from the inner
side of the crankcase, it might be damaged.)

12 mm box spanner

M8 × 68mm : 4 pcs.
M8 × 35mm : 1 pc.

Intake and exhaust

valves

(1) Remove the collet valve from the

spring retainer. (See Fig. 5-21)

(2) Remove the intake valve and the exhaust

valve.

M8 x 35 BOLT : 1 pc.
(This bolt is same as the
main bearing cover bolt).

STEP 23

STEP 24

PIPE KNOCK

GASKET

CYLINDER HEAD

M8 x 68 BOLT : 4 pcs.

EXHAUST
VALVE

INTAKE
VALVE

VALVE SPRING

COLLET VALVE

SPRING RETAINER

STEM SEAL

CHAINGUIDE

Push
